Start › Mini excavators › Takeuchi › TB125

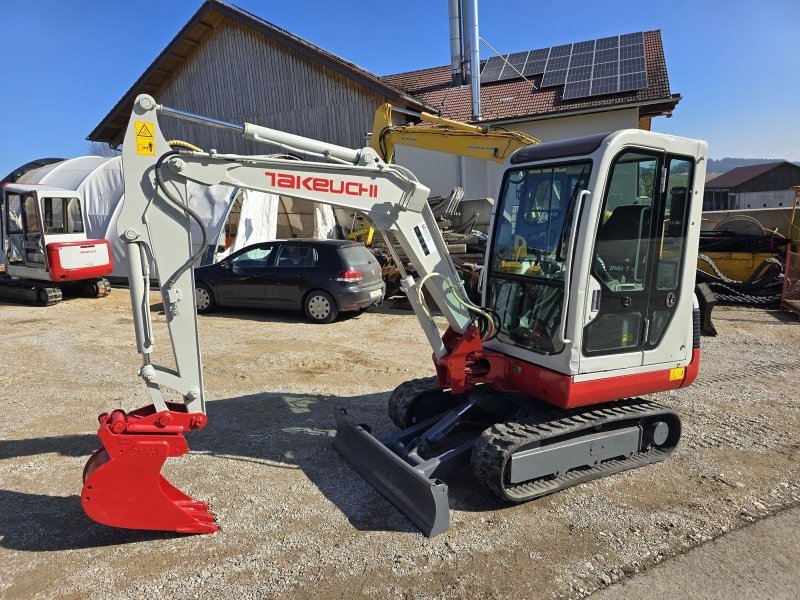

Takeuchi TB125

Series: Takeuchi Mini Excavator

Source: https://www.technikboerse.at/gebraucht/minibagger-759 techn

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Takeuchi TB125 is a model in the Takeuchi Mini Excavator series. The engine delivers 22.8 hp (16.8 kW), has 3 cylinders, with a displacement of 1,330.6 cm³. Torque is 84.1 Nm. Rated speed is 2,300 rpm. The unladen weight is 2,796.4 kg. Ground clearance is 301.8 mm. The tank holds 50.7 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 58.3 l/min. The hydraulic tank holds 74.2 litres. Working pressure is 205.9 bar. The cooling system holds 3.8 litres. The oil fill is 3.8 litres. The electrical system runs on 12 V. The engine fitted is the 3TNV82-QTB1. The Takeuchi Mini Excavator series covers 15 models. Rated output within it ranges from 8.1 to 33.5 hp; the TB125 sits in the middle of that range with 22.8 hp. Its immediate neighbours are the TB015 below it with 16.2 hp and the TB28FR above it with 22.9 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV82-QTB1correct
Power22.8 hp (16.8 kW)correct
Rated speed2,300 rpmcorrect
Torque84.1correct
Speed at max. torque1,500 rpmcorrect
Cylinders3correct
Displacement1,330.6 cm³correct
Coolant capacity3.8 lcorrect
Engine oil capacity3.8 lcorrect

Dimensions and weights

Ground clearance301.8correct
Unladen weight2,796.4 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow58.3 l/mincorrect
Hydraulic oil capacity74.2 lcorrect
Hydraulic pressure205.9 barcorrect
Fuel tank capacity50.7 lcorrect

Other data

Height2,438.4correct

Where this model stands

Power-to-weight ratio: 6 kW/t (17 kW / 2.8 t)

Stronger than 41% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB125 have?

The Takeuchi TB125 delivers 22.8 hp.

How much does the Takeuchi TB125 weigh?

The unladen weight is 2,796 kg.

What engine does the Takeuchi TB125 have?

3 cylinders, 1,331 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
