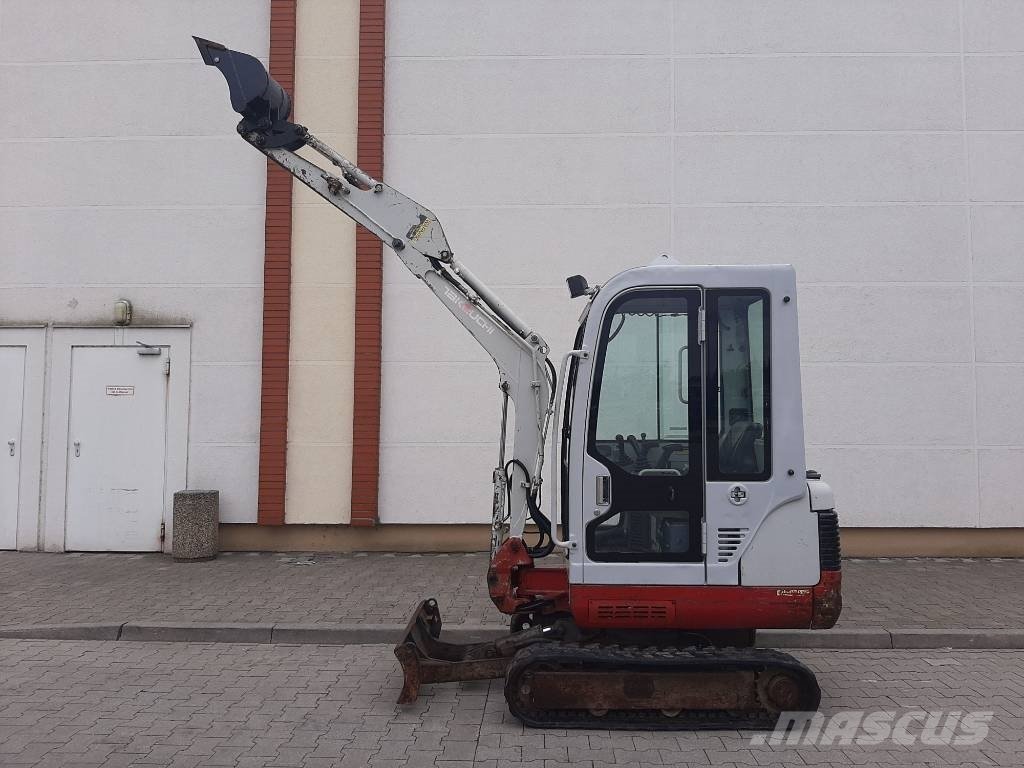

Takeuchi TB016

The Takeuchi Mini Excavator series from Takeuchi includes the TB016. The engine delivers 13.7 hp (10.1 kW), has 3 cylinders, with a displacement of 853.8 cm³. Torque is 51.5 Nm. Rated speed is 2,200 rpm. The unladen weight is 1,598.5 kg. Ground clearance is 207.3 mm. The tank holds 20.8 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 32.9 l/min. The hydraulic tank holds 33.7 litres. Working pressure is 196.1 bar. The cooling system holds 3.4 litres. The oil fill is 3 litres. The electrical system runs on 12 V. The engine fitted is the 3TNV70-STB. The Takeuchi Mini Excavator series covers 15 models. Rated output within it ranges from 8.1 to 33.5 hp; the TB016 sits in the lower part of that range with 13.7 hp. Its immediate neighbours are the TB014 below it with 12.2 hp and the TB219 above it with 15.7 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.
