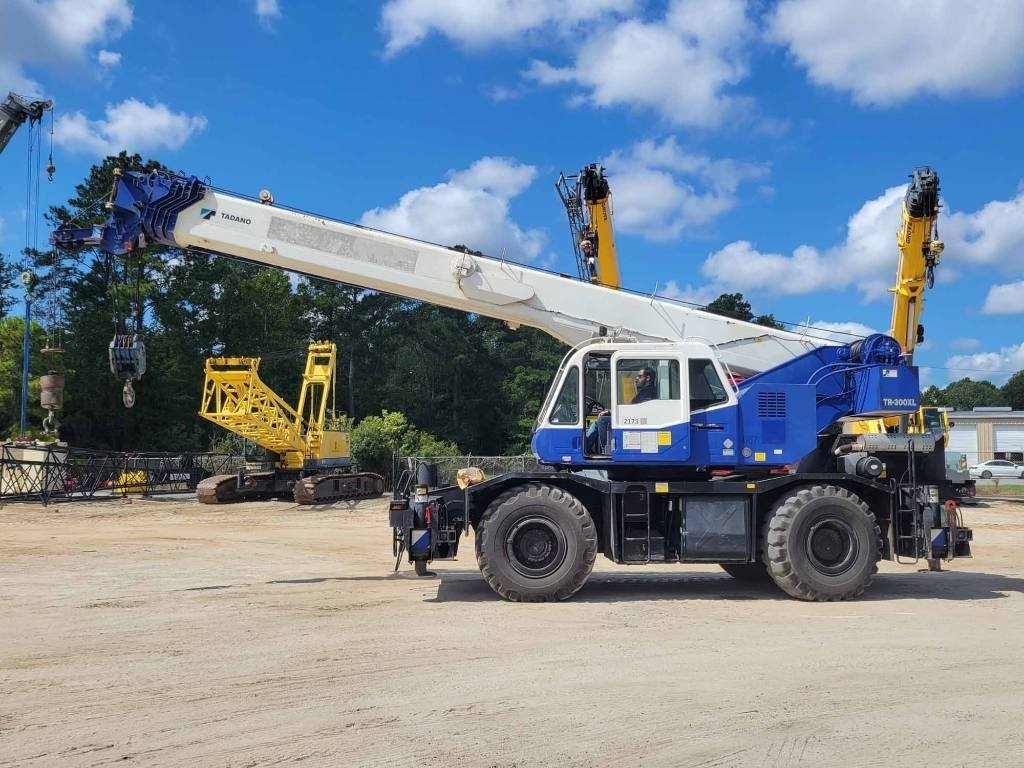

Tadano TR300XL-4
Series: Tadano Rough Terrain Crane
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tadano GR and TR: how capacity and lineage hide inside the crane name
On Tadano's rough terrain cranes, the number after the prefix codes the maximum lifting capacity in tonnes — a GR-300XL, for instance, is the 30-tonne class. The 42 models recorded in SpecCodex span 12,341 to 160,000 kg of vehicle weight, reflecting the range from compact machines up to the largest rough terrain cranes rated at up to 160 tonnes.
Read on 3 more paragraphs
Two prefixes coexist: "TR" is the older series designation, "GR" the current global line. According to Tadano's own technical spec sheets, numerous TR models were directly renamed into GR models (for example TR-800XXL-4 into a corresponding GR model) — GR is therefore mostly a successor name rather than a parallel one.
Trailing suffixes such as XL, EX or E denote the equipment level and boom configuration. In the SpecCodex database, engine output for the recorded vehicles ranges from 100 to 213 kW, displacement from 3,900 to 12,503 cm³, and torque from 480 to 1,196 Nm — in all 18 fully recorded cases these are 6-cylinder engines.
When buying used, check the condition of the boom slide pads and outrigger cylinders, and compare the load chart against the actual boom length in use — the model number alone says nothing about achievable working radius. Models like TR300E, GR500XL and GR750XL illustrate the spread from older to current technology.
Sources: Kennwerte der Modelle Tadano Rough Terrain Crane, – Rough Terrain Cranes, Tadano Global, – Tadano GR Series Used Buyer Guide, everycar.jp, – Tadano Rough Terrain Crane Modellübersicht (TR/GR), RitchieSpecs
Technical data
Engine
| Engine model | QSB5.9-30TAAcorrect |
|---|---|
| Power | 175.4 hp (129 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 718.6correct |
| Speed at max. torque | 1,500 rpmcorrect |
| Displacement | 5,899.3 cm³correct |
| Aspiration | turbocharged + aftercooledcorrect |
| Coolant capacity | 9.8 lcorrect |
| Engine oil capacity | 14.4 lcorrect |
Dimensions and weights
| Unladen weight | 27,049.1 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | Electronically controlled full automatic gearbox transmissioncorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Tyre size | 20.5-25 24PRcorrect |
Working data
| Hydraulic oil capacity | 380.1 lcorrect |
|---|---|
| Fuel tank capacity | 300.2 lcorrect |
Other data
| System voltage | 24 Vcorrect |
|---|
Where this model stands
Power-to-weight ratio: 4.8 kW/t (129 kW / 27 t)
Stronger than 23% of the mobile & rough terrain cranes in the register — out of 575 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Tadano TR300XL-4 have?
The Tadano TR300XL-4 delivers 175 hp.
How much does the Tadano TR300XL-4 weigh?
The unladen weight is 27,049 kg.
What engine does the Tadano TR300XL-4 have?
5,899 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
