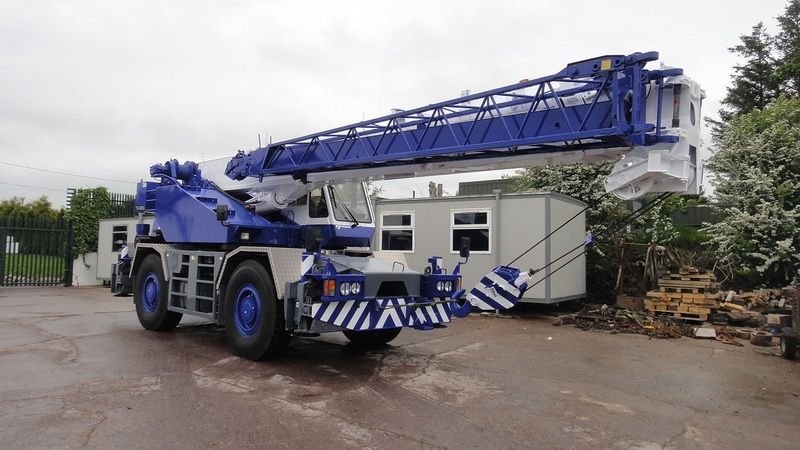

Tadano TR300EX

Series: Tadano Rough Terrain Crane

Source: https://www.truck1.eu/construction-machinery/mobile-cranes/t

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tadano TR300EX is a model in the Tadano Rough Terrain Crane series. The engine delivers 215 hp (158.2 kW), has 6 cylinders, with a displacement of 7,546.2 cm³. The engine comes from Mitsubishi. Torque is 637.5 Nm. Rated speed is 2,800 rpm. The unladen weight is 27,100 kg. The wheelbase measures 3,450.1 mm. The tank holds 300.2 litres. The gearbox has 4 forward gears. There are also 1 reverse gears. Maximum torque is reached at 1,600 rpm. The hydraulic tank holds 410.3 litres. The electrical system runs on 24 V. The engine fitted is the 6D16T. Tyre size: 16,00 x 25. The Tadano Rough Terrain Crane series covers 42 models. Rated output within it ranges from 136.9 to 290.1 hp; the TR300EX sits in the middle of that range with 215 hp. Its immediate neighbours are the TR600EXL below it with 214.8 hp and the GR350XL-2 above it with 217.6 hp. 111 Tadano models across 5 series are on record. The model is listed under Cranes & access platforms. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine makeMitsubishicorrect
Engine model6D16Tcorrect
Power215 hp (158.2 kW)correct
Rated speed2,800 rpmcorrect
Torque637.5correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement7,546.2 cm³correct

Dimensions and weights

Wheelbase3,450.1correct
Unladen weight27,100 kgcorrect

Drivetrain and chassis

Gearbox typeFull powershift transmissioncorrect
Forward gears4correct
Reverse gears1correct
Tyre size16.00 x 25correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity410.3 lcorrect
Fuel tank capacity300.2 lcorrect

Where this model stands

Power-to-weight ratio: 5.8 kW/t (158 kW / 27.1 t)

Stronger than 32% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tadano TR300EX have?

The Tadano TR300EX delivers 215 hp.

How much does the Tadano TR300EX weigh?

The unladen weight is 27,100 kg.

What engine does the Tadano TR300EX have?

6 cylinders, 7,546 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
