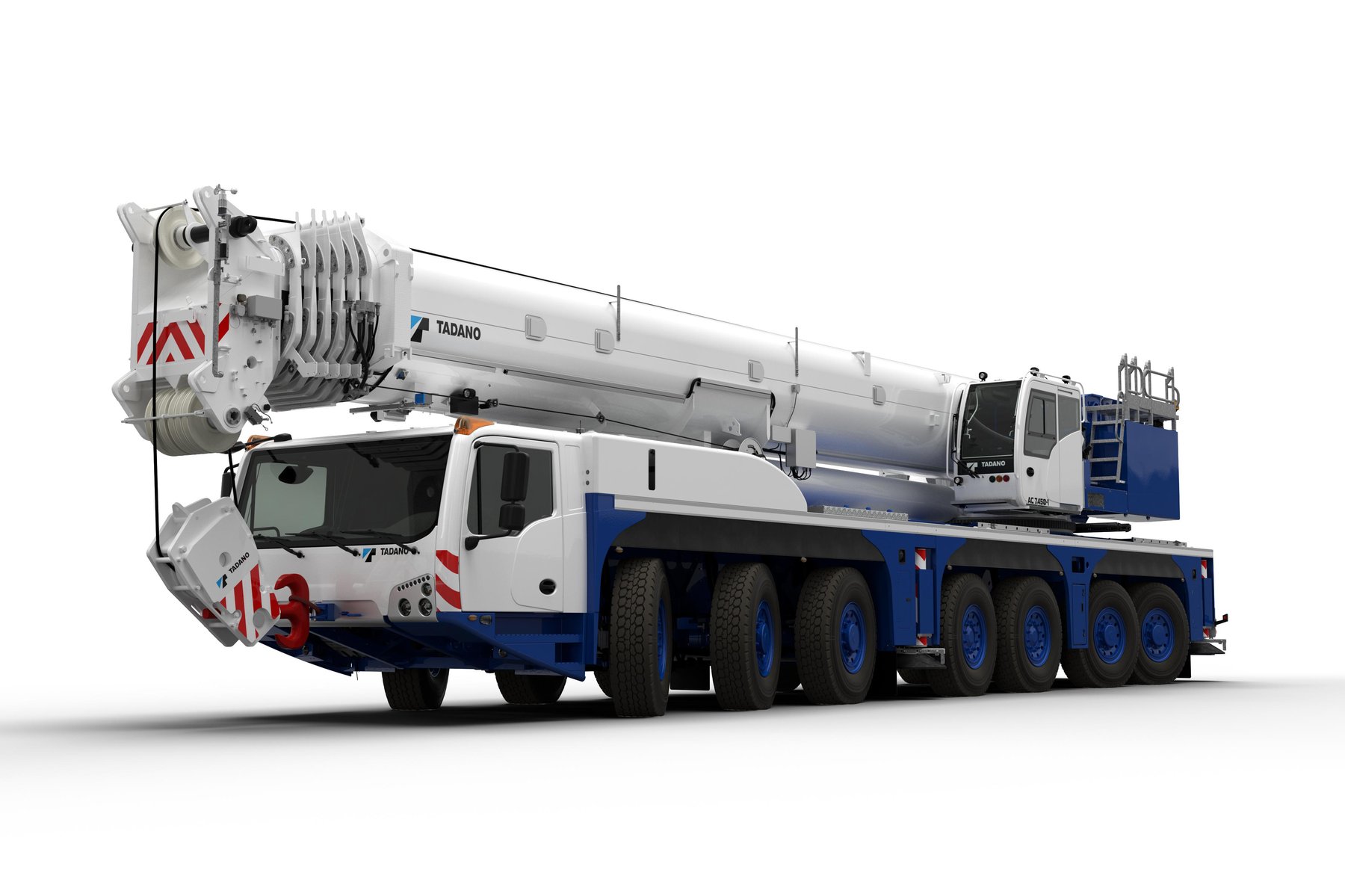

Tadano AC6.300-1
Built: 2023-2024 · Series: AC
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tadano AC – all-terrain cranes on a dedicated carrier: from the AC 3.045-1 City to the AC 7.450-1, 260 to 460 kW, six-cylinder engines, 3- to 7-axle carriers from 22 to 84 tonnes
The AC designation stands for Tadano's all-terrain cranes, built on their own road-legal carrier. They are produced at the former Faun plant in Lauf an der Pegnitz, which the Japanese crane maker Tadano took over in the 1990s and initially ran as Tadano Faun before the brand was unified to Tadano. The type logic is consistent throughout: the digit before the point gives the axle count, the number after it the maximum lifting capacity in tonnes – the AC 3.045-1 is a three-axle crane rated at 45 tonnes, the AC 7.450-1 a seven-axle crane rated at 450 tonnes. The suffix "City" marks compact urban cranes with a short wheelbase for tight site access, and "-1" the design generation.
Read on 3 more paragraphs
The register lists 14 versions with 260 to 460 kW from six-cylinder engines of 5,883 to 15,259 cm³, gross weights from 22,000 to 84,000 kg, lengths from 8,470 to 18,100 mm and widths from 2,400 to 3,000 mm.
All-terrain cranes such as the AC range bridge the gap between pure construction-site cranes and road cranes: they drive to the site on their own axles and then work off-road without additional rigging or escort vehicles. Alongside Liebherr and the Manitowoc group's brands, Tadano is one of the major suppliers in this class, with the AC 7.450 in the upper capacity league used for industrial assembly and wind turbine erection.
When buying used, carrier and superstructure operating hours should be checked separately, along with the condition of the telescopic boom, hydraulic cylinders and outriggers, the validity of the crane inspection under the applicable regulations, and the tyres and brakes of the multi-axle carrier; parts and inspection records run through the Tadano service network.
Sources: SpecCodex register, model data: Tadano AC, Tadano (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 15,569 cm³correct |
Dimensions and weights
| Wheelbase | 10,400 mmcorrect |
|---|---|
| Unladen weight | 71,750 kgcorrect |
| Gross vehicle weight | 72,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 85 km/hcorrect |
Frequently asked questions
How much does the Tadano AC6.300-1 weigh?
The unladen weight is 71,750 kg.
What is the gross vehicle weight of the Tadano AC6.300-1?
72,000 kg.
What engine does the Tadano AC6.300-1 have?
6 cylinders, 15,569 cm³ displacement.
How fast does the Tadano AC6.300-1 go?
Top speed is 85 km/h.
When was the Tadano AC6.300-1 built?
Production years: 2023-2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
