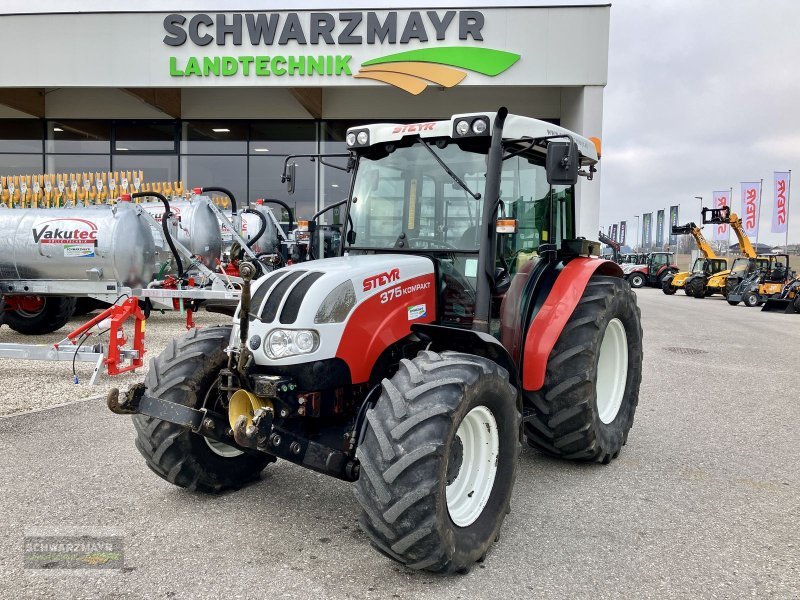

Steyr 375 Kompakt
Built: 2004–2008 · Series: Kompakt-Baureihe
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Steyr Kompakt series – compact tractors 360, 370, 375 and Kompakt 4075 ecotech from the CNH era, three- and four-cylinder diesels from 43 to 56 kW, some approved for rapeseed-oil-methyl-ester operation
The Kompakt series emerged after Steyr merged with Case IH and New Holland in 1996 to form today's CNH group; the 360, 370 and 375 Kompakt types and the later Kompakt 4075 ecotech reflect the ongoing development of this smaller Steyr line over several years. The three-digit types order the power class in ascending order, while the 4075 ecotech, with its four-digit designation and ecotech suffix, denotes a later, emissions-optimised generation. Within the CNH group, Steyr shares platforms and components with Case IH and New Holland while remaining a distinctly positioned brand.
Read on 3 more paragraphs
The register lists four versions here with 43.4 to 55.9 kW from three- and four-cylinder diesel engines with 2,931 to 3,400 cm³ displacement. Rated speed is 2,300 rpm, unladen weight ranges from 2,850 to 3,900 kg with lengths from 3,440 to 4,241 mm, widths from 1,923 to 2,300 mm and heights from 2,410 to 2,494 mm; lift capacity at the linkage reaches up to 4,400 kg. Some of the engines are approved to run on diesel or rapeseed oil methyl ester.
As compact all-round tractors, the series targeted smaller farms, municipalities and contractors needing manoeuvrability and a low centre of gravity for yard and grassland work, competing there with comparable compact classes from New Holland and Case IH.
When buying used, check the condition of the front-loader mounting and hydraulic couplings, the tightness of the lift cylinders, wear on the clutch and shuttle gearbox, and on the biodiesel-capable engines the condition of the injection system and fuel filters. Parts run through the CNH dealer network for Steyr, Case IH and New Holland.
Sources: SpecCodex register, model data: Steyr Kompakt-Baureihe, Steyr (CNH Industrial, Hersteller)
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 76 hp (55.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 299 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,931 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,440 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Height | 2,410 mmcorrect |
| Wheelbase | 2,065 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 2,950 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16R or 32V/16Rcorrect |
| Front tyres | 11.2 R 24 AScorrect |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 75 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 430/540 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.9 kW/t (56 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr 375 Kompakt have?
The Steyr 375 Kompakt delivers 76 hp.
How much does the Steyr 375 Kompakt weigh?
The unladen weight is 2,950 kg.
What engine does the Steyr 375 Kompakt have?
3 cylinders, 2,931 cm³ displacement, Diesel/RME.
How fast does the Steyr 375 Kompakt go?
Top speed is 30 km/h.
What are the dimensions of the Steyr 375 Kompakt?
3,440 mm × 2,300 mm × 2,410 mm.
When was the Steyr 375 Kompakt built?
Production years: 2004–2008.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
