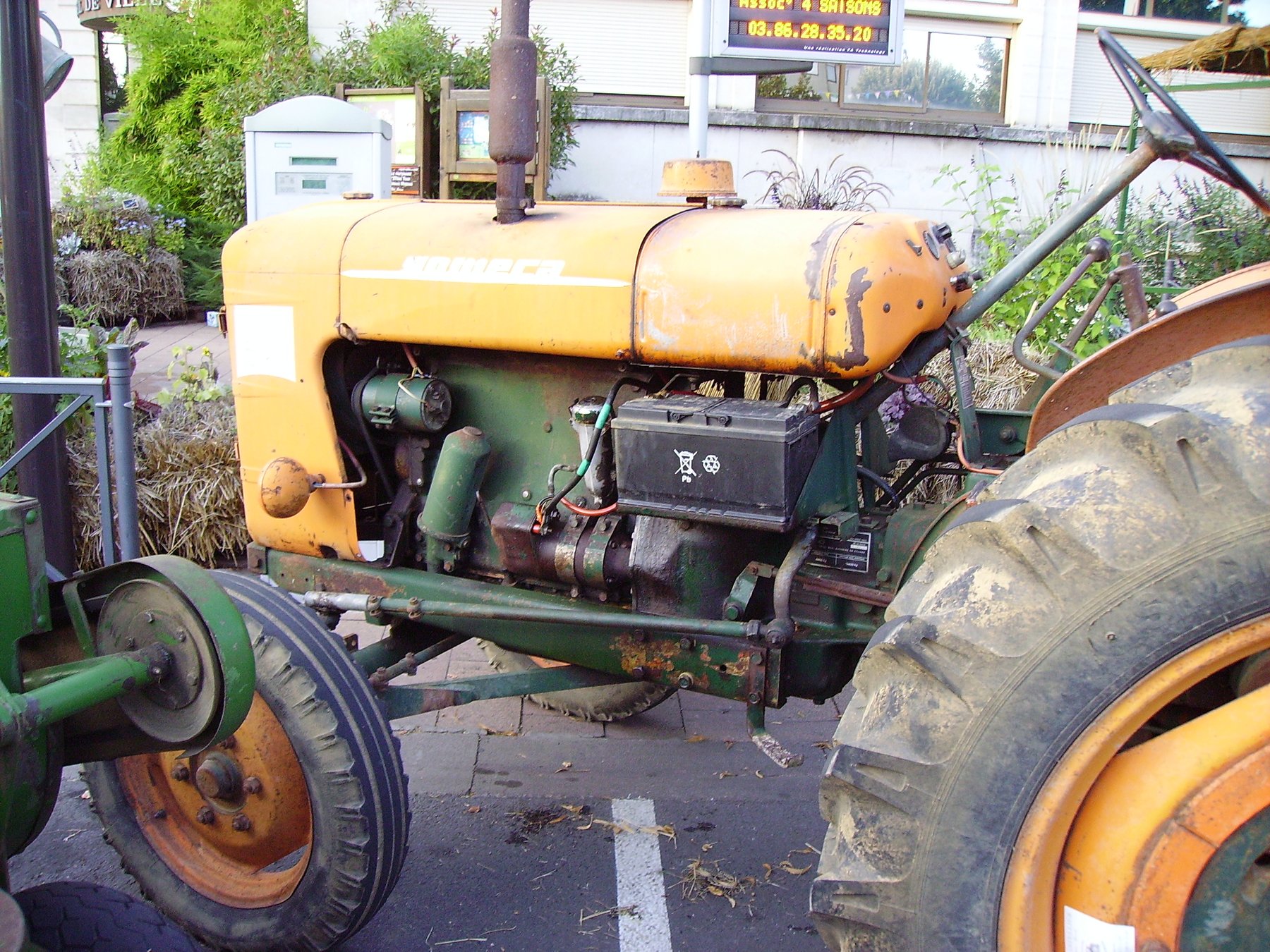

Someca 880-5 (TD)
Built: 1980–1983 · Series: 80 er - Serie
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Someca 580-980: the last generation before Fiatagri, from the 580 (TD) to the 980 (TD), 42.7 to 72.1 kW, three- to six-cylinder engines with water cooling
The 80 series was Someca's last major range marketed as an independent brand before the company was fully absorbed into the Fiatagri division in 1983. It too was based on Fiat designs, finished in Saint-Ouen for the French market and sold under the Someca name.
Read on 4 more paragraphs
The register lists 6 live models from the 580 (TD) to the 980 (TD), built between 1975 and 1983. Output ranges from 42.7 to 72.1 kW, weight from 2,335 to 3,845 kg, displacement from 2,750 to 5,178 cm3 across three-, four-, five- and six-cylinder engines.
The type designations match the 580-980 models sold in parallel under the Fiat badge — a fundamentally sturdy mid-range line with a growing engine offer, up to the five-cylinder fitted in the 880-5.
When this series ran out in 1983, independent marketing under the Someca name ended too; model development passed to Fiatagri from then on.
With operating weights of 2.3 to 3.8 tonnes, the 80 series spans the transition from Category I to Category II of the ISO 730 three-point linkage; lighter models such as the 580 and 680 are usually still Category I, the heavier 880 and 980 already Category II. When buying used, it is therefore worth matching the lower links and hooks actually fitted to the implements on hand before investing in new adapters. The category difference also affects the hydraulic lift capacity needed for heavy implements.
Sources: SpecCodex register, model data: Someca 80er-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 88 hp (64.7 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 296 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 4,583 cm³correct |
| Bore | 103 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,675 mmcorrect |
|---|---|
| Width | 1,950 mmcorrect |
| Height | 2,560 mmcorrect |
| Wheelbase | 2,451 mmcorrect |
| Ground clearance | 530 mmcorrect |
| Unladen weight | 3,845 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 R and 16 V/4 Rcorrect |
| Front tyres | 7.50-18 ASF (TD: 11.2-28 AS)correct |
| Rear tyres | 13.6-38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.8 kW/t (65 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Someca 880-5 (TD) have?
The Someca 880-5 (TD) delivers 88 hp.
How much does the Someca 880-5 (TD) weigh?
The unladen weight is 3,845 kg.
What engine does the Someca 880-5 (TD) have?
5 cylinders, 4,583 cm³ displacement, Diesel.
How fast does the Someca 880-5 (TD) go?
Top speed is 25 km/h.
What are the dimensions of the Someca 880-5 (TD)?
3,675 mm × 1,950 mm × 2,560 mm.
When was the Someca 880-5 (TD) built?
Production years: 1980–1983.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
