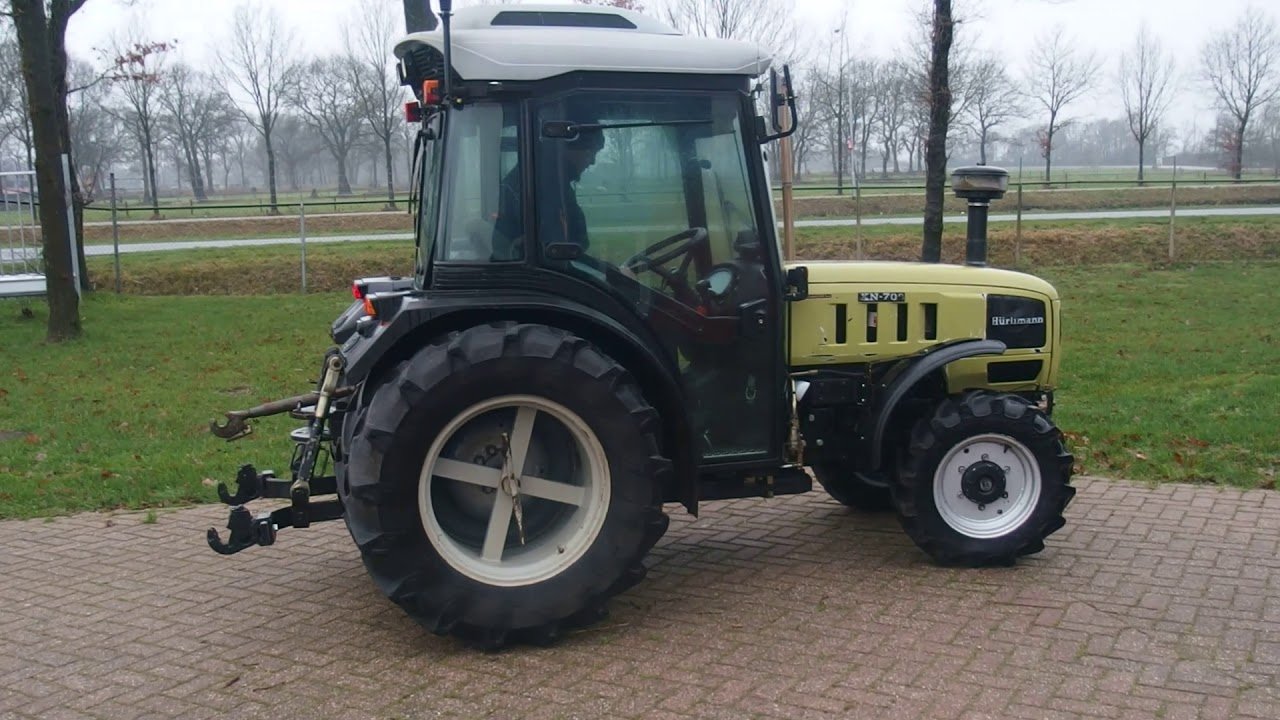

Sdf Hürlimann XN-709

Built: 1999–2003 · Series: XN-Baureihe

More machines from model year 1999

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The XN series from Sdf Hürlimann includes the XN-709. Production: 1999–2003. The engine delivers 88 hp (64.8 kW), has 4 cylinders, with a displacement of 4,000 cm³. Torque is 319 Nm. Rated speed is 2,350 rpm. The machine is 3,561 mm long, 1,290 mm wide and 2,110 mm high. The unladen weight is 2,740 kg. The wheelbase measures 2,056 mm. Ground clearance is 270 mm. Top speed is 40 km/h. Transmission: 45V/45R. The engine is water-cooled. Tyres: front 280/80 R 18 AS, rear 420/70 R 28 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,640 rpm. Construction: unit construction (no separate frame). The XN-Baureihe series covers 4 models. Rated output within it ranges from 60 to 88 hp; the XN-709 sits at the top of that range with 88 hp. Its immediate neighbours are the XN-708 below it with 80 hp. Unladen weight within it ranges from 2,350 to 2,740 kg; here the XN-709 sits at the top of that range with 2,740 kg. 18 Sdf Hürlimann models across 7 series are on record.

SDF Hürlimann XN-Baureihe – narrow field tractors from SDF's Treviglio plant: types XN-706 to XN-709, 3,000 to 4,000 cm³, 44.2 to 64.8 kW, overall width 1,290 mm throughout

The XN range lists Hürlimann tractors built by the Same Deutz-Fahr Group (SDF), which has run the Hürlimann brand since the 1990s and builds the tractors at its Treviglio plant in Italy. The type designations XN-706 to XN-709 follow SDF's internal model numbering; a notable feature of this range is the uniformly narrow overall width of 1,290 mm shared by all four recorded types.

Read on 3 more paragraphs

The register lists 4 versions with 44.2 to 64.8 kW from three- and four-cylinder diesel engines of 3,000 to 4,000 cm³ displacement, torque from 163 to 319 Nm and a rated speed of 2,350 rpm throughout; unladen weight ranges from 2,350 to 2,740 kg, lengths from 3,431 to 3,561 mm, with a height of 2,110 mm throughout.

The consistently narrow overall width of 1,290 mm points to use in tight row crops such as vineyards or orchards, where standard tractors with the usual width of 1.8 to 2 metres do not fit between the rows; the XN range thus competes with narrow-track models from other SDF brands as well as Fendt, New Holland and Same.

On a used XN-range tractor, the condition of the clutch and gearbox under the cramped working conditions of row-crop use, the tightness of the hydraulics, rust on the narrow mudguards and panels, and the diesel engine's service history all count; parts run through the SDF dealer network for the Hürlimann brand.

Sources: SpecCodex register, model data: SDF Hürlimann XN-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	88 hp (64.8 kW)correct
Rated speed	2,350 rpmcorrect
Torque	319 Nmcorrect
Speed at max. torque	1,640 rpmcorrect
Cylinders	4correct
Displacement	4,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,561 mmcorrect
Width	1,290 mmcorrect
Height	2,110 mmcorrect
Wheelbase	2,056 mmcorrect
Ground clearance	270 mmcorrect
Unladen weight	2,740 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	45V/45Rcorrect
Front tyres	280/80 R 18 AScorrect
Rear tyres	420/70 R 28 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 23.6 kW/t (65 kW / 2.7 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Sdf Hürlimann XN-709 have?

The Sdf Hürlimann XN-709 delivers 88 hp.

How much does the Sdf Hürlimann XN-709 weigh?

The unladen weight is 2,740 kg.

What engine does the Sdf Hürlimann XN-709 have?

4 cylinders, 4,000 cm³ displacement, Diesel.

How fast does the Sdf Hürlimann XN-709 go?

Top speed is 40 km/h.

What are the dimensions of the Sdf Hürlimann XN-709?

3,561 mm × 1,290 mm × 2,110 mm.

When was the Sdf Hürlimann XN-709 built?

Production years: 1999–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
