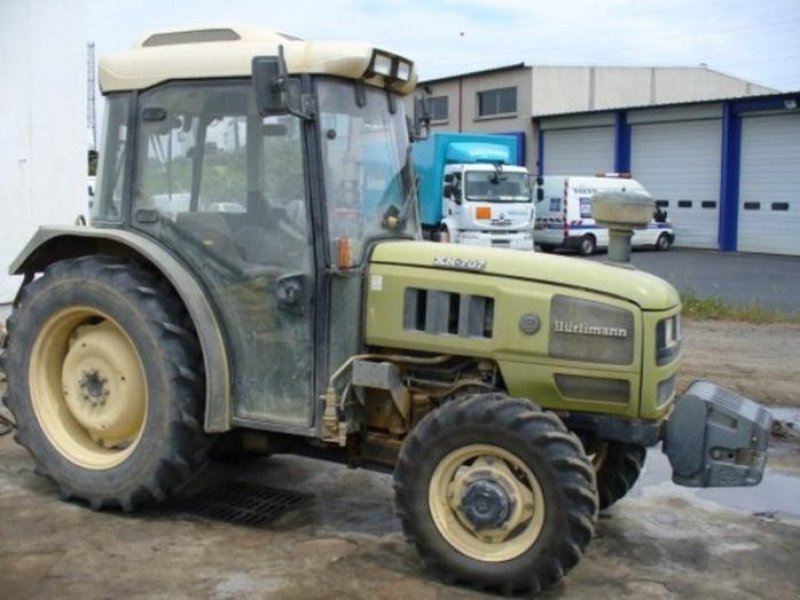

Sdf Hürlimann XN-707 – specifications
Built: 1998–2003 · Series: XN-Baureihe
With the XN-707, Sdf Hürlimann offers a model from the XN series. Production: 1998–2003. The engine delivers 70 hp (51.5 kW), has 3 cylinders, with a displacement of 3,000 cm³. Torque is 250 Nm. Rated speed is 2,350 rpm. The machine is 3,431 mm long, 1,290 mm wide and 2,110 mm high. The unladen weight is 2,455 kg. The wheelbase measures 1,926 mm. Ground clearance is 230 mm. Top speed is 40 km/h. Transmission: 45V/45R. The engine is water-cooled. Tyres: front 240/70 R 16 AS, rear 380/70 R 20 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,458 rpm. Construction: unit construction (no separate frame). The XN-Baureihe series covers 4 models. Rated output within it ranges from 60 to 88 hp; the XN-707 sits in the lower part of that range with 70 hp. Its immediate neighbours are the XN-706 below it with 60 hp and the XN-708 above it with 80 hp. Unladen weight within it ranges from 2,350 to 2,740 kg; here the XN-707 sits in the lower part of that range with 2,455 kg. 18 Sdf Hürlimann models across 7 series are on record.
Data for the version built 1998–2003 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SDF Hürlimann XN-Baureihe – narrow field tractors from SDF's Treviglio plant: types XN-706 to XN-709, 3,000 to 4,000 cm³, 44.2 to 64.8 kW, overall width 1,290 mm throughout
The XN range lists Hürlimann tractors built by the Same Deutz-Fahr Group (SDF), which has run the Hürlimann brand since the 1990s and builds the tractors at its Treviglio plant in Italy. The type designations XN-706 to XN-709 follow SDF's internal model numbering; a notable feature of this range is the uniformly narrow overall width of 1,290 mm shared by all four recorded types.
Read on 3 more paragraphs
The register lists 4 versions with 44.2 to 64.8 kW from three- and four-cylinder diesel engines of 3,000 to 4,000 cm³ displacement, torque from 163 to 319 Nm and a rated speed of 2,350 rpm throughout; unladen weight ranges from 2,350 to 2,740 kg, lengths from 3,431 to 3,561 mm, with a height of 2,110 mm throughout.
The consistently narrow overall width of 1,290 mm points to use in tight row crops such as vineyards or orchards, where standard tractors with the usual width of 1.8 to 2 metres do not fit between the rows; the XN range thus competes with narrow-track models from other SDF brands as well as Fendt, New Holland and Same.
On a used XN-range tractor, the condition of the clutch and gearbox under the cramped working conditions of row-crop use, the tightness of the hydraulics, rust on the narrow mudguards and panels, and the diesel engine's service history all count; parts run through the SDF dealer network for the Hürlimann brand.
Sources: SpecCodex register, model data: SDF Hürlimann XN-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 70 hp (51.5 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 250 Nmcorrect |
| Speed at max. torque | 1,458 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,431 mmcorrect |
|---|---|
| Width | 1,290 mmcorrect |
| Height | 2,110 mmcorrect |
| Wheelbase | 1,926 mmcorrect |
| Ground clearance | 230 mmcorrect |
| Unladen weight | 2,455 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 45V/45Rcorrect |
| Front tyres | 240/70 R 16 AScorrect |
| Rear tyres | 380/70 R 20 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 21 kW/t (52 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
