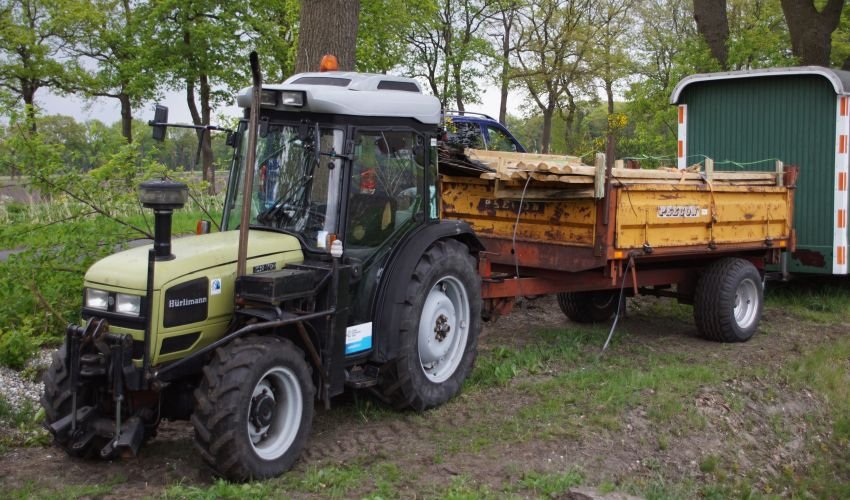

Sdf Hürlimann XN-708

Built: 1999–2003 · Series: XN-Baureihe

More machines from model year 1999

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The XN-708 from Sdf Hürlimann is part of the XN series. Production: 1999–2003. The engine delivers 80 hp (58.9 kW), has 4 cylinders, with a displacement of 4,000 cm³. Torque is 250 Nm. Rated speed is 2,350 rpm. The machine is 3,561 mm long, 1,290 mm wide and 2,110 mm high. The unladen weight is 2,520 kg. The wheelbase measures 2,056 mm. Ground clearance is 230 mm. Top speed is 30 km/h. Transmission: 45V/45R. The engine is water-cooled. Tyres: front 280/70 R 16 AS, rear 380/70 R 24 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 17:1. Maximum torque is reached at 1,456 rpm. Construction: unit construction (no separate frame). The XN-Baureihe series covers 4 models. Rated output within it ranges from 60 to 88 hp; the XN-708 sits in the upper part of that range with 80 hp. Its immediate neighbours are the XN-707 below it with 70 hp and the XN-709 above it with 88 hp. Unladen weight within it ranges from 2,350 to 2,740 kg; here the XN-708 sits in the middle of that range with 2,520 kg. 18 Sdf Hürlimann models across 7 series are on record.

SDF Hürlimann XN-Baureihe – narrow field tractors from SDF's Treviglio plant: types XN-706 to XN-709, 3,000 to 4,000 cm³, 44.2 to 64.8 kW, overall width 1,290 mm throughout

The XN range lists Hürlimann tractors built by the Same Deutz-Fahr Group (SDF), which has run the Hürlimann brand since the 1990s and builds the tractors at its Treviglio plant in Italy. The type designations XN-706 to XN-709 follow SDF's internal model numbering; a notable feature of this range is the uniformly narrow overall width of 1,290 mm shared by all four recorded types.

Read on 3 more paragraphs

The register lists 4 versions with 44.2 to 64.8 kW from three- and four-cylinder diesel engines of 3,000 to 4,000 cm³ displacement, torque from 163 to 319 Nm and a rated speed of 2,350 rpm throughout; unladen weight ranges from 2,350 to 2,740 kg, lengths from 3,431 to 3,561 mm, with a height of 2,110 mm throughout.

The consistently narrow overall width of 1,290 mm points to use in tight row crops such as vineyards or orchards, where standard tractors with the usual width of 1.8 to 2 metres do not fit between the rows; the XN range thus competes with narrow-track models from other SDF brands as well as Fendt, New Holland and Same.

On a used XN-range tractor, the condition of the clutch and gearbox under the cramped working conditions of row-crop use, the tightness of the hydraulics, rust on the narrow mudguards and panels, and the diesel engine's service history all count; parts run through the SDF dealer network for the Hürlimann brand.

Sources: SpecCodex register, model data: SDF Hürlimann XN-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	80 hp (58.9 kW)correct
Rated speed	2,350 rpmcorrect
Torque	250 Nmcorrect
Speed at max. torque	1,456 rpmcorrect
Cylinders	4correct
Displacement	4,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,561 mmcorrect
Width	1,290 mmcorrect
Height	2,110 mmcorrect
Wheelbase	2,056 mmcorrect
Ground clearance	230 mmcorrect
Unladen weight	2,520 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	45V/45Rcorrect
Front tyres	280/70 R 16 AScorrect
Rear tyres	380/70 R 24 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 23.4 kW/t (59 kW / 2.5 t)

Power class: Universal (40–100 hp)

Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Sdf Hürlimann XN-708 have?

The Sdf Hürlimann XN-708 delivers 80 hp.

How much does the Sdf Hürlimann XN-708 weigh?

The unladen weight is 2,520 kg.

What engine does the Sdf Hürlimann XN-708 have?

4 cylinders, 4,000 cm³ displacement, Diesel.

How fast does the Sdf Hürlimann XN-708 go?

Top speed is 30 km/h.

What are the dimensions of the Sdf Hürlimann XN-708?

3,561 mm × 1,290 mm × 2,110 mm.

When was the Sdf Hürlimann XN-708 built?

Production years: 1999–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
