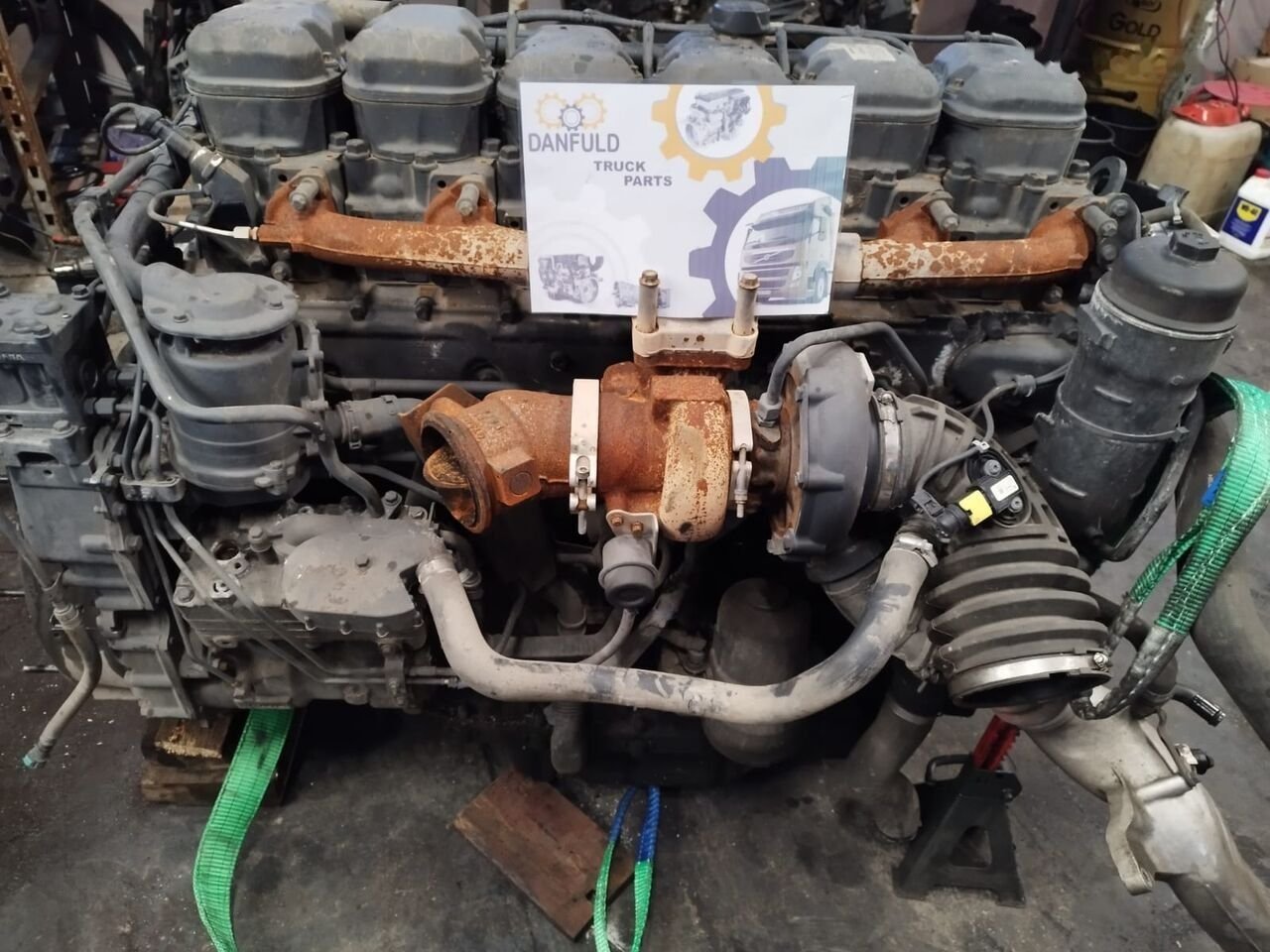

Scania DC13 541A
Built: 2025-2025 · Series: DC13
More machines from model year 2025
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scania DC13 — the Industrial and Marine Engine Built on the Truck Platform
The DC13 is Scania's six-cylinder industrial and marine version of its 13-liter inline engine, sharing its block and cylinder head with the truck variant. According to Scania, the "Next Generation" platform spans an unusually wide 350 to 1,050 hp, achieved through different turbocharging stages.
Read on 3 more paragraphs
Scania carries proven truck technology over into stationary and marine applications; the revised "Next Generation DC13" was named "Diesel of the Year" in 2023. Compared with the industrial version, the marine variant gets a more robust aluminum cover in place of the usual plastic cover.
The DC13 is used in ferries, pilot boats, pusher boats, offshore-wind crew transfer vessels and various workboats, as well as construction and mining equipment where high torque at low rpm is required.
On a used industrial or marine unit, check the wet cylinder-liner design: liners can be replaced, but require correct sealing on reinstallation, and a documented history of maintaining the individual four-valve cylinder heads is a precondition for the serviceability Scania advertises for this engine.
Sources: Kennwerte der Modelle DC13, - Powertrain International: Scania Next Generation: the DC13 takes the sea, - Hamilton Power Solutions: Scania Next Generation DC13, - DirectIndustry: SCANIA Industrial & Marine Engines
Technical data
Engine
| Engine code | 3 143 014correct |
|---|---|
| Engine family | TY9XL12.7EAA; SY9XL12.7EAAcorrect |
| Engine families | TY9XL12.7EAA; SY9XL12.7EAAcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 202 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 2,100 rpmcorrect |
| Maximum torque | 2,109 N·mcorrect |
| Speed at max. torque | 904 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 130 mmcorrect |
| Stroke | 160 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Variable Geometry Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 3 143 014correct |
|---|---|
| Built from | 2025correct |
| Built to | 2026correct |
| Model year from | 2025correct |
| Model year to | 2026correct |
Frequently asked questions
How much power does the Scania DC13 541A have?
The Scania DC13 541A delivers 202 kW.
When was the Scania DC13 541A built?
Production years: 2025.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
