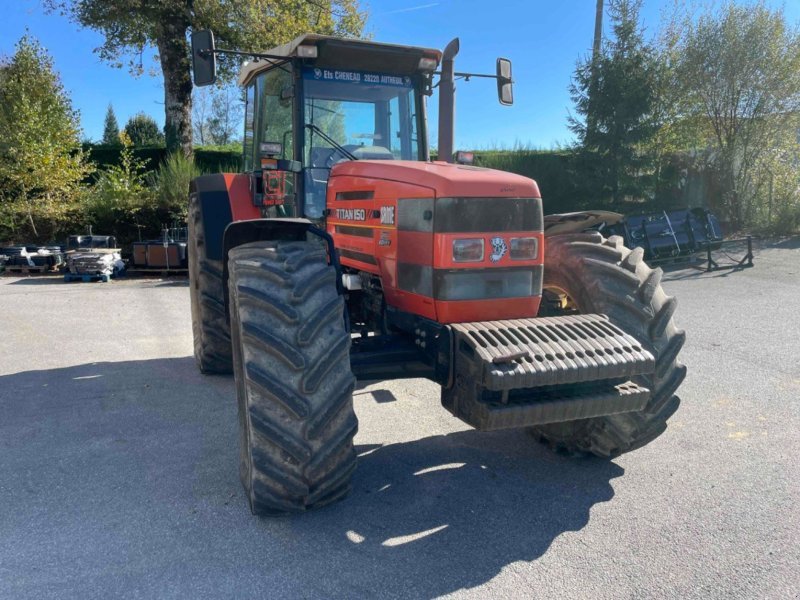

SAME (SLH) TITAN 150
Built: 1998–2001 · Series: TITAN-Baureihe
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Titan: the SLH era's flagship, 145 to 189 hp, six-cylinder diesels throughout at 6,001 cm³ displacement, the last purely SAME flagship series before SDF
The Titan series was, through the 1990s, the top model among SAME's own tractors within the SAME-Lamborghini-Hürlimann (SLH) group. As the most powerful range of its time, it targeted large arable farms with high drawbar demands.
Read on 4 more paragraphs
The register lists 6 live models, from the SUPER-TITAN to the TITAN 190, built between 1991 and 2001. Output ranges from 106.6 to 139 kW, weight from 5,750 to 6,510 kg, with a constant displacement of 6,001 cm3 and six-cylinder engines throughout.
The narrow spread of weight and displacement against clearly varying output shows that the Titan series was built on a shared six-cylinder base engine tuned to different stages, a practice typical across the SLH group.
After the 1995 acquisition of Deutz-Fahr, the group evolved into SAME Deutz-Fahr (SDF); the Titan series thus marks one of the last purely SAME flagship ranges before the rebrand.
When buying a used Titan, operating hours and the condition of the turbocharged six-cylinder, the tightness and function of the powershift stages, and the condition of axles and tyres given the high weight all matter; rust on cab and mudguards after years of arable use is common too. Since SLH now operates as SAME Deutz-Fahr, parts for the Titan run through this active group's dealer network. PTO and lift correspond in this power class to ISO 730 Category III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: SAME (SLH) TITAN-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 150 hp (110.3 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 611 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,001 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,375 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Height | 2,845 mmcorrect |
| Wheelbase | 2,850 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 5,780 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 26 V/25 R or 27 V/27 Rcorrect |
| Front tyres | 480/70 R 28 AScorrect |
| Rear tyres | 520/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.1 kW/t (110 kW / 5.8 t)
Power class: Large (100–180 hp)
Stronger than 83% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME (SLH) TITAN 150 have?
The SAME (SLH) TITAN 150 delivers 150 hp.
How much does the SAME (SLH) TITAN 150 weigh?
The unladen weight is 5,780 kg.
What engine does the SAME (SLH) TITAN 150 have?
6 cylinders, 6,001 cm³ displacement, Diesel.
How fast does the SAME (SLH) TITAN 150 go?
Top speed is 30 km/h.
What are the dimensions of the SAME (SLH) TITAN 150?
4,375 mm × 2,350 mm × 2,845 mm.
When was the SAME (SLH) TITAN 150 built?
Production years: 1998–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
