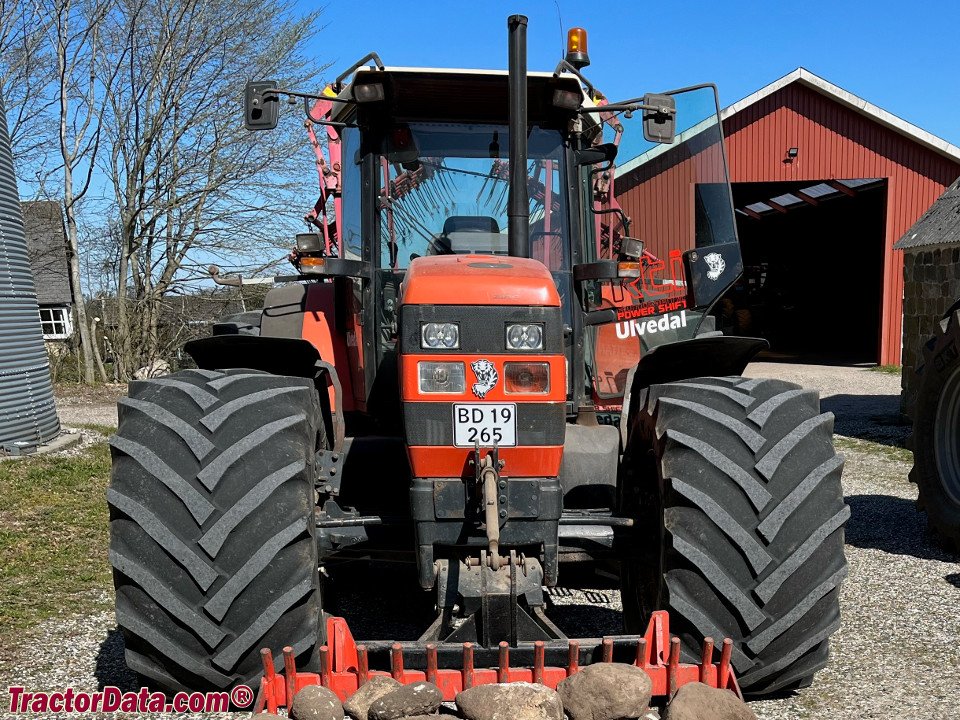

SAME (SLH) SUPER-TITAN
Built: 1998–2001 · Series: TITAN-Baureihe
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Titan: the SLH era's flagship, 145 to 189 hp, six-cylinder diesels throughout at 6,001 cm³ displacement, the last purely SAME flagship series before SDF
The Titan series was, through the 1990s, the top model among SAME's own tractors within the SAME-Lamborghini-Hürlimann (SLH) group. As the most powerful range of its time, it targeted large arable farms with high drawbar demands.
Read on 4 more paragraphs
The register lists 6 live models, from the SUPER-TITAN to the TITAN 190, built between 1991 and 2001. Output ranges from 106.6 to 139 kW, weight from 5,750 to 6,510 kg, with a constant displacement of 6,001 cm3 and six-cylinder engines throughout.
The narrow spread of weight and displacement against clearly varying output shows that the Titan series was built on a shared six-cylinder base engine tuned to different stages, a practice typical across the SLH group.
After the 1995 acquisition of Deutz-Fahr, the group evolved into SAME Deutz-Fahr (SDF); the Titan series thus marks one of the last purely SAME flagship ranges before the rebrand.
When buying a used Titan, operating hours and the condition of the turbocharged six-cylinder, the tightness and function of the powershift stages, and the condition of axles and tyres given the high weight all matter; rust on cab and mudguards after years of arable use is common too. Since SLH now operates as SAME Deutz-Fahr, parts for the Titan run through this active group's dealer network. PTO and lift correspond in this power class to ISO 730 Category III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: SAME (SLH) TITAN-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 189 hp (139 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,001 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,750 mmcorrect |
|---|---|
| Width | 2,460 mmcorrect |
| Height | 3,120 mmcorrect |
| Wheelbase | 2,850 mmcorrect |
| Ground clearance | 580 mmcorrect |
| Unladen weight | 6,450 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 27 V/27 Rcorrect |
| Front tyres | 480/70 R 34 AScorrect |
| Rear tyres | 650/65 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21.6 kW/t (139 kW / 6.5 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME (SLH) SUPER-TITAN have?
The SAME (SLH) SUPER-TITAN delivers 189 hp.
How much does the SAME (SLH) SUPER-TITAN weigh?
The unladen weight is 6,450 kg.
What engine does the SAME (SLH) SUPER-TITAN have?
6 cylinders, 6,001 cm³ displacement, Diesel.
How fast does the SAME (SLH) SUPER-TITAN go?
Top speed is 40 km/h.
What are the dimensions of the SAME (SLH) SUPER-TITAN?
4,750 mm × 2,460 mm × 3,120 mm.
When was the SAME (SLH) SUPER-TITAN built?
Production years: 1998–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
