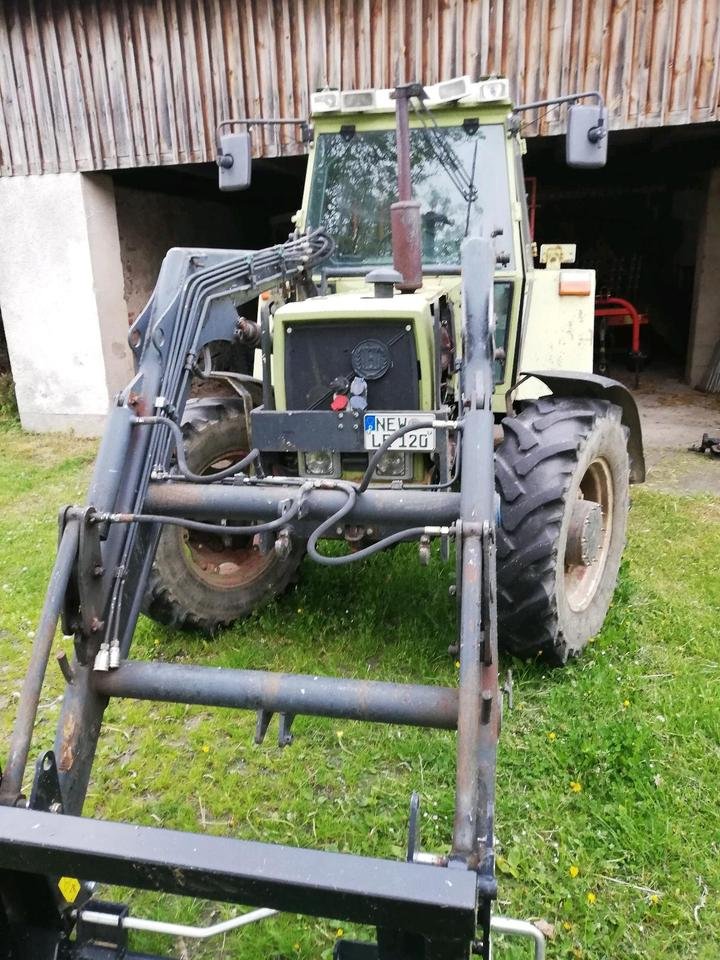

SAME Lamborghini Hürlimann LASER 150 DT

Built: 1983–1996 · Series: LASER-Baureihe

More machines from model year 1983

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LASER 150 DT from SAME Lamborghini Hürlimann is part of the LASER series. Production: 1983–1996. The engine delivers 145 hp (106.6 kW), has 6 cylinders, with a displacement of 6,234 cm³. Torque is 488 Nm. Rated speed is 2,180 rpm. The machine is 4,510 mm long, 2,150 mm wide and 2,810 mm high. The unladen weight is 5,590 kg. The wheelbase measures 2,856 mm. Ground clearance is 530 mm. Top speed is 30 km/h. Transmission: 24 V/12 R and 16 V/12 R. The engine is air-cooled. Tyres: front 16.9-30 AS, rear 20.8-38 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. The compression ratio is 16:1. Maximum torque is reached at 1,450 rpm. Construction: unit construction (no separate frame). The LASER-Baureihe series covers 3 models. Rated output within it ranges from 109 to 145 hp; the LASER 150 DT sits at the top of that range with 145 hp. Its immediate neighbours are the LASER 130 DT below it with 125 hp. Unladen weight within it ranges from 4,340 to 5,590 kg; here the LASER 150 DT sits at the top of that range with 5,590 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

SAME Lamborghini Hürlimann Laser range: collective page of powerful six-cylinder tractors, Laser 110 to 150, from the shared SLH platform, 80 to 107 kW, 1980s/90s

The Laser range was developed on the shared technical platform of the three SDF brands SAME, Lamborghini and Hürlimann (SLH) and was sold in parallel under all three names during the 1980s and 1990s. The model designations 110, 130 and 150 rank the range by power class, and the DT suffix stands for Doppia Trazione, four-wheel drive; all three versions in the register are four-wheel-drive models.

Read on 3 more paragraphs

The register lists 3 versions with 80.2 to 106.6 kW from six-cylinder diesel engines of 5,655 to 6,235 cm³, unladen weights of 4,340 to 5,590 kg, lengths of 4,035 to 4,510 mm, widths of 2,120 to 2,170 mm and heights of 2,695 to 2,810 mm; torque ranges from 365 to 488 Nm at 2,180 to 2,260 rpm.

In this power class the Laser models handled heavy field work such as deep ploughing and driving large implements, competing with the standard tractors of Fiat, Deutz-Fahr and Ford; the shared platform of the three brands cut development costs and gave largely identical engineering under different badges.

When buying used, condition of the six-cylinder diesel including cooling and injection, the transmission and four-wheel drive under load, and the hydraulics and lift all matter; since the engineering is identical across the three brands, spare parts can often be sourced through any of the three SDF dealer networks.

Sources: SpecCodex register, model data: SAME Lamborghini Hürlimann Laser

Technical data

Engine

Fuel	dieselcorrect
Power	145 hp (106.6 kW)correct
Rated speed	2,180 rpmcorrect
Torque	488 Nmcorrect
Speed at max. torque	1,450 rpmcorrect
Cylinders	6correct
Displacement	6,234 cm³correct
Bore	105 mmcorrect
Stroke	120 mmcorrect
Compression ratio	16correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	4,510 mmcorrect
Width	2,150 mmcorrect
Height	2,810 mmcorrect
Wheelbase	2,856 mmcorrect
Ground clearance	530 mmcorrect
Unladen weight	5,590 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	24 V/12 R and 16 V/12 Rcorrect
Front tyres	16.9-30 AScorrect
Rear tyres	20.8-38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.1 kW/t (107 kW / 5.6 t)

Power class: Large (100–180 hp)

Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann LASER 150 DT have?

The SAME Lamborghini Hürlimann LASER 150 DT delivers 145 hp.

How much does the SAME Lamborghini Hürlimann LASER 150 DT weigh?

The unladen weight is 5,590 kg.

What engine does the SAME Lamborghini Hürlimann LASER 150 DT have?

6 cylinders, 6,234 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann LASER 150 DT go?

Top speed is 30 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann LASER 150 DT?

4,510 mm × 2,150 mm × 2,810 mm.

When was the SAME Lamborghini Hürlimann LASER 150 DT built?

Production years: 1983–1996.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
