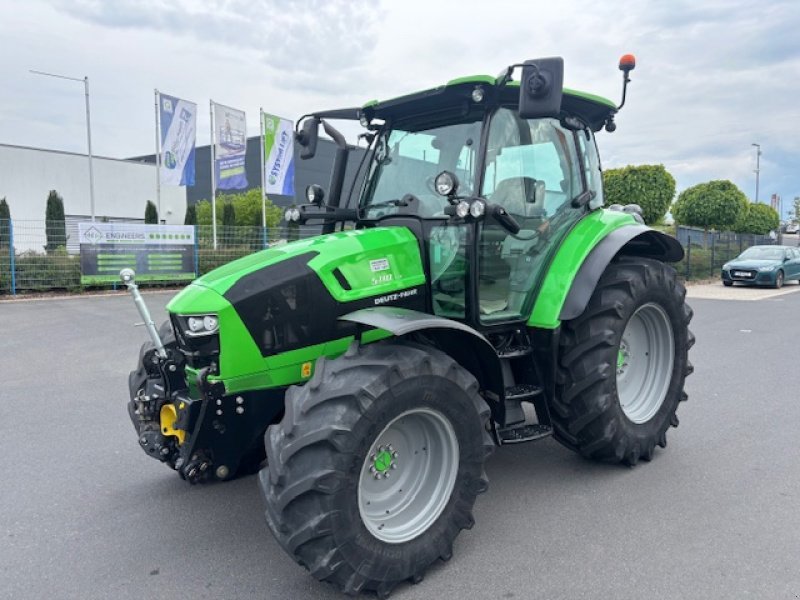

SAME Deutz Fahr 5110 ( TTV )
Built: 2013 · Series: Serie 5
More machines from model year 2013
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Deutz-Fahr Series 5 – models 5100, 5110 TTV and 5120 TTV from Lauingen: four-cylinder diesel from 69.5 to 85.5 kW, 3,620 cm³ displacement and TTV stepless transmission
The SAME-Deutz-Fahr group builds Series 5 at its Lauingen plant as mid-range utility tractors. The models 5110 and 5120 carry the TTV suffix for the stepless transmission, while the base model 5100 appears in the register without that suffix. The TTV transmission comes from ZF and is used by Deutz-Fahr across several ranges in the mid and upper power segments.
Read on 3 more paragraphs
The register lists 3 versions with 69.5 to 85.5 kW rated output at a constant 2,200 rpm. The four-cylinder engines produce a constant 3,620 cm³ displacement, torque ranges from 397 to 480 Nm. Operating weights lie between 4,150 and 4,700 kg, heights between 2,690 and 2,765 mm. All three models are designed to run on diesel or B100 biodiesel.
With the stepless TTV transmission on two of the three models, Series 5 sits in the mid power segment against competitors such as John Deere and Fendt, which also offer stepless transmission variants in this class. The fixed-ratio base model 5100 targets more price-conscious buyers with a classic power-shift gearbox.
When buying a used TTV model, checking the transmission oil and cooling system of the stepless gearbox is especially worthwhile, since repairs there are costly. Across all models, clutch, hydraulic system and corrosion on wings also rank among the checks; spare parts are carried by the SAME-Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: SAME Deutz Fahr Serie 5, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | Diesel / B 100correct |
|---|---|
| Power | 105 hp (77 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 440 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,620 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Height | 2,715 mmcorrect |
|---|---|
| Wheelbase | 2,430 mmcorrect |
| Unladen weight | 4,300 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 10V / 10Rcorrect |
| Rear tyres | 520/70 R 34 ( TTV: 520/70 R 38 )correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.9 kW/t (77 kW / 4.3 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr 5110 ( TTV ) have?
The SAME Deutz Fahr 5110 ( TTV ) delivers 105 hp.
How much does the SAME Deutz Fahr 5110 ( TTV ) weigh?
The unladen weight is 4,300 kg.
What engine does the SAME Deutz Fahr 5110 ( TTV ) have?
4 cylinders, 3,620 cm³ displacement, Diesel / B 100.
How fast does the SAME Deutz Fahr 5110 ( TTV ) go?
Top speed is 40 km/h.
When was the SAME Deutz Fahr 5110 ( TTV ) built?
Production years: 2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
