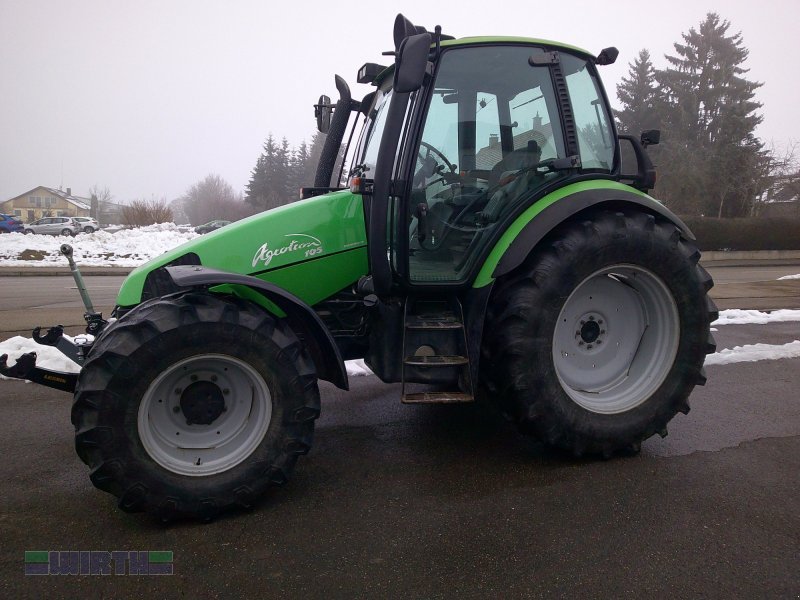

SAME Deutz Fahr Agroclimber 105
Built: 2007 · Series: Agroclimber - Reihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agroclimber: built for the steep slope, 70 to 102 hp, three- and four-cylinder diesels, F (Frutteto) and V variants for specialty crops
As the name suggests, the Agroclimber series targets mountain and steep-slope farms — a segment where Deutz-Fahr competed against established hillside specialists with a low centre of gravity and special chassis.
Read on 4 more paragraphs
The register lists 8 live models, from the Agroclimber F 90 to the Agroclimber 410, built in 2007 and 2009. Output ranges from 51.5 to 75 kW, or 70 to 102 hp, weight from 2,630 to 5,200 kg, displacement from 3,000 to 4,000 cm3, across three- and four-cylinder engines.
Various model suffixes such as F (Frutteto) show that Deutz-Fahr also adapted the Agroclimber series to different specialty-crop and mountain-farming requirements.
For operations in the Alps and mid-mountain regions, this series offered an alternative to dedicated hillside specialists such as Lindner or Reform.
When buying a used Agroclimber, clutch and gearbox condition, the tightness of the lift hydraulics, and rust on chassis and mudguards after use on steep terrain matter, plus, on the F and V variants, the availability of matching narrow tyres. Parts run through the SAME Deutz-Fahr group's dealer network, which as an active company continues to support older series too. PTO and three-point hitch correspond in this power class to ISO 730 Category II at 540 rpm, sufficient for the implements typical of mountain farming.
Sources: SpecCodex register, model data: Deutz-Fahr Agroclimber
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 102 hp (75 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 355 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | liquid-cooledcorrect |
Dimensions and weights
| Length | 3,410 mmcorrect |
|---|---|
| Width | 1,800 mmcorrect |
| Height | 1,350 mmcorrect |
| Wheelbase | 1,650 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 5,200 kgcorrect |
Drivetrain and chassis
| Drive | Kettecorrect |
|---|---|
| Gearbox | 16V / 16Rcorrect |
| Front tyres | Kette 400/450 mmcorrect |
| Rear tyres | Kette 400/450 mmcorrect |
| Top speed | 11.5 km/hcorrect |
Where this model stands
Power-to-weight ratio: 14.4 kW/t (75 kW / 5.2 t)
Power class: Large (100–180 hp)
Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agroclimber 105 have?
The SAME Deutz Fahr Agroclimber 105 delivers 102 hp.
How much does the SAME Deutz Fahr Agroclimber 105 weigh?
The unladen weight is 5,200 kg.
What engine does the SAME Deutz Fahr Agroclimber 105 have?
4 cylinders, 4,000 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agroclimber 105 go?
Top speed is 11.5 km/h.
What are the dimensions of the SAME Deutz Fahr Agroclimber 105?
3,410 mm × 1,800 mm × 1,350 mm.
When was the SAME Deutz Fahr Agroclimber 105 built?
Production years: 2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
