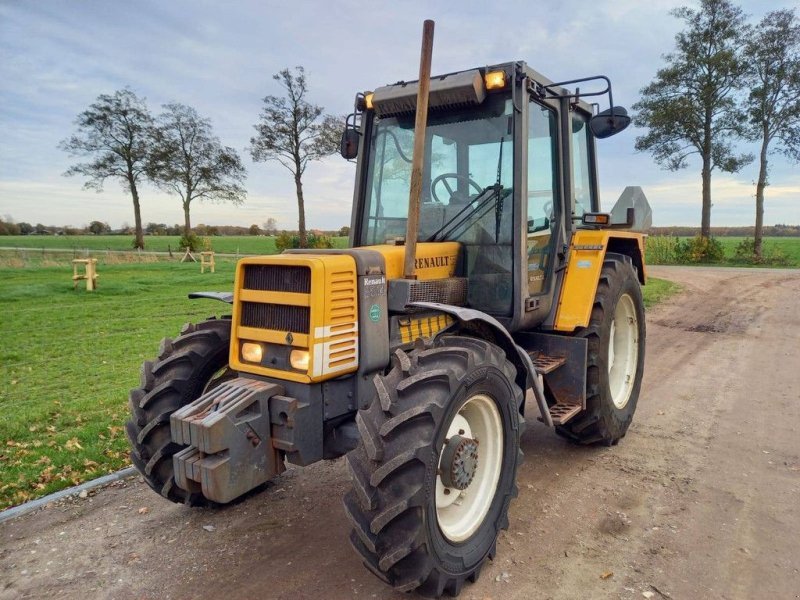

Renault 85-14 TS A
Built: 11/1986–1/1989 · Series: TS-Baureihe
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault TS range – five field tractors of the 1970s from Le Mans, the 75-12 TS to the 110-14 TS, four- and six-cylinder engines of 55.2 to 73.6 kW, 75 to 100 hp
The Renault TS range was a tractor generation of the 1970s, built at Renault's farm-machinery plant in Le Mans; the register lists here the 75-12 TS, 75-14 TS, 85-14 TS A, 97-54 TS and 110-14 TS. The first figure in the type designation names the power class in hp, the second the number of gearbox speeds.
Read on 3 more paragraphs
The register lists here five versions with 55.2 to 73.6 kW, or 75 to 100 hp, from four- or six-cylinder engines of 4,156 to 6,234 cm³ displacement, torque from 244 to 374 Nm, unladen weights from 3,348 to 5,200 kg, lengths from 3,934 to 4,603 mm, widths from 1,980 to 2,080 mm and heights from 2,775 to 2,905 mm at a rated speed of 2,350 rpm.
In the 1970s Renault ranked alongside Fiat, Massey Ferguson and Deutz among the major suppliers on the west European tractor market; the TS range, with its power span, covered the segment of medium to larger field tractors for farms with mixed cropping.
When buying used, the condition of the injection pump and cooling system, wear on clutch and gearbox and corrosion on the cab frame and wings matter; spare parts for Renault tractors of this generation are stocked by specialist farm-machinery dealers and parts traders for historic Renault equipment. On mixed farms, the TS range handled both drawbar work and PTO-driven tasks for harvesting and tillage equipment. Cab mounting points and wiring harnesses also merit a close look after decades of field service.
Sources: SpecCodex register, model data: Renault TS-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 78 hp (57.4 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 245 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16.6correct |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,060 mmcorrect |
|---|---|
| Width | 2,080 mmcorrect |
| Height | 2,780 mmcorrect |
| Wheelbase | 2,400 mmcorrect |
| Ground clearance | 430 mmcorrect |
| Unladen weight | 4,290 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12R or 24V/24Rcorrect |
| Front tyres | 13.6-24 6 PRcorrect |
| Rear tyres | 16.9-34 6 PRcorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 441correct |
Where this model stands
Power-to-weight ratio: 13.4 kW/t (57 kW / 4.3 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 85-14 TS A have?
The Renault 85-14 TS A delivers 78 hp.
How much does the Renault 85-14 TS A weigh?
The unladen weight is 4,290 kg.
What engine does the Renault 85-14 TS A have?
4 cylinders, 4,156 cm³ displacement, Diesel.
How fast does the Renault 85-14 TS A go?
Top speed is 30 km/h.
What are the dimensions of the Renault 85-14 TS A?
4,060 mm × 2,080 mm × 2,780 mm.
When was the Renault 85-14 TS A built?
Production years: 11/1986–1/1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
