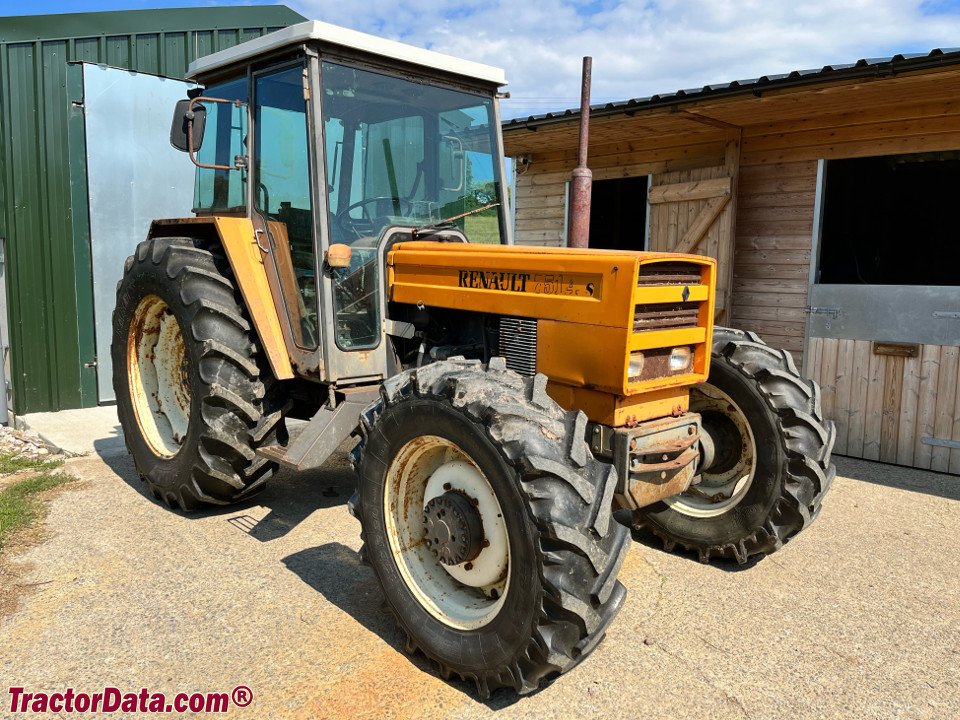

Renault 751-4 S
Built: 4/1979–4/1986 · Series: S-Serie
More machines from model year 1979
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault S series – tractors 461 S and 751(-4) S from Le Mans, 34 to 55 kW, three- and four-cylinder engines of 2,827 to 4,156 cm³, some with MWM engines
The S series belongs to Renault Agriculture's classic tractor programme, built at the Le Mans plant in France; the types covered here, 461 S, 751 S and 751-4 S, show the four-digit type number typical of Renault's size ordering, while the 4 suffix on the 751-4 S marks four-wheel drive. For one model in the range the register records an engine from the maker MWM, used alongside Renault's own units.
Read on 3 more paragraphs
The register lists here 3 versions with 33.9 to 55.2 kW, or 46 to 75 hp, from three- and four-cylinder engines of 2,827 to 4,156 cm³, torque from 175 to 266 Nm, unladen weights from 2,034 to 3,640 kg, lengths from 3,449 to 4,031 mm, widths from 1,610 to 1,860 mm and heights from 2,360 to 2,595 mm.
With this power range the S series covered the mid-range segment of the Renault line-up and competed with the French and European mid-range tractors of the era, such as those from Massey Ferguson, Fiat and Deutz; the four-wheel-drive 751-4 S extended the field of use onto more demanding terrain.
On a used S-series tractor, the condition of the clutch and gearbox, rust on the chassis and sheet-metal panels, and the tightness of the hydraulics all count, and on the four-wheel-drive version also the condition of the front-axle gearing and drive shafts; parts for Renault's own engines must be sourced through specialist farm-machinery dealers.
Sources: SpecCodex register, model data: Renault S-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hp (55.2 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 266 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,154 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.4correct |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,031 mmcorrect |
|---|---|
| Width | 1,610 mmcorrect |
| Height | 2,489 mmcorrect |
| Wheelbase | 2,400 mmcorrect |
| Ground clearance | 360 mmcorrect |
| Unladen weight | 3,640 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12Rcorrect |
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Front tyres | 11.2-28 AScorrect |
| Rear tyres | 13.6-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 82 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 2,896correct |
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.2 kW/t (55 kW / 3.6 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 751-4 S have?
The Renault 751-4 S delivers 75 hp.
How much does the Renault 751-4 S weigh?
The unladen weight is 3,640 kg.
What engine does the Renault 751-4 S have?
4 cylinders, 4,154 cm³ displacement, Diesel.
How fast does the Renault 751-4 S go?
Top speed is 30 km/h.
What are the dimensions of the Renault 751-4 S?
4,031 mm × 1,610 mm × 2,489 mm.
When was the Renault 751-4 S built?
Production years: 4/1979–4/1986.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
