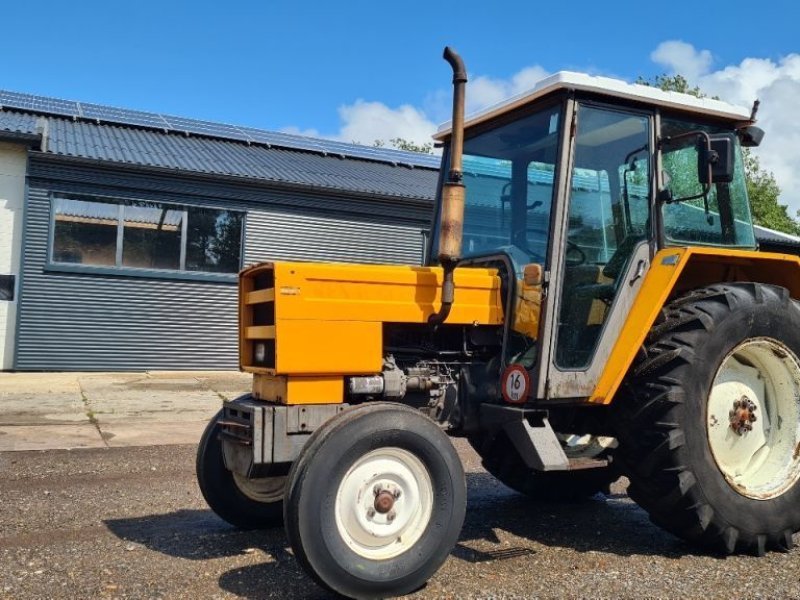

Renault 461 S

Built: 11/1980–11/1987 · Series: S-Serie

More machines from model year 1980

Source: https://www.technikboerse.com/nl/gebraucht/tractor-357/renau

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 461 S from Renault is part of the S series. Production: 11/1980–11/1987. The engine delivers 46 hp (33.9 kW), has 3 cylinders, with a displacement of 2,827 cm³. Torque is 175 Nm. Rated speed is 2,150 rpm. The machine is 3,449 mm long, 1,690 mm wide and 2,360 mm high. The unladen weight is 2,034 kg. The wheelbase measures 2,107 mm. Top speed is 30 km/h. The tank holds 48 litres. Transmission: 10V/2R. The engine is water-cooled. Tyres: front 6.00-16 ASF, rear 13.6-28 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). The gearbox offers 10 forward gears. There are also 2 reverse gears. Injection pressure is 180 bar. The linkage is category I. Around 2.873 units were built. The S-Serie series covers 3 models. Rated output within it ranges from 46 to 75 hp; the 461 S sits at the bottom of that range with 46 hp. Its immediate neighbours are the 751-4 S above it with 75 hp. Unladen weight within it ranges from 2,034 to 3,640 kg; here the 461 S sits at the bottom of that range with 2,034 kg. 3632 Renault models across 98 series are on record.

Renault S series – tractors 461 S and 751(-4) S from Le Mans, 34 to 55 kW, three- and four-cylinder engines of 2,827 to 4,156 cm³, some with MWM engines

The S series belongs to Renault Agriculture's classic tractor programme, built at the Le Mans plant in France; the types covered here, 461 S, 751 S and 751-4 S, show the four-digit type number typical of Renault's size ordering, while the 4 suffix on the 751-4 S marks four-wheel drive. For one model in the range the register records an engine from the maker MWM, used alongside Renault's own units.

Read on 3 more paragraphs

The register lists here 3 versions with 33.9 to 55.2 kW, or 46 to 75 hp, from three- and four-cylinder engines of 2,827 to 4,156 cm³, torque from 175 to 266 Nm, unladen weights from 2,034 to 3,640 kg, lengths from 3,449 to 4,031 mm, widths from 1,610 to 1,860 mm and heights from 2,360 to 2,595 mm.

With this power range the S series covered the mid-range segment of the Renault line-up and competed with the French and European mid-range tractors of the era, such as those from Massey Ferguson, Fiat and Deutz; the four-wheel-drive 751-4 S extended the field of use onto more demanding terrain.

On a used S-series tractor, the condition of the clutch and gearbox, rust on the chassis and sheet-metal panels, and the tightness of the hydraulics all count, and on the four-wheel-drive version also the condition of the front-axle gearing and drive shafts; parts for Renault's own engines must be sourced through specialist farm-machinery dealers.

Sources: SpecCodex register, model data: Renault S-Serie

Technical data

Engine

Fuel	dieselcorrect
Power	46 hp (33.9 kW)correct
Rated speed	2,150 rpmcorrect
Torque	175 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	3correct
Displacement	2,827 cm³correct
Bore	100 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17.5correct
Injection pressure	180 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,449 mmcorrect
Width	1,690 mmcorrect
Height	2,360 mmcorrect
Wheelbase	2,107 mmcorrect
Unladen weight	2,034 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	10V/2Rcorrect
Forward gears	10correct
Reverse gears	2correct
Front tyres	6.00-16 ASFcorrect
Rear tyres	13.6-28 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	48 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	2,873correct

Other data

Linkage category	Cat Icorrect

Where this model stands

Power-to-weight ratio: 16.7 kW/t (34 kW / 2 t)

Power class: Universal (40–100 hp)

Stronger than 30% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Renault 461 S have?

The Renault 461 S delivers 46 hp.

How much does the Renault 461 S weigh?

The unladen weight is 2,034 kg.

What engine does the Renault 461 S have?

3 cylinders, 2,827 cm³ displacement, Diesel.

How fast does the Renault 461 S go?

Top speed is 30 km/h.

What are the dimensions of the Renault 461 S?

3,449 mm × 1,690 mm × 2,360 mm.

When was the Renault 461 S built?

Production years: 11/1980–11/1987.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
