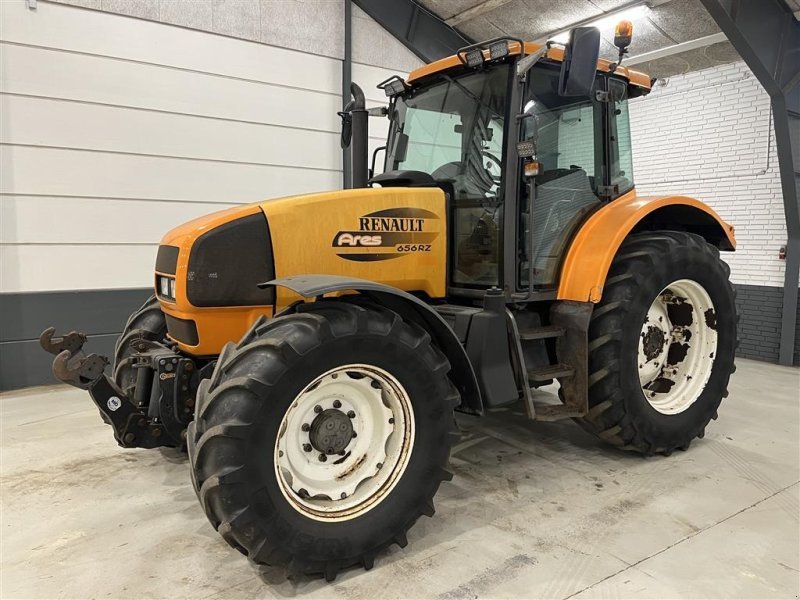

Renault Ares 656 RZ – specifications
Built: 10/2002–9/2005 · Series: Ares-600 Baureihe
The Ares-600 series from Renault includes the Ares 656 RZ. Production: 10/2002–9/2005. The engine delivers 125 hp (92 kW), has 6 cylinders, with a displacement of 6,788 cm³. Torque is 474 Nm. Rated speed is 2,200 rpm. The machine is 6,150 mm long, 2,550 mm wide and 2,945 mm high. The unladen weight is 5,995 kg. The wheelbase measures 2,750 mm. Ground clearance is 545 mm. Top speed is 40 km/h. The tank holds 250 litres. Transmission: 32 V/ 32 R. The engine is water-cooled. Tyres: front 480/70 R 28 AS, rear 580/70 R 38 AS. The fuel is diesel. The bore measures 106.5 mm. The stroke is 127 mm. The compression ratio is 17:1. Maximum torque is reached at 1,520 rpm. Construction: unit construction (no separate frame). The gearbox offers 32 forward gears. The linkage is category II/III. The PTO runs at 540/1000 rpm. Around 699 units were built. The Ares-600 Baureihe series covers 6 models. Rated output within it ranges from 110 to 140 hp; the Ares 656 RZ sits in the middle of that range with 125 hp. Its immediate neighbours are the Ares 630 RX/RZ below it with 120 hp and the Ares 636 RZ above it with 130 hp. Unladen weight within it ranges from 5,155 to 6,035 kg; here the Ares 656 RZ sits at the top of that range with 5,995 kg. 3632 Renault models across 98 series are on record.
Data for the version built 10/2002–9/2005 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault Ares 600: the strong class before Claas, 110 to 140 hp, six-cylinder diesels throughout at 6,788 cm³, RX and RZ variants
From the mid-1990s, the Ares series covered Renault's more powerful tractors; the Ares 600 tier occupied the upper power segment within it, until the company was gradually sold to Claas between 2003 and 2008 and dissolved in 2008.
Read on 4 more paragraphs
The register lists 6 live models, from the Ares 616 RX/RZ to the Ares 696 RZ, built between 1996 and 2005. Output ranges from 81 to 103 kW, or 110 to 140 hp, weight from 5,155 to 6,035 kg, with a constant displacement of 6,788 cm3 and six-cylinder engines throughout.
The RX and RZ suffixes denote different transmission and equipment variants within the same series, a modular approach typical of Renault during these years.
As one of the last large-tractor series developed purely under the Renault badge, the Ares 600 marks an endpoint before full integration into the Claas group.
When buying a used Ares 600, clutch and gearbox condition depending on the RX or RZ specification, the tightness of the lift hydraulics, and the six-cylinder's turbocharger and injection system all matter; rust on cab and mudguards after years of field use is common too. Since the Renault Agriculture brand was dissolved in 2008, parts for the Ares series now run through the Claas parts network. PTO and lift correspond in this power class to ISO 730 Category II to III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Renault Ares 600-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 125 hp (92 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 474 Nmcorrect |
| Speed at max. torque | 1,520 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,788 cm³correct |
| Bore | 106.5 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,150 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 2,945 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 545 mmcorrect |
| Unladen weight | 5,995 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/ 32 Rcorrect |
| Forward gears | 32correct |
| Front tyres | 480/70 R 28 AScorrect |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 250 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 699correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15.3 kW/t (92 kW / 6 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
