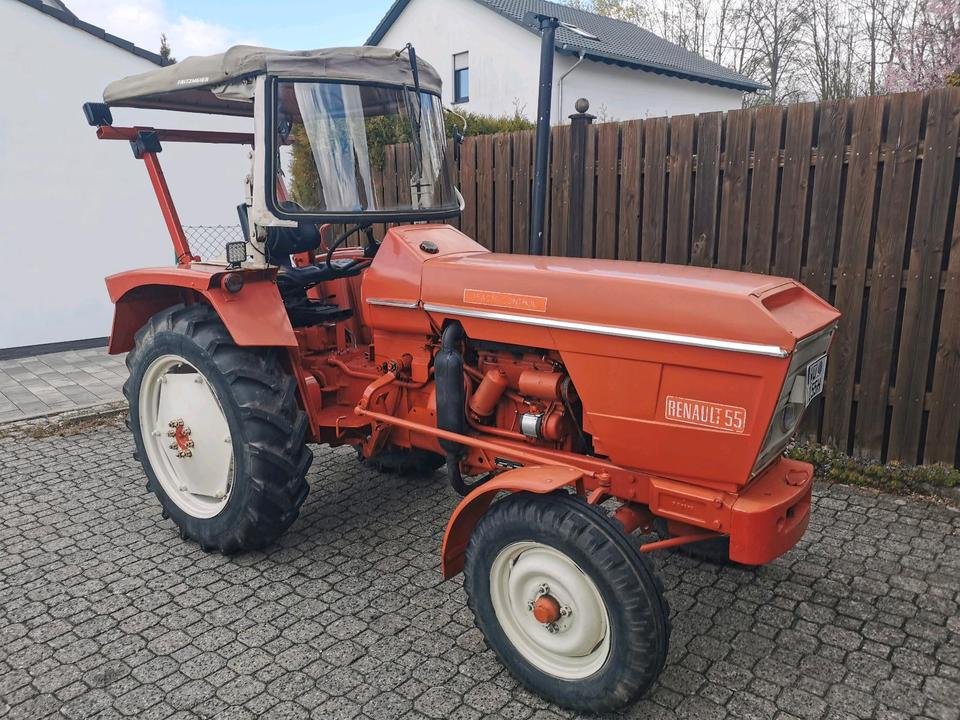

Renault R 55
Built: 12/1967–1/1970 (73) · Series: 50 er-Baureihe
More machines from model year 1967
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault 50 series: general-purpose and vineyard tractors of the 1970s, 45 to 55 hp, two- to four-cylinder diesel and petrol engines, with the narrow-track 60 Vigneron vineyard variant
The 50 series covered Renault Agriculture's entry and mid-range class from the late 1960s into the 1970s, and with the "60 Vigneron" already included a narrow-track vineyard variant within the same series.
Read on 4 more paragraphs
The register lists 10 live models, from the type 456 to the R-57, built between 1967 and 1977. Output ranges from 20.6 to 40.5 kW, or 45 to 55 hp, weight from 1,530 to 2,000 kg, displacement from 1,701 to 2,552 cm3, across two-, three- and four-cylinder engines.
Type designations shift within the series between three-digit numbers (456) and the later R nomenclature (R-55, R-56, R-57), reflecting the gradual standardisation of model names at Renault Agriculture through the 1970s.
As light general-purpose tractors with a vineyard option, the series targeted mixed farms and specialty crops alike.
When buying a used example of this early Renault series, clutch and mechanical gearbox condition, the tightness of the lift hydraulics, and rust on chassis, mudguards and the radiator surround after decades of field use all matter; on air-cooled versions, cooling fins and fan as well, and on water-cooled ones, the radiator and hoses. Renault Agriculture was later fully absorbed into the Claas group, so parts for this early series now run mainly through independent farm-machinery workshops and used-parts dealers rather than a Renault network of its own.
Sources: SpecCodex register, model data: Renault 50er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.8 kW)correct |
| Rated speed | 2.000/2.150 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,241 cm³correct |
| Bore | 93 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,120 mmcorrect |
|---|---|
| Width | 1,500 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 1,930 mmcorrect |
| Ground clearance | 435 mmcorrect |
| Unladen weight | 1,810 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1R or 10V/2Rcorrect |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 12.4-28 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 2.724/2.909correct |
Where this model stands
Power-to-weight ratio: 14.3 kW/t (26 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault R 55 have?
The Renault R 55 delivers 35 hp.
How much does the Renault R 55 weigh?
The unladen weight is 1,810 kg.
What engine does the Renault R 55 have?
3 cylinders, 2,241 cm³ displacement, Diesel.
How fast does the Renault R 55 go?
Top speed is 20 km/h.
What are the dimensions of the Renault R 55?
3,120 mm × 1,500 mm × 1,540 mm.
When was the Renault R 55 built?
Production years: 12/1967–1/1970 (73).
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
