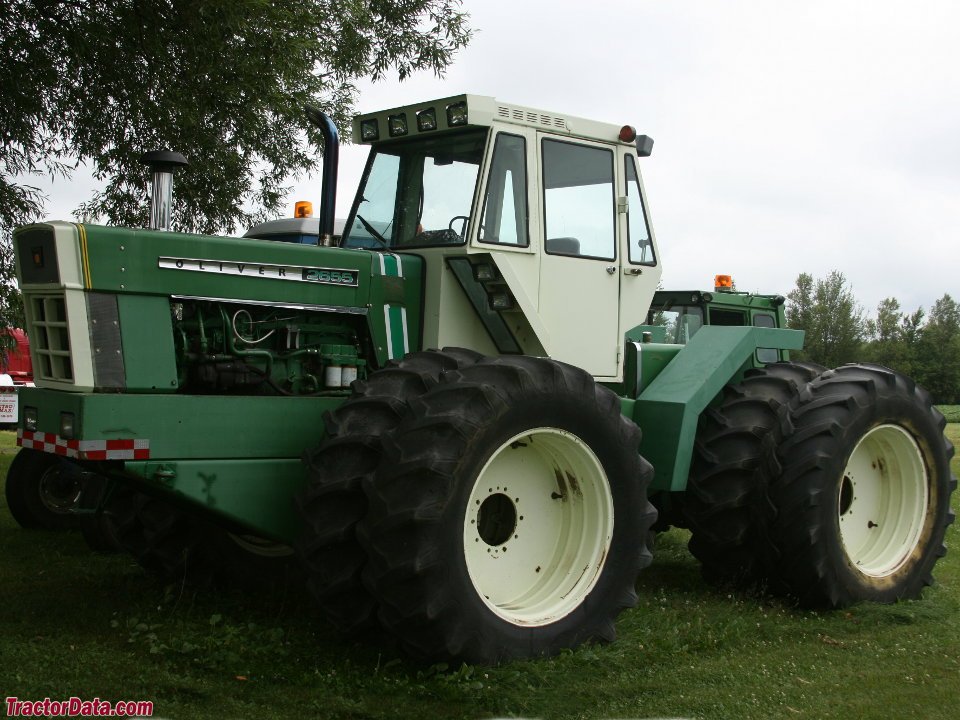

Oliver 2655
Built: 1971–1972 · Series: 55 er-Baureihe
More machines from model year 1971
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Oliver 55 series (1969–1975) – 1555 to 2655 from Charles City: the last Olivers before White, Minneapolis-Moline kinship, the Fiat-built 1265, 4 WD and the 2255 with V8, 33 to 109 kW
The 55 series was the last tractor programme to carry the Oliver name: the company from Charles City, Iowa, had belonged since 1960 to the White Motor group, which bought Minneapolis-Moline and Cockshutt in 1963, and in 1975 the three traditional brands disappeared into White Farm Equipment. The 55s replaced the 50s in 1969 and order size by the first digits in ascending order: 1555 and 1655 the mid-range, 1755 to 1955 the six-cylinder large tractors, 2055 to 2655 the heavy models, which were technically Minneapolis-Moline designs in Oliver sheet metal – the 2255 carried a V8 and the 2655 the eight-cylinder of 9,583 cm³ as a four-wheel-drive tractor. The 1265 came from Fiat in Italy, the 1555 to 1955 optionally with petrol, diesel or LPG; 4 WD marks four-wheel drive.
Read on 3 more paragraphs
The register lists 11 versions with 33.1 to 108.9 kW (45 to 143 hp), 2,592 to 9,583 cm³ with three to eight cylinders, unladen weights from 1,870 to 9,004 kg, lengths from 2,921 to 5,944 mm, widths from 1,597 to 2,438 mm and heights from 1,489 to 2,515 mm.
Oliver stood for green tractors with a six-cylinder reputation – the Waukesha and Oliver's own in-line engines were regarded as smooth – and the 55s were the range in which the mixing with Minneapolis-Moline and Fiat foreshadowed the brand's end.
Used Olivers are sought-after collector tractors in the USA with an active club scene; when buying, originality, engine condition, the Hydra-Power transmission with powershift step, hydraulics and the availability of sheet-metal parts through remanufacturers are what count.
Sources: SpecCodex register, model data: Oliver 55er-Baureihe, Oliver Farm Equipment Company (Wikipedia)
Technical data
Engine
| Engine make | Minneapolis-Molinecorrect |
|---|---|
| Fuel | Diesel/Benzincorrect |
| Power | 143 hp (105.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 9,583 cm³correct |
| Bore | 120.65 mmcorrect |
| Stroke | 139.7 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,944 mmcorrect |
|---|---|
| Width | 2,438 mmcorrect |
| Height | 2,515 mmcorrect |
| Wheelbase | 3,048 mm (120 in)correct |
| Unladen weight | 9,004 kg (19,850 lbs)correct |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 20.8-38correct |
| Rear tyres | 20.8-38correct |
| Top speed | 38 km/hcorrect |
Working data
| Fuel tank capacity | 378.5 l (100 gal)correct |
|---|
Origin and approval
| Plant | Minneapolis, Minnesota, USAcorrect |
|---|---|
| Construction | frame constructioncorrect |
| Units built | 1,003correct |
Other data
| Linkage category | Cat II / Cat IIIcorrect |
|---|---|
| PTO speed | 1,000correct |
Where this model stands
Power-to-weight ratio: 11.7 kW/t (105 kW / 9 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Oliver 2655 have?
The Oliver 2655 delivers 143 hp.
How much does the Oliver 2655 weigh?
The unladen weight is 9,004 kg.
What engine does the Oliver 2655 have?
6 cylinders, 9,583 cm³ displacement, Diesel/Benzin.
How fast does the Oliver 2655 go?
Top speed is 38 km/h.
What are the dimensions of the Oliver 2655?
5,944 mm × 2,438 mm × 2,515 mm.
When was the Oliver 2655 built?
Production years: 1971–1972.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
