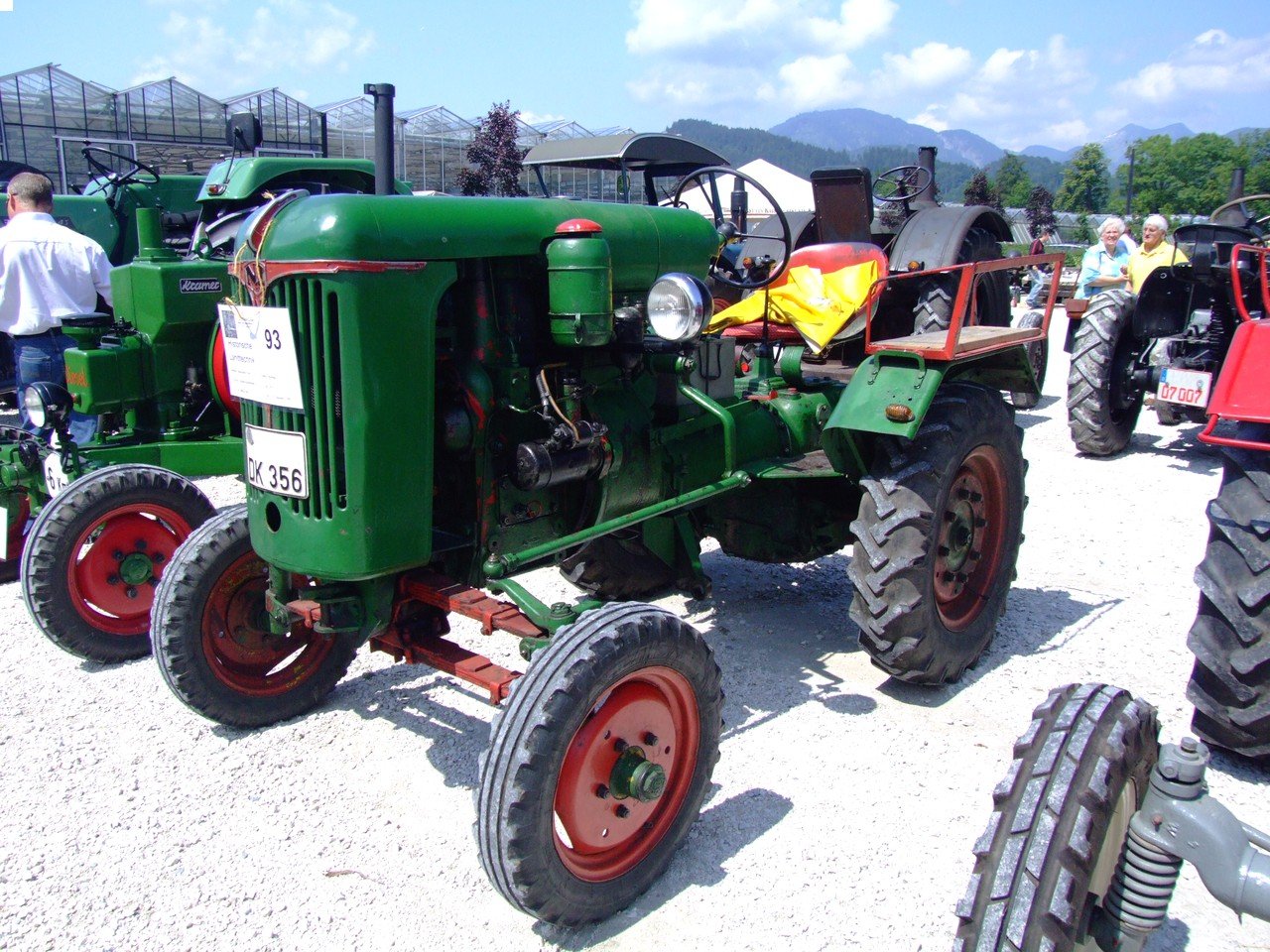

Normag Zorge NG 15 L
Built: 1950–1951 · Series: NG
More machines from model year 1950
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Normag Zorge NG – small-tractor range from the Harz: NG 15 L and NG 23 K, 11.7 to 18.3 kW from one- to two-cylinder engines of 1,180 to 2,356 cm³
Normag is a German tractor maker whose roots lie in Nordhausen; after the Second World War the firm continued production in Zorge in the Harz mountains. The Zorge NG range comprises compact small tractors of the 1950s, whose type designation approximates the power in hp – as with the NG 15 L and NG 23 K models. Production in Zorge continued into the 1960s and targeted mainly smallholder farms that had previously worked with horse teams.
Read on 3 more paragraphs
The register lists here 2 versions with 11.7 to 18.3 kW from one- to two-cylinder engines of 1,180 to 2,356 cm³, an unladen weight of 1,200 to 1,620 kg, a length of 2,450 to 2,670 mm, a width of 1,500 to 1,530 mm, a height of 1,550 to 1,640 mm and a rated speed of 1,500 to 1,600 rpm.
Small tractors of this kind supplied smallholder farms in postwar West Germany with affordable mechanisation during the 1950s, increasingly replacing horse teams on small and medium-sized plots. In upland terrain such as the Harz, the compact dimensions and low weight mattered especially, since heavy standard tractors could hardly be used on steep and narrow plots.
Buyers of used units should check the injection pump and fuel system, clutch and gearbox, and rust on the bodywork and mudguards; as the brand has not existed for decades, spares run almost exclusively through collectors, donor vehicles and reproductions. On these small tractors, the steering, brakes and the condition of the often narrow tyres also deserve particular attention.
Sources: SpecCodex register, model data: Normag Zorge NG
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 16 hp (11.7 kW)correct |
| Rated speed | 1,600 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,180 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 150 mmcorrect |
| Injection pressure | 100 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,450 mmcorrect |
|---|---|
| Width | 1,500 mmcorrect |
| Height | 1,550 mmcorrect |
| Wheelbase | 1,590 mmcorrect |
| Ground clearance | 240 mmcorrect |
| Unladen weight | 1,200 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4V/1Rcorrect |
| Front tyres | 4.50-16correct |
| Rear tyres | 8.00-24correct |
| Top speed | 16 km/hcorrect |
Origin and approval
| Construction | Blockkonstruktioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 9.8 kW/t (12 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Normag Zorge NG 15 L have?
The Normag Zorge NG 15 L delivers 16 hp.
How much does the Normag Zorge NG 15 L weigh?
The unladen weight is 1,200 kg.
What engine does the Normag Zorge NG 15 L have?
1 cylinders, 1,180 cm³ displacement, Diesel.
How fast does the Normag Zorge NG 15 L go?
Top speed is 16 km/h.
What are the dimensions of the Normag Zorge NG 15 L?
2,450 mm × 1,500 mm × 1,550 mm.
When was the Normag Zorge NG 15 L built?
Production years: 1950–1951.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
