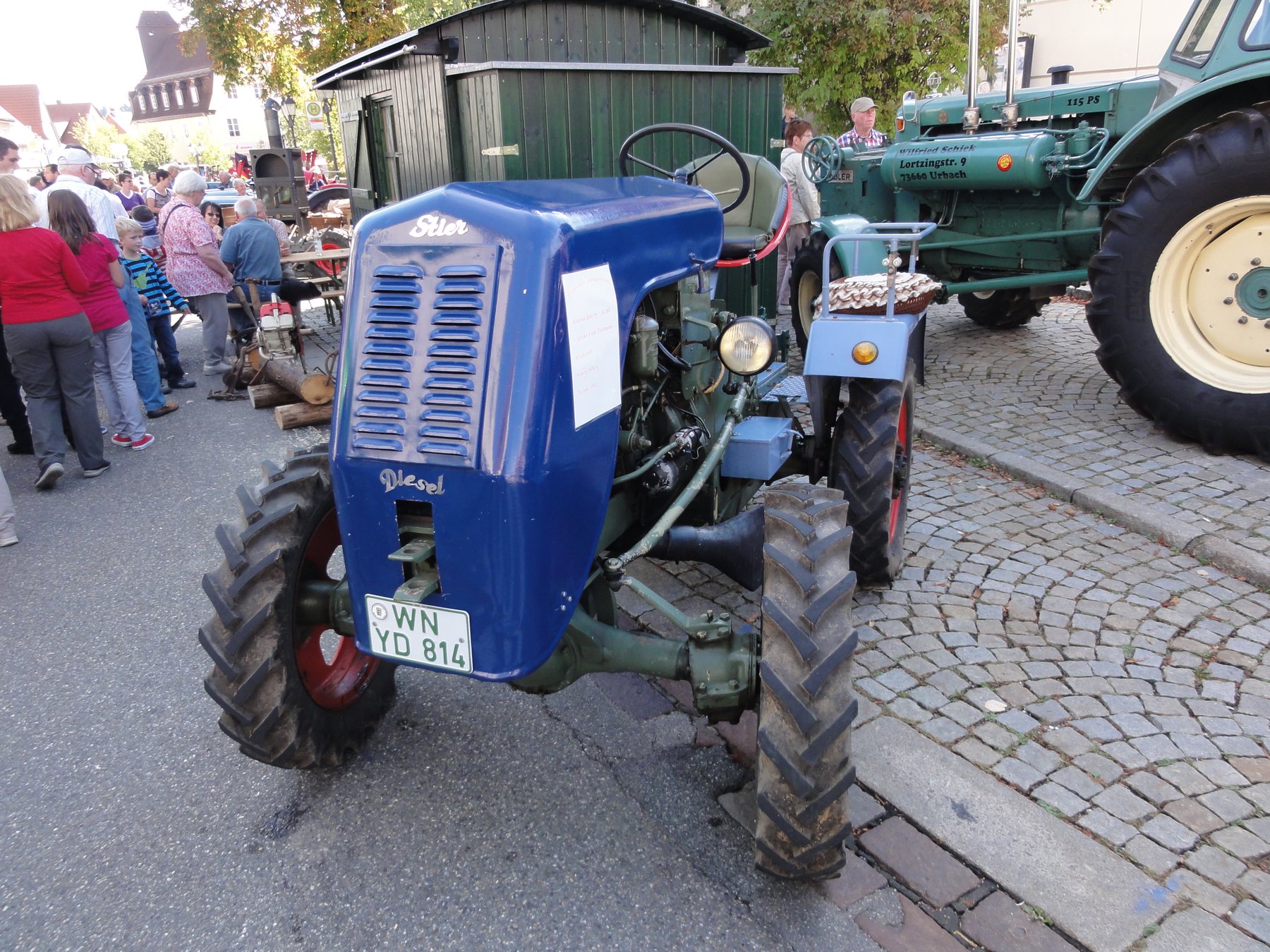

Nordtrak Stier 18
Built: 1951–1954 · Series: Stier
More machines from model year 1951
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nordtrak Stier series: compact small tractors in four versions from ST 45 to Stier 30, 11.8 to 29.3 kW from one- to three-cylinder engines of 1,470 to 2,360cc, 1,530 to 2,500 kg kerb weight
The Stier series brings together in the register a compact small tractor in four versions: ST 45, Stier 18, Stier 25 and Stier 30. These are one- to three-cylinder diesel tractors in the lower power segment, used on small farms, in orchards and vineyards and for municipal tasks; the short wheelbase and narrow track suit work in confined spaces. The narrow track also eases manoeuvring around farm buildings and through narrow gateways.
Read on 3 more paragraphs
The register lists 4 versions with 11.8 to 29.3 kW from one- to three-cylinder engines of 1,470 to 2,360cc, kerb weights from 1,530 to 2,500 kg, lengths from 2,600 to 3,290 mm, widths from 1,600 to 1,690 mm, heights from 1,700 to 1,875 mm and a rated speed of 1,500 rpm.
In this power segment, small tractors such as the Stier series compete with Asian compact tractors and smaller ranges from European manufacturers designed for grassland maintenance, transport work and work between row crops. Many such small tractors also found their way into equipment rental fleets serving smallholders.
When buying used, check operating hours, clutch and gearbox condition, diesel engine oil-tightness and corrosion on the chassis and bodywork; for such small and older series it is worth checking parts availability before buying, as distribution networks for small tractors are often regionally limited.
Sources: SpecCodex register, model data: Nordtrak Stier
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 16 hp (11.8 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,470 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,600 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,750 mmcorrect |
| Wheelbase | 1,500 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 1,530 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 5/1correct |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 7-24 AScorrect |
| Rear tyres | 7-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 230correct |
Where this model stands
Power-to-weight ratio: 7.7 kW/t (12 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nordtrak Stier 18 have?
The Nordtrak Stier 18 delivers 16 hp.
How much does the Nordtrak Stier 18 weigh?
The unladen weight is 1,530 kg.
What engine does the Nordtrak Stier 18 have?
1 cylinders, 1,470 cm³ displacement, Diesel.
How fast does the Nordtrak Stier 18 go?
Top speed is 20 km/h.
What are the dimensions of the Nordtrak Stier 18?
2,600 mm × 1,600 mm × 1,750 mm.
When was the Nordtrak Stier 18 built?
Production years: 1951–1954.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
