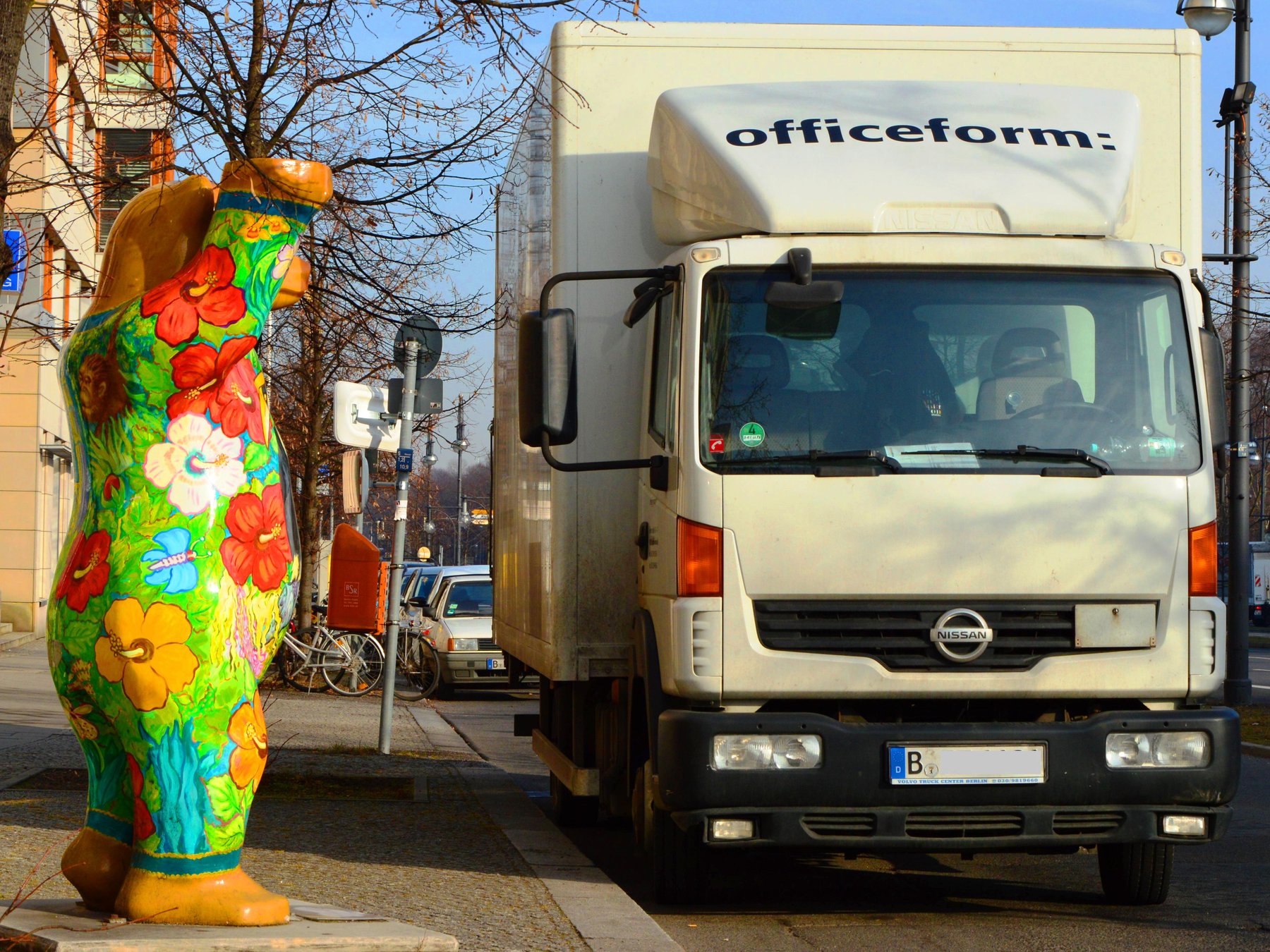

Nissan ATLEON
Built: 2009-2011 · Series: Atleon
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nissan Atleon – the Spanish chassis-cab truck between the Cabstar and the heavy class: type logic from gross weight and power, 110 to 165 kW, four- and six-cylinder diesels, 3.5 to 13 tonnes gross weight
The Nissan Atleon is a medium-duty chassis-cab truck built by Nissan in Ávila, Spain, at the former Nissan Motor Ibérica plant (previously Ebro), positioning the range between the lighter Cabstar and the heavy ranges of sister company Renault. It is sold mainly in Spain, Portugal and Latin America as a base for tippers, flatbeds and box bodies. The type designation follows the pattern common to Nissan and Renault: the first two digits before the point give the gross vehicle weight in tenths of a tonne, the following two the engine power in horsepower divided by ten – Atleon 80.19 is thus about 8.0 tonnes at roughly 190 hp, Atleon 130.22 about 13 tonnes at roughly 220 hp. Suffixes such as WHTTK0 or NHTTK0 mark wheelbase and body variants of the chassis.
Read on 3 more paragraphs
The register lists here 9 versions with 110 to 165 kW from four- and six-cylinder diesels of 2,953 to 6,692 cm³, unladen weights from 2,609 to 7,500 kg, gross weights from 3,500 to 13,000 kg, lengths from 6,820 to 9,750 mm and widths from 2,190 to 2,600 mm.
The Atleon competes in its market with the Iveco Eurocargo and the Renault D, covering above all the niche between light vans and classic long-haul trucks; bodybuilders in Spain and Portugal fit it with refrigerated boxes, tippers and municipal bodies.
On used examples, rust on the frame and cab floor, the condition of clutch and gearbox in distribution service, brakes and the trailer coupling on the heavy versions, and the diesel engine's service history count; parts run through the Nissan network and partly Renault's.
Sources: SpecCodex register, model data: Nissan Atleon, Nissan (manufacturer)
Technical data
Engine
| Power | 136 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 2,953 cm³correct |
Dimensions and weights
| Length | 7,320 mmcorrect |
|---|---|
| Width | 2,250 mmcorrect |
| Wheelbase | 4,000 mmcorrect |
| Unladen weight | 2,609 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 135 km/hcorrect |
Where this model stands
Power-to-weight ratio: 52.1 kW/t (136 kW / 2.6 t)
Stronger than 16% of the trucks in the register — out of 25,241 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nissan ATLEON have?
The Nissan ATLEON delivers 136 kW.
How much does the Nissan ATLEON weigh?
The unladen weight is 2,609 kg.
What is the gross vehicle weight of the Nissan ATLEON?
3,500 kg.
What engine does the Nissan ATLEON have?
4 cylinders, 2,953 cm³ displacement.
How fast does the Nissan ATLEON go?
Top speed is 135 km/h.
What are the dimensions of the Nissan ATLEON?
7,320 mm × 2,250 mm.
When was the Nissan ATLEON built?
Production years: 2009-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
