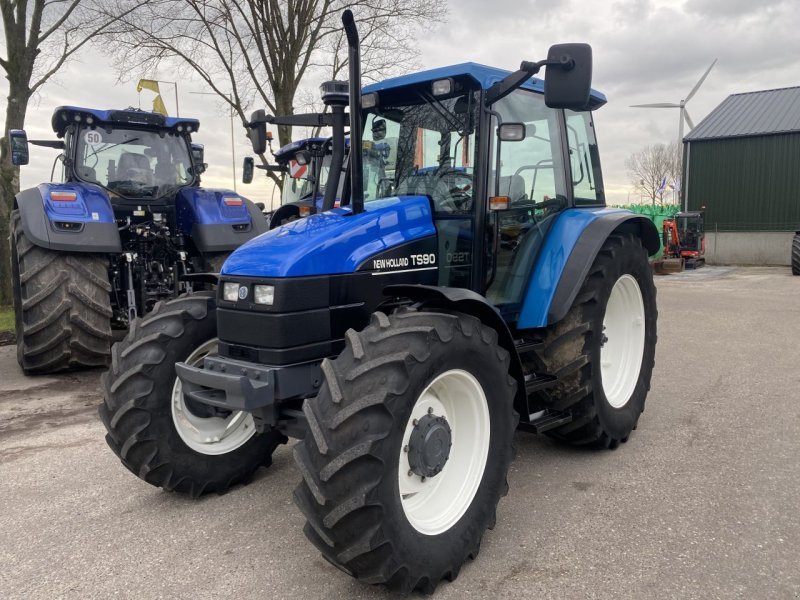

Nh Geotech TS 90

Built: 1997–2003 · Series: TS-Baureihe

More machines from model year 1997

Source: https://www.technikboerse.com/gebraucht/traktor-1/new-hollan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Nh Geotech TS 90 is a model in the TS series. Production: 1997–2003. The engine delivers 80 hp (58.9 kW), has 4 cylinders, with a displacement of 4,987 cm³. Torque is 325 Nm. Rated speed is 2,170 rpm. The machine is 3,810 mm long, 2,092 mm wide and 2,726 mm high. The unladen weight is 3,929 kg. The wheelbase measures 2,330 mm. Ground clearance is 390 mm. Top speed is 30 km/h. Transmission: 12V/12R, 16V/16R and 24V/24R. The engine is water-cooled. Tyres: front 7.50-16 ASF (DT: 14.9 R 24 AS), rear 18.4 R 34 AS. The fuel is diesel. The bore measures 111.8 mm. The stroke is 127 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,304 rpm. Construction: unit construction (no separate frame). The TS-Baureihe series covers 4 models. Rated output within it ranges from 80 to 115 hp; the TS 90 sits at the bottom of that range with 80 hp. Its immediate neighbours are the TS 100 (DT) above it with 90 hp. Unladen weight within it ranges from 3,929 to 4,802 kg; here the TS 90 sits at the bottom of that range with 3,929 kg. 19 Nh Geotech models across 6 series are on record.

New Holland Geotech TS series – heavy field tractors of the merger era: four- and six-cylinder diesels at 4,987 to 7,480 cc, 58.9 to 86 kW, types TS 90, TS 100, TS 110 and TS 115 (DT)

The TS series formed the heavy field-tractor class in the 1990s New Holland Geotech generation, above the utility TL series, relying on four- or six-cylinder engines depending on type. The four types TS 90, TS 100, TS 110 and TS 115 state the power step directly in the type number, and the DT suffix denotes the four-wheel-drive version on the smaller types.

Read on 3 more paragraphs

The register lists 4 versions with 58.9 to 86 kW from four- to six-cylinders of 4,987 to 7,480 cc displacement at 2,070 to 2,170 rpm; torque ranges from 325 to 426 Nm. Unladen weights lie between 3,929 and 4,802 kg, lengths between 3,810 and 4,397 mm, widths between 2,092 and 2,180 mm, and heights between 2,726 and 2,788 mm.

The TS series was aimed at larger arable farms with high demand for pulling power in heavy tillage, sitting at the upper end of the New Holland range of these years in competition with the large Case IH Magnum and Deutz-Fahr Agrostar series. Distribution ran through the existing Ford and New Holland dealer network, which was gradually converted to the new brand identity during this transitional period.

On a used purchase, check operating hours and the engine's service history, the condition of the clutch and gearbox, and the tightness of the hydraulics; on DT four-wheel-drive versions also the front-axle drive and joints, with parts running through the New Holland network.

Sources: SpecCodex register, model data: New Holland Geotech TS-Baureihe, New Holland (CNH, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	80 hp (58.9 kW)correct
Rated speed	2,170 rpmcorrect
Torque	325 Nmcorrect
Speed at max. torque	1,304 rpmcorrect
Cylinders	4correct
Displacement	4,987 cm³correct
Bore	111.8 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,810 mmcorrect
Width	2,092 mmcorrect
Height	2,726 mmcorrect
Wheelbase	2,330 mmcorrect
Ground clearance	390 mmcorrect
Unladen weight	3,929 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12V/12R, 16V/16R and 24V/24Rcorrect
Front tyres	7.50-16 ASF (DT: 14.9 R 24 AS)correct
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15 kW/t (59 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Nh Geotech TS 90 have?

The Nh Geotech TS 90 delivers 80 hp.

How much does the Nh Geotech TS 90 weigh?

The unladen weight is 3,929 kg.

What engine does the Nh Geotech TS 90 have?

4 cylinders, 4,987 cm³ displacement, Diesel.

How fast does the Nh Geotech TS 90 go?

Top speed is 30 km/h.

What are the dimensions of the Nh Geotech TS 90?

3,810 mm × 2,092 mm × 2,726 mm.

When was the Nh Geotech TS 90 built?

Production years: 1997–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
