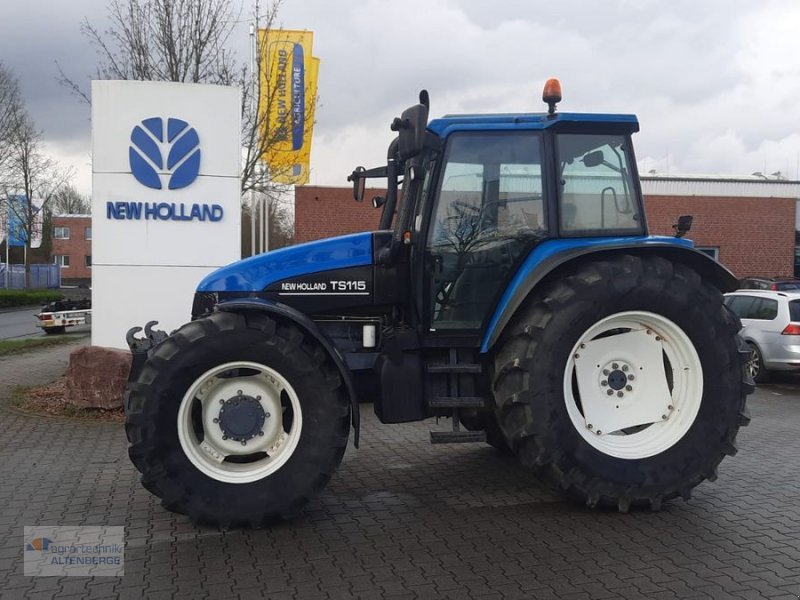

Nh Geotech TS 115

Built: 1998–2003 · Series: TS-Baureihe

More machines from model year 1998

Source: https://www.technikboerse.at/gebraucht/traktor-357/new-holla

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Nh Geotech TS 115 belongs to the TS series. Production: 1998–2003. The engine delivers 115 hp (86 kW), has 6 cylinders, with a displacement of 7,480 cm³. Torque is 420 Nm. Rated speed is 2,070 rpm. The machine is 4,397 mm long, 2,180 mm wide and 2,788 mm high. The unladen weight is 4,802 kg. The wheelbase measures 2,623 mm. Ground clearance is 418 mm. Top speed is 40 km/h. Transmission: 16V/16R and 24V/24R. The engine is water-cooled. Tyres: front 14.9 R 28 AS, rear 18.4 R 38 AS. The fuel is diesel. The bore measures 111.8 mm. The stroke is 127 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,134 rpm. Construction: unit construction (no separate frame). The TS-Baureihe series covers 4 models. Rated output within it ranges from 80 to 115 hp; the TS 115 sits at the top of that range with 115 hp. Its immediate neighbours are the TS 110 (DT) below it with 100 hp. Unladen weight within it ranges from 3,929 to 4,802 kg; here the TS 115 sits at the top of that range with 4,802 kg. 19 Nh Geotech models across 6 series are on record.

New Holland Geotech TS series – heavy field tractors of the merger era: four- and six-cylinder diesels at 4,987 to 7,480 cc, 58.9 to 86 kW, types TS 90, TS 100, TS 110 and TS 115 (DT)

The TS series formed the heavy field-tractor class in the 1990s New Holland Geotech generation, above the utility TL series, relying on four- or six-cylinder engines depending on type. The four types TS 90, TS 100, TS 110 and TS 115 state the power step directly in the type number, and the DT suffix denotes the four-wheel-drive version on the smaller types.

Read on 3 more paragraphs

The register lists 4 versions with 58.9 to 86 kW from four- to six-cylinders of 4,987 to 7,480 cc displacement at 2,070 to 2,170 rpm; torque ranges from 325 to 426 Nm. Unladen weights lie between 3,929 and 4,802 kg, lengths between 3,810 and 4,397 mm, widths between 2,092 and 2,180 mm, and heights between 2,726 and 2,788 mm.

The TS series was aimed at larger arable farms with high demand for pulling power in heavy tillage, sitting at the upper end of the New Holland range of these years in competition with the large Case IH Magnum and Deutz-Fahr Agrostar series. Distribution ran through the existing Ford and New Holland dealer network, which was gradually converted to the new brand identity during this transitional period.

On a used purchase, check operating hours and the engine's service history, the condition of the clutch and gearbox, and the tightness of the hydraulics; on DT four-wheel-drive versions also the front-axle drive and joints, with parts running through the New Holland network.

Sources: SpecCodex register, model data: New Holland Geotech TS-Baureihe, New Holland (CNH, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	115 hp (86 kW)correct
Rated speed	2,070 rpmcorrect
Torque	420 Nmcorrect
Speed at max. torque	1,134 rpmcorrect
Cylinders	6correct
Displacement	7,480 cm³correct
Bore	111.8 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,397 mmcorrect
Width	2,180 mmcorrect
Height	2,788 mmcorrect
Wheelbase	2,623 mmcorrect
Ground clearance	418 mmcorrect
Unladen weight	4,802 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16V/16R and 24V/24Rcorrect
Front tyres	14.9 R 28 AScorrect
Rear tyres	18.4 R 38 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.9 kW/t (86 kW / 4.8 t)

Power class: Large (100–180 hp)

Stronger than 73% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Nh Geotech TS 115 have?

The Nh Geotech TS 115 delivers 115 hp.

How much does the Nh Geotech TS 115 weigh?

The unladen weight is 4,802 kg.

What engine does the Nh Geotech TS 115 have?

6 cylinders, 7,480 cm³ displacement, Diesel.

How fast does the Nh Geotech TS 115 go?

Top speed is 40 km/h.

What are the dimensions of the Nh Geotech TS 115?

4,397 mm × 2,180 mm × 2,788 mm.

When was the Nh Geotech TS 115 built?

Production years: 1998–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
