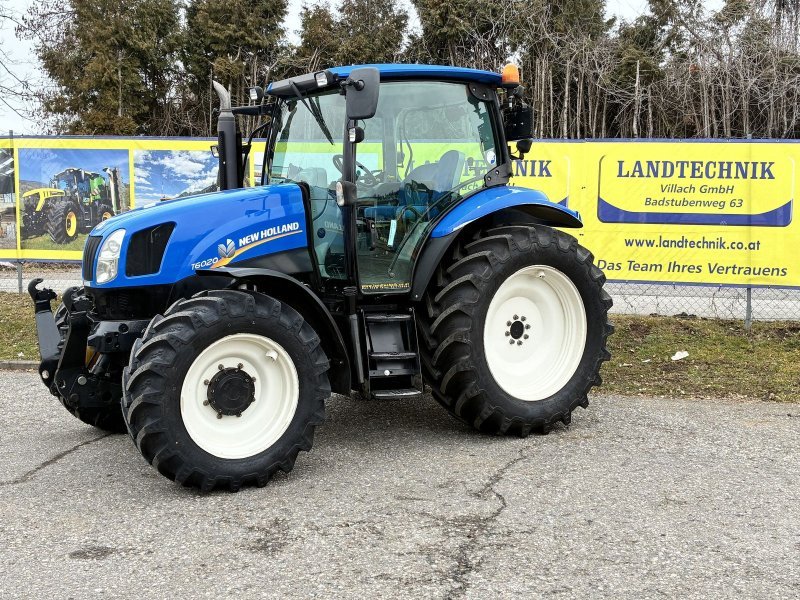

New Holland T6020 Delta Series 2WD
Series: T6020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6020 (2007–2012) – the four-cylinder entry to the T6000 range from Basildon: 112 hp from 4.5 litres, Delta, Plus and Elite as equipment lines, Range Command and Power Command, 67 to 97 kW, 90 hp at the PTO
The T6020 was the smallest model of the T6000 range with which New Holland replaced the TS-A range in 2007 – built in Basildon, England, and as a four-cylinder the entry to the mid-range, while the sister models from the T6030 upward carry six-cylinders. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-range series, 020 the lowest power step; the equipment lines follow the suffix: Delta the simple version with mechanical transmission, Plus the medium, Elite the upper one with Power Command powershift, front-axle suspension and electronic hydraulics. The engine is FPT's NEF four-cylinder of 4.5 litres at 2,200 rpm, 112 hp rated, and on Plus and Elite with power boost for PTO and transport work, which explains the register span up to 97 kW.
Read on 3 more paragraphs
The register lists 8 versions with 67.1 to 97 kW from the four-cylinder of 4,485 to 4,502 cm³, torque from 476 to 533 Nm, 90 hp at the PTO, lift capacities from 3,406 to 5,539 kg, unladen weights from 4,720 to 5,575 kg, lengths from 4,320 to 4,950 mm, widths from 2,280 to 2,500 mm and heights from 2,805 to 2,985 mm.
The T6020 is the compact all-rounder for grassland and dairy farms that value the short wheelbase of the four-cylinder for front loader and yard work; its successor is the T6.120 of the T6 range.
On used tractors, operating hours, the condition of engine and injection, transmission (Range Command clutches on Plus and Elite), front-axle suspension, loader mounting and hydraulics, cab and electronics and parts supply through CNH count.
Sources: SpecCodex register, model data: New Holland T6020, New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 111.5 hp (82 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged, intercooledcorrect |
| Engine oil capacity | 10.2 lcorrect |
Dimensions and weights
| Wheelbase | 2,371.3 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | 12x12 SynchroCommandcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Lifting capacity | 3,406 kgcorrect |
|---|---|
| Pump flow | 102.6 l/mincorrect |
| Hydraulic oil capacity | 64.7 lcorrect |
| Fuel tank capacity | 179.8 lcorrect |
Other data
| PTO output | 90 hpcorrect |
|---|---|
| System voltage | 12 Vcorrect |
Frequently asked questions
How much power does the New Holland T6020 Delta Series have?
The New Holland T6020 Delta Series delivers 112 hp.
What engine does the New Holland T6020 Delta Series have?
4 cylinders, 4,502 cm³ displacement.
What is the PTO output of the New Holland T6020 Delta Series?
PTO output is 90 hp.
How much does the rear linkage of the New Holland T6020 Delta Series lift?
The rear linkage lifts 3,406 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
