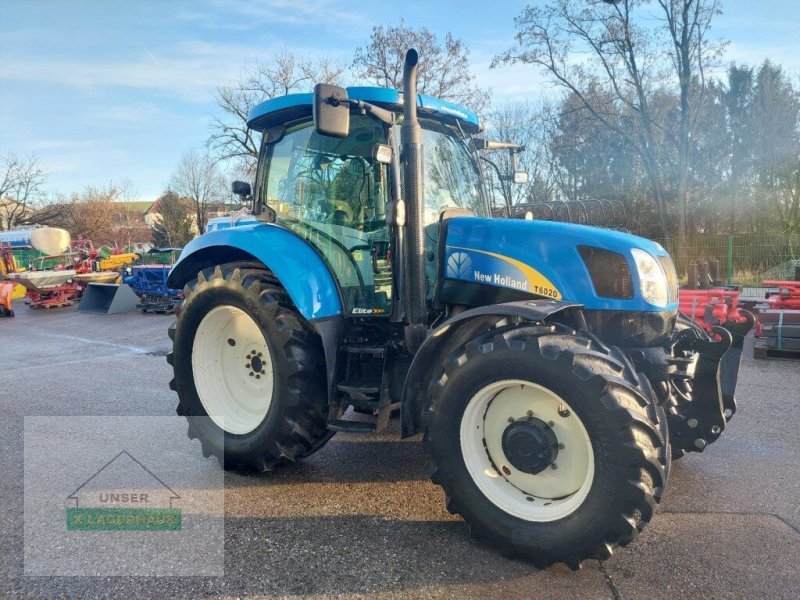

New Holland T6020 (82 kW)
Built: 2007-2012 · Series: T6020
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6020 (2007–2012) – the four-cylinder entry to the T6000 range from Basildon: 112 hp from 4.5 litres, Delta, Plus and Elite as equipment lines, Range Command and Power Command, 67 to 97 kW, 90 hp at the PTO
The T6020 was the smallest model of the T6000 range with which New Holland replaced the TS-A range in 2007 – built in Basildon, England, and as a four-cylinder the entry to the mid-range, while the sister models from the T6030 upward carry six-cylinders. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-range series, 020 the lowest power step; the equipment lines follow the suffix: Delta the simple version with mechanical transmission, Plus the medium, Elite the upper one with Power Command powershift, front-axle suspension and electronic hydraulics. The engine is FPT's NEF four-cylinder of 4.5 litres at 2,200 rpm, 112 hp rated, and on Plus and Elite with power boost for PTO and transport work, which explains the register span up to 97 kW.
Read on 3 more paragraphs
The register lists 8 versions with 67.1 to 97 kW from the four-cylinder of 4,485 to 4,502 cm³, torque from 476 to 533 Nm, 90 hp at the PTO, lift capacities from 3,406 to 5,539 kg, unladen weights from 4,720 to 5,575 kg, lengths from 4,320 to 4,950 mm, widths from 2,280 to 2,500 mm and heights from 2,805 to 2,985 mm.
The T6020 is the compact all-rounder for grassland and dairy farms that value the short wheelbase of the four-cylinder for front loader and yard work; its successor is the T6.120 of the T6 range.
On used tractors, operating hours, the condition of engine and injection, transmission (Range Command clutches on Plus and Elite), front-axle suspension, loader mounting and hydraulics, cab and electronics and parts supply through CNH count.
Sources: SpecCodex register, model data: New Holland T6020, New Holland Agriculture (manufacturer)
Technical data
Engine
| Engine make | New Hollandcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 112 hp (82 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 533 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,485 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,390 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 2,805 mmcorrect |
| Wheelbase | 2,412 mmcorrect |
| Unladen weight | 5,575 kgcorrect |
| Gross vehicle weight | 9,000 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | 12 V/12 R, 16 V/16 R or 24 V/24 Rcorrect |
| Gears | 17correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 176 lcorrect |
|---|
Origin and approval
| Plant | Englandcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.7 kW/t (82 kW / 5.6 t)
Power class: Large (100–180 hp)
Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T6020 have?
The New Holland T6020 delivers 112 hp.
How much does the New Holland T6020 weigh?
The unladen weight is 5,575 kg.
What is the gross vehicle weight of the New Holland T6020?
9,000 kg.
What engine does the New Holland T6020 have?
4 cylinders, 4,485 cm³ displacement, Diesel.
How fast does the New Holland T6020 go?
Top speed is 40 km/h.
What are the dimensions of the New Holland T6020?
4,390 mm × 2,400 mm × 2,805 mm.
When was the New Holland T6020 built?
Production years: 2007-2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
