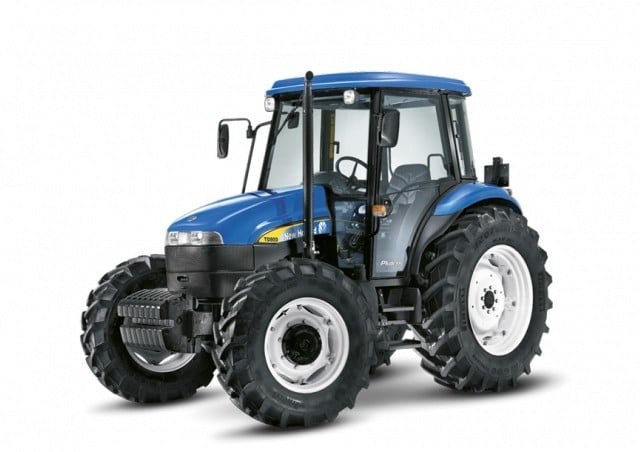

New Holland TD 90 D
Built: 2005 · Series: TD
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland TD – the entry-level range from Turkey and India, from the TD 60D and TD 95 to the TD 5 series (TD 5.75 to TD 5.115), 43.4 to 84 kW, three- and four-cylinders
This page gathers the versions of the New Holland TD, the brand's entry-level range, built in Turkey and in India. The older types TD 60D, TD 90D, TD 95 and TD 95D give the power class in the two-digit number before the letter D for the diesel version; the newer TD 5.75 to TD 5.115 models follow the TD 5 logic, in which the digit after the point roughly gives the power class in hp.
Read on 3 more paragraphs
The register lists here 13 versions with 43.4 to 84 kW (59 to 99 hp) from three- and four-cylinders of 2,931 to 4,485 cm³ displacement, unladen weights of 3,420 to 3,900 kg, gross weights of 5,900 to 6,800 kg, lengths of 3,650 to 4,280 mm, widths of 1,799 to 2,550 mm, heights of 2,555 to 2,665 mm, torques of 181 to 325 Nm and rated speeds of 2,300 to 2,500 rpm.
The TD range positions New Holland as an affordable entry point below the European T4 and T5 ranges, mainly for markets outside Western Europe, where simple mechanics and a lower purchase cost matter.
On the used TD range, engine condition and the injection pump, clutch and gearbox, and rust on mudguards and cab count; parts run through the New Holland network, though availability on the older D types can vary by region.
Sources: SpecCodex register, model data: New Holland TD, New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 89 hp (65.5 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Torque | 325 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,908 cm³correct |
Dimensions and weights
| Length | 3,976 mmcorrect |
|---|---|
| Width | 1,808 mmcorrect |
| Height | 2,602 mmcorrect |
| Unladen weight | 3,420 kgcorrect |
| Gross vehicle weight | 6,800 kgcorrect |
Drivetrain and chassis
| Gearbox | 12 V/12 R, 20 V/12 R and 12 V/4 Rcorrect |
|---|
Working data
| Fuel tank capacity | 92 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.2 kW/t (66 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TD 90 D have?
The New Holland TD 90 D delivers 89 hp.
How much does the New Holland TD 90 D weigh?
The unladen weight is 3,420 kg.
What is the gross vehicle weight of the New Holland TD 90 D?
6,800 kg.
What engine does the New Holland TD 90 D have?
4 cylinders, 3,908 cm³ displacement.
What are the dimensions of the New Holland TD 90 D?
3,976 mm × 1,808 mm × 2,602 mm.
When was the New Holland TD 90 D built?
Production years: 2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
