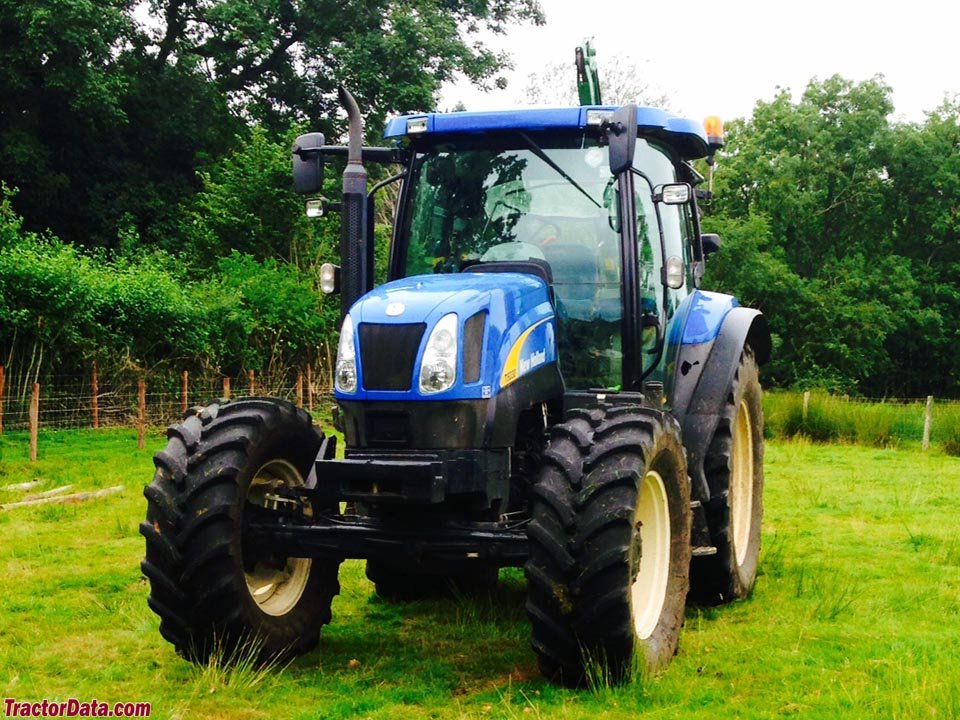

New Holland T6030 (86 kW)
Built: 2007-2010 · Series: T6030
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6030 (2007–2012) – the 117 hp six-cylinder from Basildon: Delta, Plus and Elite as equipment lines, NEF engine of 6.75 litres, Range Command and Power Command, 71 to 86 kW, 95 hp at the PTO
The T6030 belongs to the T6000 range with which New Holland replaced the TS-A range in 2007 – built in Basildon, England, the tractor plant that has belonged to Ford since 1964 and to New Holland afterwards. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-class range, 030 the power step within the range – the T6030 with 117 hp rated power is the middle model between T6010 and T6090. The equipment lines follow the suffix: Delta the simple version with mechanical transmission and without power boost, Plus the medium, Elite the upper one with Power Command powershift, front-axle suspension and electronic hydraulics; Range Command and Power Command denote the semi- and full-powershift transmissions. The engine in all versions is FPT's NEF six-cylinder of 6.75 litres, on Plus and Elite with power boost for PTO and transport work – the register span of 70.8 to 86 kW shows rated and maximum power.
Read on 3 more paragraphs
The register lists 10 versions with 70.8 to 86 kW from the six-cylinder of 6,751 cm³ at 2,200 rpm, torque from 520 to 572 Nm, 95 hp at the PTO, lift capacities from 3,406 to 5,539 kg, unladen weights from 5,020 to 5,580 kg, lengths from 4,320 to 4,950 mm, widths from 2,280 to 2,550 mm and heights from 2,805 to 3,040 mm.
The T6030 is the typical all-rounder of the Western European family farm – six-cylinder smoothness at 117 hp, a concept New Holland continued with the T6.140 and T6.150.
On used tractors, operating hours, the condition of engine and injection (common rail from Tier 3), transmission (Range Command clutches), front-axle suspension on Elite, hydraulics and electronics and parts supply through CNH are what count.
Sources: SpecCodex register, model data: New Holland T6030, New Holland Agriculture (manufacturer)
Technical data
Engine
| Engine make | New Hollandcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 117 hp (86 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 520 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,560 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 3,040 mmcorrect |
| Wheelbase | 2,734 mmcorrect |
| Unladen weight | 5,500 kgcorrect |
| Gross vehicle weight | 9,000 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | 18 V/6 R and 19 V/6 Rcorrect |
| Gears | 12correct |
Working data
| Fuel tank capacity | 285 lcorrect |
|---|
Origin and approval
| Plant | Englandcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.6 kW/t (86 kW / 5.5 t)
Power class: Large (100–180 hp)
Stronger than 73% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T6030 have?
The New Holland T6030 delivers 117 hp.
How much does the New Holland T6030 weigh?
The unladen weight is 5,500 kg.
What is the gross vehicle weight of the New Holland T6030?
9,000 kg.
What engine does the New Holland T6030 have?
6 cylinders, 6,728 cm³ displacement, Diesel.
What are the dimensions of the New Holland T6030?
4,560 mm × 2,550 mm × 3,040 mm.
When was the New Holland T6030 built?
Production years: 2007-2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
