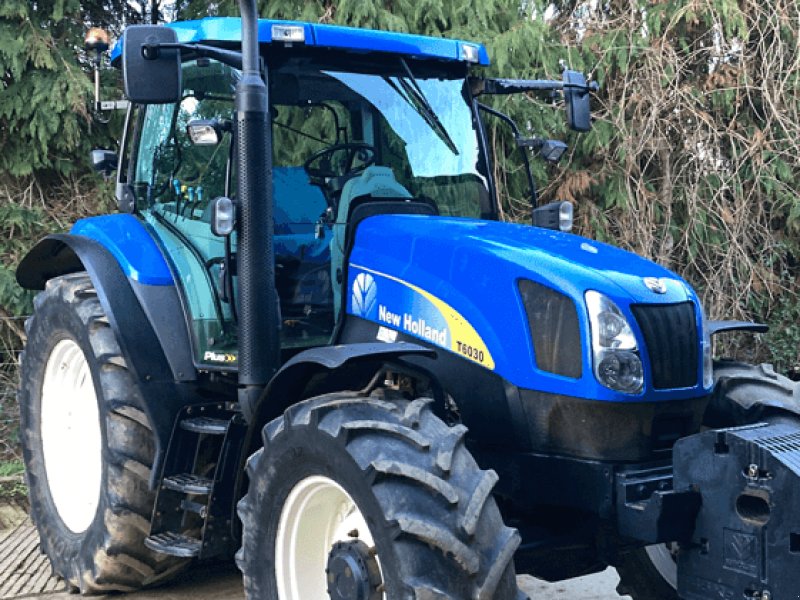

New Holland T6030 Plus 2WD
Series: T6030
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland T6030 Plus belongs to the New Holland 2WD Tractor series. Under the bonnet works a six-cylinder engine displacing 6.8 litres, producing 117 hp (85.8 kW). With a rated speed of 2,200 rpm, it is built for pulling power, not for revving.
Wheelbase is 2.65 m.
Within the range, rated power spans from 25 to 157 hp; with 117 hp, the T6030 Plus sits in the upper third. Directly alongside are the T6020 PLus with 112 hp below and the T6040 Elite with 122 hp above.
Technical data
Engine
| Power | 116.6 hp (85.8 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | turbochargedcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Wheelbase | 2,654.8correct |
|---|
Drivetrain and chassis
| Gearbox type | 16x16 Electroshiftcorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 140.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 62.1 lcorrect |
| Fuel tank capacity | 253.6 lcorrect |
Other data
| Height | 2,898.6correct |
|---|
Frequently asked questions
How much power does the New Holland T6030 Plus have?
The New Holland T6030 Plus delivers 117 hp.
What engine does the New Holland T6030 Plus have?
6 cylinders, 6,752 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
