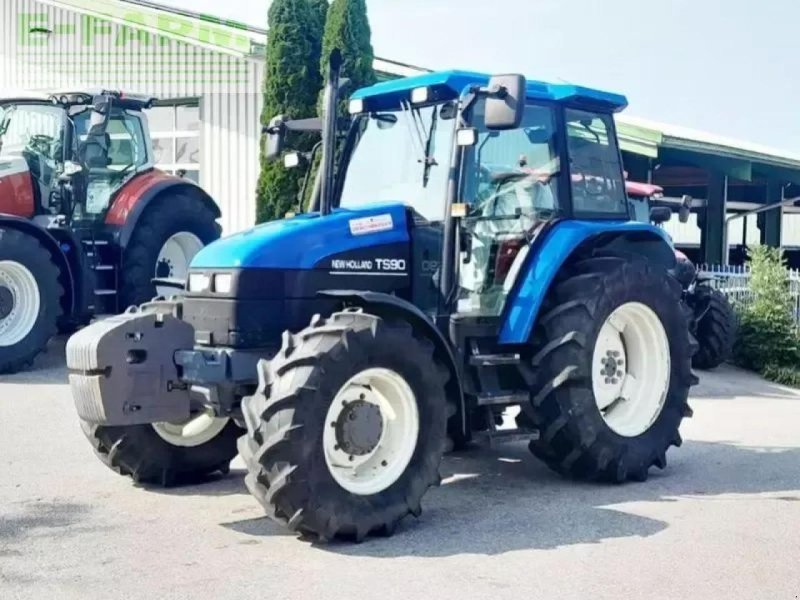

New Holland Geotech TS 90 (A)

Built: 1997–2003 · Series: TS-Baureihe

More machines from model year 1997

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland Geotech TS 90 (A) belongs to the TS series. Production: 1997–2003. The engine delivers 80 hp (58.9 kW), has 4 cylinders, with a displacement of 4,987 cm³. Torque is 325 Nm. Rated speed is 2,170 rpm. The machine is 3,810 mm long, 2,092 mm wide and 2,726 mm high. The unladen weight is 3,929 kg. The wheelbase measures 2,330 mm. Ground clearance is 390 mm. Top speed is 30 km/h. Transmission: 12 V/12 R, 16 V/16 R and 24 V/24 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 14.9 R 24 AS), rear 18.4 R 34 AS. The fuel is diesel. The bore measures 111.8 mm. The stroke is 127 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,304 rpm. Construction: unit construction (no separate frame). The TS-Baureihe series covers 4 models. Rated output within it ranges from 80 to 108 hp; the TS 90 (A) sits at the bottom of that range with 80 hp. Its immediate neighbours are the TS 100 (A) above it with 90 hp. Unladen weight within it ranges from 3,929 to 4,802 kg; here the TS 90 (A) sits at the bottom of that range with 3,929 kg. 32 New Holland Geotech models across 8 series are on record.

New Holland TS series: multi-purpose tractors from the Basildon plant of the 1990s, four types from TS 90 to TS 115 ES, 58.9 to 84.1 kW from four- and six-cylinder engines of 4,987 to 7,480cc

The TS series was introduced in the mid-1990s at New Holland's Basildon plant in Essex, the former Ford tractor factory, as successor to the Ford 40 series and forerunner of the later TM range. TS denotes the mid-to-upper multi-purpose class, available with either a four- or six-cylinder engine; the ES suffix marks a trim level with an electronically controlled powershift step. The model numbers 90 to 115 rank the tractors by power class.

Read on 3 more paragraphs

The register lists 4 versions with 58.9 to 84.1 kW from four- to six-cylinder engines of 4,987 to 7,480cc, torque from 325 to 426 Nm at 2,070 to 2,170 rpm, kerb weights from 3,929 to 4,802 kg, lengths from 3,810 to 4,397 mm, widths from 2,092 to 2,180 mm and heights from 2,726 to 2,788 mm.

The TS series positioned New Holland as a multi-purpose tractor for medium to larger arable farms across Western Europe, competing with the John Deere 6000 series, Case IH MX and Massey Ferguson 6100; Basildon production ensured a close technical kinship with the Case IH sister models.

When buying used, check operating hours, the condition of the powershift (especially on ES versions), engine and hydraulic oil-tightness, and cab suspension and air conditioning; wear parts are widely available through the CNH network, while the electronics of early ES versions are considered more failure-prone.

Sources: SpecCodex register, model data: New Holland TS-Baureihe, New Holland (CNH Industrial, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	80 hp (58.9 kW)correct
Rated speed	2,170 rpmcorrect
Torque	325 Nmcorrect
Speed at max. torque	1,304 rpmcorrect
Cylinders	4correct
Displacement	4,987 cm³correct
Bore	111.8 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,810 mmcorrect
Width	2,092 mmcorrect
Height	2,726 mmcorrect
Wheelbase	2,330 mmcorrect
Ground clearance	390 mmcorrect
Unladen weight	3,929 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12 V/12 R, 16 V/16 R and 24 V/24 Rcorrect
Front tyres	7.50-16 ASF (A: 14.9 R 24 AS)correct
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15 kW/t (59 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland Geotech TS 90 (A) have?

The New Holland Geotech TS 90 (A) delivers 80 hp.

How much does the New Holland Geotech TS 90 (A) weigh?

The unladen weight is 3,929 kg.

What engine does the New Holland Geotech TS 90 (A) have?

4 cylinders, 4,987 cm³ displacement, Diesel.

How fast does the New Holland Geotech TS 90 (A) go?

Top speed is 30 km/h.

What are the dimensions of the New Holland Geotech TS 90 (A)?

3,810 mm × 2,092 mm × 2,726 mm.

When was the New Holland Geotech TS 90 (A) built?

Production years: 1997–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
