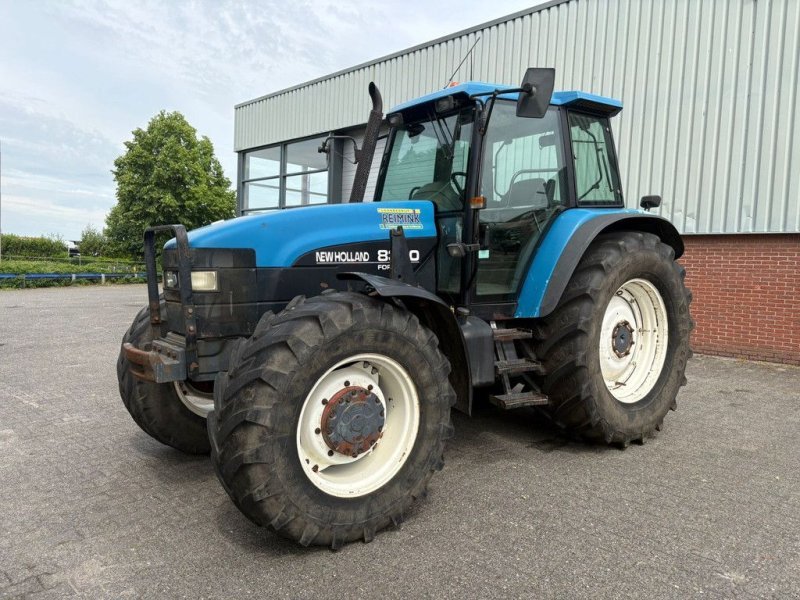

New Holland Geotech 8360 A
Built: 1996–1999 · Series: 60 er-Baureihe
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland Geotech 60 series – field tractors 8160 to 8560 A from the merger era: six-cylinders with 7.5-litre displacement, 74 to 118 kW and up to 652 Nm torque
The Geotech 60 series groups field tractors of the 8160, 8260, 8360 A and 8560 A types, whose register name dates from New Holland's merger era in the 1990s, when Ford New Holland and Fiatagri combined into today's New Holland group. All four models carry the same six-cylinder diesel engine with 7.5 litres of displacement, with the rising type number from 8160 to 8560 denoting the power step within the series.
Read on 3 more paragraphs
The register lists 4 versions with 73.5 to 117.7 kW from the shared six-cylinder with 7,478 cm³ displacement. Unladen weights range from 5,250 to 6,185 kg, lengths from 4,560 to 4,690 mm, widths from 2,310 to 2,420 mm, and heights from 2,800 to 2,890 mm; torque lies between 403 and 652 Nm at rated speeds of 2,200 to 2,300 rpm.
As a series for farms with medium to high draft-power needs, the Geotech 60 range targeted mixed arable farms, competing with comparable series from John Deere, Case IH and Massey Ferguson of the same era. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.
When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics and PTO, the tightness of turbocharger and cooling system, and wear on the front axle and tyres all matter. Spare parts run through the New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.
Sources: SpecCodex register, model data: New Holland Geotech 60er-Baureihe, New Holland Agriculture (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (99.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 569 Nmcorrect |
| Speed at max. torque | 1,347 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,478 cm³correct |
| Bore | 111.8 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,690 mmcorrect |
|---|---|
| Width | 2,420 mmcorrect |
| Height | 2,890 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 5,925 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/6 R or 24 V/12 Rcorrect |
| Front tyres | 14.9 R 28 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Where this model stands
Power-to-weight ratio: 16.8 kW/t (99 kW / 5.9 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland Geotech 8360 A have?
The New Holland Geotech 8360 A delivers 135 hp.
How much does the New Holland Geotech 8360 A weigh?
The unladen weight is 5,925 kg.
What engine does the New Holland Geotech 8360 A have?
6 cylinders, 7,478 cm³ displacement, Diesel.
How fast does the New Holland Geotech 8360 A go?
Top speed is 30 km/h.
What are the dimensions of the New Holland Geotech 8360 A?
4,690 mm × 2,420 mm × 2,890 mm.
When was the New Holland Geotech 8360 A built?
Production years: 1996–1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
