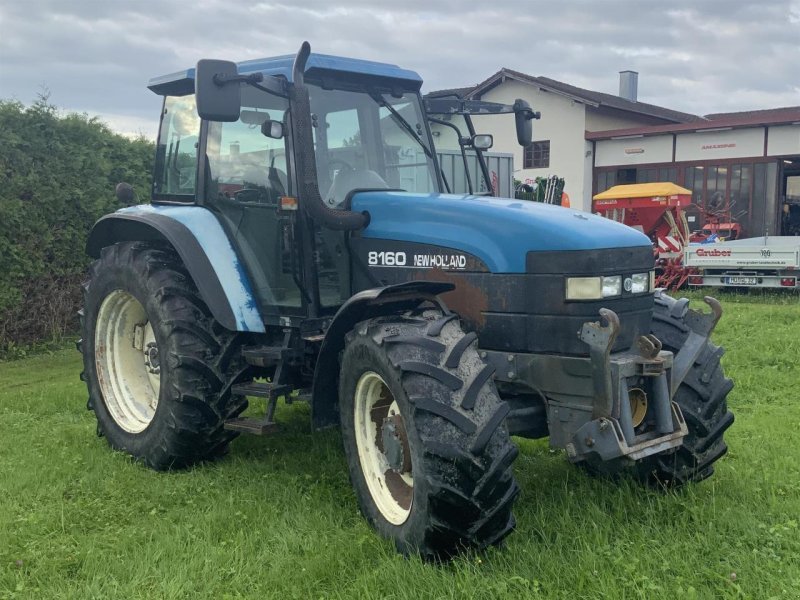

New Holland Geotech 8160

Built: 1996–1999 · Series: 60 er-Baureihe

More machines from model year 1996

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 8160, New Holland Geotech offers a model from the 60er series. Production: 1996–1999. The engine delivers 100 hp (73.5 kW), has 6 cylinders, with a displacement of 7,478 cm³. Torque is 403 Nm. Rated speed is 2,200 rpm. The machine is 4,560 mm long, 2,350 mm wide and 2,800 mm high. The unladen weight is 5,250 kg. The wheelbase measures 2,723 mm. Ground clearance is 360 mm. Top speed is 30 km/h. Transmission: 18 V/6 R and 24 V/12 R. The engine is water-cooled. Tyres: front 14.9 R 28 AS, rear 18.4 R 38 AS. The fuel is diesel. The bore measures 111.8 mm. The stroke is 127 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,413 rpm. Construction: unit construction (no separate frame). The 60 er-Baureihe series covers 4 models. Rated output within it ranges from 100 to 160 hp; the 8160 sits at the bottom of that range with 100 hp. Its immediate neighbours are the 8260 above it with 115 hp. Unladen weight within it ranges from 5,250 to 6,185 kg; here the 8160 sits at the bottom of that range with 5,250 kg. 32 New Holland Geotech models across 8 series are on record.

New Holland Geotech 60 series – field tractors 8160 to 8560 A from the merger era: six-cylinders with 7.5-litre displacement, 74 to 118 kW and up to 652 Nm torque

The Geotech 60 series groups field tractors of the 8160, 8260, 8360 A and 8560 A types, whose register name dates from New Holland's merger era in the 1990s, when Ford New Holland and Fiatagri combined into today's New Holland group. All four models carry the same six-cylinder diesel engine with 7.5 litres of displacement, with the rising type number from 8160 to 8560 denoting the power step within the series.

Read on 3 more paragraphs

The register lists 4 versions with 73.5 to 117.7 kW from the shared six-cylinder with 7,478 cm³ displacement. Unladen weights range from 5,250 to 6,185 kg, lengths from 4,560 to 4,690 mm, widths from 2,310 to 2,420 mm, and heights from 2,800 to 2,890 mm; torque lies between 403 and 652 Nm at rated speeds of 2,200 to 2,300 rpm.

As a series for farms with medium to high draft-power needs, the Geotech 60 range targeted mixed arable farms, competing with comparable series from John Deere, Case IH and Massey Ferguson of the same era. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics and PTO, the tightness of turbocharger and cooling system, and wear on the front axle and tyres all matter. Spare parts run through the New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: New Holland Geotech 60er-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	100 hp (73.5 kW)correct
Rated speed	2,200 rpmcorrect
Torque	403 Nmcorrect
Speed at max. torque	1,413 rpmcorrect
Cylinders	6correct
Displacement	7,478 cm³correct
Bore	111.8 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,560 mmcorrect
Width	2,350 mmcorrect
Height	2,800 mmcorrect
Wheelbase	2,723 mmcorrect
Ground clearance	360 mmcorrect
Unladen weight	5,250 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18 V/6 R and 24 V/12 Rcorrect
Front tyres	14.9 R 28 AScorrect
Rear tyres	18.4 R 38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 14 kW/t (74 kW / 5.2 t)

Power class: Universal (40–100 hp)

Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland Geotech 8160 have?

The New Holland Geotech 8160 delivers 100 hp.

How much does the New Holland Geotech 8160 weigh?

The unladen weight is 5,250 kg.

What engine does the New Holland Geotech 8160 have?

6 cylinders, 7,478 cm³ displacement, Diesel.

How fast does the New Holland Geotech 8160 go?

Top speed is 30 km/h.

What are the dimensions of the New Holland Geotech 8160?

4,560 mm × 2,350 mm × 2,800 mm.

When was the New Holland Geotech 8160 built?

Production years: 1996–1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
