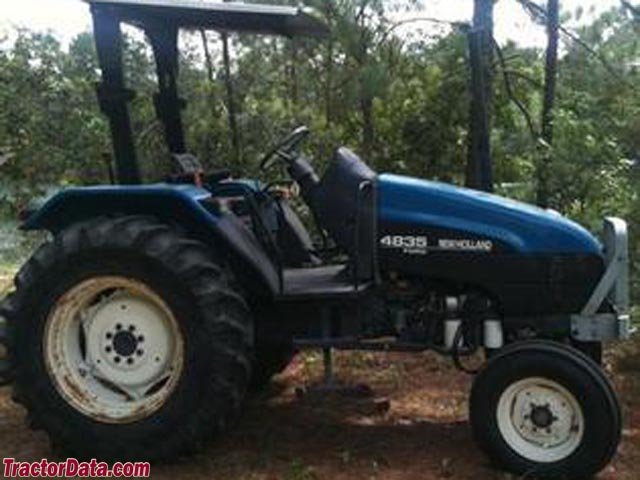

New Holland 4835 Turbo
Series: 35er-Serie
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland 35 series – all-purpose tractors with Ford heritage: 4835 and 4835 Turbo, four-cylinder of 3,613 cm³, 48 to 53 kW (65 to 72 hp), 3,270 to 3,440 kg, torque 198 to 247 Nm
The 35 series stands in the tradition line of Ford tractors, whose European business became part of New Holland in 1991 following the merger with Fiatagri. The four-digit model designation follows the scheme common at Ford and early New Holland, in which the last two digits give the series, here the 35 class; the Turbo suffix marks the turbocharged, more powerful version of the 4835 with otherwise the same four-cylinder engine.
Read on 3 more paragraphs
The register lists 2 versions with 48 to 53 kW (65 to 72 hp) from four-cylinder engines of 3,613 cm³, unladen weights of 3,270 to 3,440 kg, a length of 3,980 mm, a width of 1,840 mm and a height of 2,480 mm; torque ranges from 198 to 247 Nm at a rated speed of 2,500 rpm.
As a mid-range all-purpose tractor, the 35 series targeted mixed arable and livestock farms that needed an uncomplicated, mechanically simple tractor for fieldwork, front-loader duty and transport, putting it in competition with comparable ranges from other makers in this power class.
When buying used, on the Turbo version check the condition of the turbocharger, and generally the wear on clutch and gearbox, the tightness of hydraulics and lift, and rust on the cab and mudguards; parts run through the New Holland dealer network, which continues to support the Ford-heritage models.
Sources: SpecCodex register, model data: New Holland 35er-Serie, New Holland (CNH, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 72 hp (53 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 247 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,613 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 1,840 mmcorrect |
| Height | 2,480 mmcorrect |
| Wheelbase | 2,310 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 3,440 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V / 12Rcorrect |
| Forward gears | 24correct |
| Reverse gears | 12correct |
| Front tyres | 12, 4 R 24correct |
| Rear tyres | 13, 6 R 36correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 115 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.4 kW/t (53 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland 4835 Turbo have?
The New Holland 4835 Turbo delivers 72 hp.
How much does the New Holland 4835 Turbo weigh?
The unladen weight is 3,440 kg.
What engine does the New Holland 4835 Turbo have?
4 cylinders, 3,613 cm³ displacement, Diesel.
How fast does the New Holland 4835 Turbo go?
Top speed is 30 km/h.
What are the dimensions of the New Holland 4835 Turbo?
3,980 mm × 1,840 mm × 2,480 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
