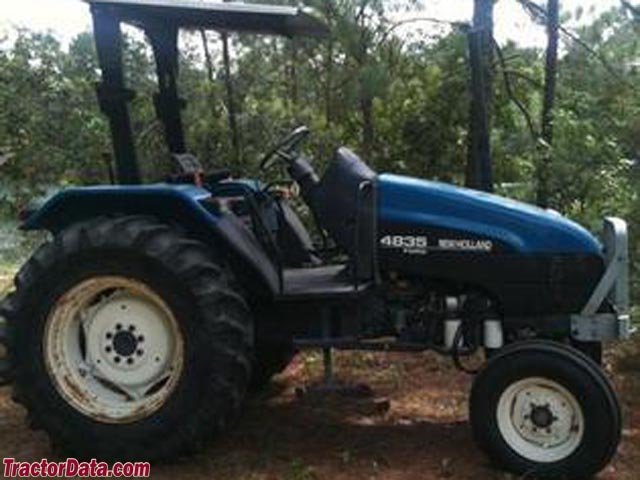

New Holland 4835

Built: 1996–1998 · Series: 35er-Serie

More machines from model year 1996

Source: https://www.tractordata.com/farm-tractors/000/6/1/614-new-ho

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 4835, New Holland offers a model from the 35er series. Production: 1996–1998. The engine delivers 65 hp (48 kW), has 4 cylinders, with a displacement of 3,613 cm³. Torque is 198 Nm. Rated speed is 2,500 rpm. The machine is 3,980 mm long, 1,840 mm wide and 2,480 mm high. The unladen weight is 3,270 kg. The wheelbase measures 2,340 mm. Ground clearance is 350 mm. Top speed is 30 km/h. The tank holds 110 litres. Transmission: 24V / 12R. The engine is water-cooled. Tyres: front 10.00-16 ( A: 13.6 R 24 ), rear 16.9 R 34. The fuel is diesel. The bore measures 100 mm. The stroke is 115 mm. The compression ratio is 17:1. Maximum torque is reached at 1,500 rpm. The gearbox offers 24 forward gears. There are also 12 reverse gears. The linkage is category II. Rated output across the New Holland range ranges from 12.1 to 621.5 hp; the 4835 sits at the bottom of that range with 65 hp. Its immediate neighbours are the T4020 below it with 64.9 hp and the NH Ghazi above it with 65.9 hp. Rated output across the New Holland range ranges from 59 to 535 hp; here the 4835 sits at the bottom of that range with 65 hp. 1448 New Holland models across 71 series are on record.

New Holland 35 series – all-purpose tractors with Ford heritage: 4835 and 4835 Turbo, four-cylinder of 3,613 cm³, 48 to 53 kW (65 to 72 hp), 3,270 to 3,440 kg, torque 198 to 247 Nm

The 35 series stands in the tradition line of Ford tractors, whose European business became part of New Holland in 1991 following the merger with Fiatagri. The four-digit model designation follows the scheme common at Ford and early New Holland, in which the last two digits give the series, here the 35 class; the Turbo suffix marks the turbocharged, more powerful version of the 4835 with otherwise the same four-cylinder engine.

Read on 3 more paragraphs

The register lists 2 versions with 48 to 53 kW (65 to 72 hp) from four-cylinder engines of 3,613 cm³, unladen weights of 3,270 to 3,440 kg, a length of 3,980 mm, a width of 1,840 mm and a height of 2,480 mm; torque ranges from 198 to 247 Nm at a rated speed of 2,500 rpm.

As a mid-range all-purpose tractor, the 35 series targeted mixed arable and livestock farms that needed an uncomplicated, mechanically simple tractor for fieldwork, front-loader duty and transport, putting it in competition with comparable ranges from other makers in this power class.

When buying used, on the Turbo version check the condition of the turbocharger, and generally the wear on clutch and gearbox, the tightness of hydraulics and lift, and rust on the cab and mudguards; parts run through the New Holland dealer network, which continues to support the Ford-heritage models.

Sources: SpecCodex register, model data: New Holland 35er-Serie, New Holland (CNH, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	65 hp (48 kW)correct
Rated speed	2,500 rpmcorrect
Torque	198 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	4correct
Displacement	3,613 cm³correct
Bore	100 mmcorrect
Stroke	115 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,980 mmcorrect
Width	1,840 mmcorrect
Height	2,480 mmcorrect
Wheelbase	2,340 mmcorrect
Ground clearance	350 mmcorrect
Unladen weight	3,270 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	24V / 12Rcorrect
Forward gears	24correct
Reverse gears	12correct
Front tyres	10.00-16 ( A: 13.6 R 24 )correct
Rear tyres	16.9 R 34correct
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	110 lcorrect

Other data

Linkage category	Cat IIcorrect

Where this model stands

Power-to-weight ratio: 14.7 kW/t (48 kW / 3.3 t)

Power class: Universal (40–100 hp)

Stronger than 45% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland 4835 have?

The New Holland 4835 delivers 65 hp.

How much does the New Holland 4835 weigh?

The unladen weight is 3,270 kg.

What engine does the New Holland 4835 have?

4 cylinders, 3,613 cm³ displacement, Diesel.

How fast does the New Holland 4835 go?

Top speed is 30 km/h.

What are the dimensions of the New Holland 4835?

3,980 mm × 1,840 mm × 2,480 mm.

When was the New Holland 4835 built?

Production years: 1996–1998.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
