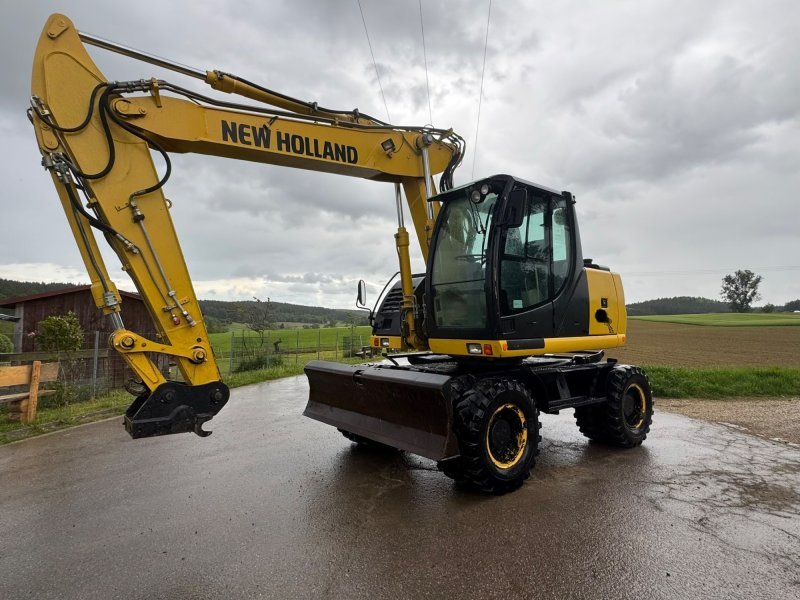

New Holland 135SRL – specifications
Series: New Holland Hydraulic Excavator
With the 135SRL, New Holland offers a model from the New Holland Hydraulic Excavator series. The engine delivers 63.4 kW, has 4 cylinders, with a displacement of 4,329.5 cm³. Rated speed is 2,050 rpm. The unladen weight is 14,700 kg. Ground clearance is 457.2 mm. The tank holds 168.1 litres. The pump delivers 236.2 l/min. The hydraulic tank holds 140.1 litres. Working pressure is 377 bar. The cooling system holds 18.2 litres. The oil fill is 13.2 litres. The electrical system runs on 24 V. The engine fitted is the 4BG1TA. The New Holland Hydraulic Excavator series covers 35 models. Rated output within it ranges from 60.4 to 344.5 kW; the 135SRL sits at the bottom of that range with 63.4 kW. Its immediate neighbours are the 115SR below it with 60.4 kW and the E130 above it with 70.1 kW. Unladen weight within it ranges from 12,800 to 79,000 kg; here the 135SRL sits at the bottom of that range with 14,700 kg. 1448 New Holland models across 71 series are on record.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland Hydraulic Excavator E130 to E485: from B-generation to C-generation crawler excavators, 60 to 344 kW, 12.8 to 79 t operating weight, Tier 4 Final without a particulate filter
New Holland Construction builds its crawler excavators with Japan's Kobelco, which is why the line is often labeled New Holland Kobelco. The "New Holland Hydraulic Excavator" bucket here groups 35 live-listed E-Series models, from the compact E130 up to the large E485.
Read on 3 more paragraphs
The number after the E corresponds roughly to size class and operating weight: across all 35 models, operating weight ranges from 12,800 to 79,000 kg, with engine output from 60 to 344 kW. The letter after it marks the generation – the B-Series was followed by the C-Series, which the manufacturer states delivers roughly 5% more power. Suffixes like SR (Short Reach, a shorter tail swing for confined sites) mark further variants.
Tier 4 Final emissions standards marked a turning point: newer models meet it via cooled exhaust gas recirculation and a diesel oxidation catalyst, without a particulate filter. Displacement (3,900 to 15,600 cm³) and cylinder count (4 to 6) are recorded for over 30 models, torque (390 to 998 Nm) for 16.
Buying used, pay attention to boom and dipper bushings, undercarriage track condition, and the tightness of the main and swing pumps. Models such as E130, E175, E215 and E385 appear regularly in the listed inventory – but the trailing number alone says nothing about build year; that's what the serial plate is for.
Sources: SpecCodex register, model data: New Holland Hydraulic Excavator, – Ohne Dieselpartikelfilter: Abgasnorm Tier 4 Final bei Raupenbaggern erreicht, – Kettenbagger Kurzheck Kobelco, New Holland E200 SR (Beispielangebot, SR/C-Serie)
Technical data
Engine
| Engine model | 4BG1TAcorrect |
|---|---|
| Power | 63.4 kWcorrect |
| Rated speed | 2,050 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,329.5 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 18.2 lcorrect |
| Engine oil capacity | 13.2 lcorrect |
Dimensions and weights
| Ground clearance | 457.2 mmcorrect |
|---|---|
| Unladen weight | 14,700 kgcorrect |
Working data
| Pump flow | 236.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 140.1 lcorrect |
| Hydraulic pressure | 377 barcorrect |
| Fuel tank capacity | 168.1 lcorrect |
Other data
| Cab height | 2,740.2 mmcorrect |
|---|---|
| System voltage | 24 Vcorrect |
Frequently asked questions
More machines with this engine (4BG1TA, 2)
Where this model stands
Power-to-weight ratio: 4.3 kW/t (63 kW / 14.7 t)
Stronger than 20% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
