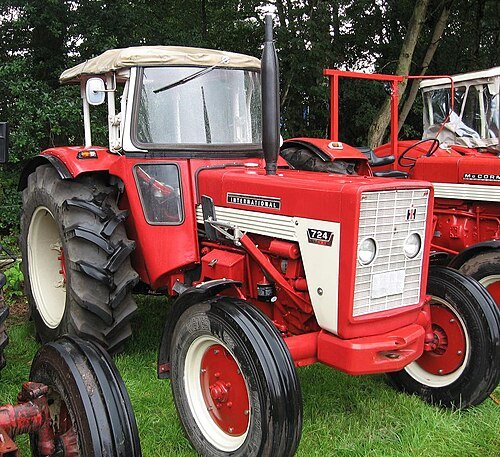

McCormick 724 (A)

Built: 9/1969–4/1974 · Series: CM-Baureihe

More machines from model year 1969

Source: https://de.wikibooks.org/wiki/Traktorenlexikon:_McCormick_72

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 724 (A) from McCormick is part of the CM series. Production: 9/1969–4/1974. The engine delivers 67 hp (49.3 kW), has 4 cylinders, with a displacement of 3,911 cm³. Torque is 247 Nm. Rated speed is 2,200 rpm. The machine is 3,337 mm long, 1,990 mm wide and 2,489 mm high. The unladen weight is 3,925 kg. The wheelbase measures 2,120 mm. Ground clearance is 453 mm. Top speed is 25 km/h. The tank holds 70 litres. The engine is water-cooled. Tyres: front 7.50-18 ASF (A: 10-24 AS), rear 14-34 AS. The fuel is diesel. The bore measures 98.4 mm. The stroke is 128.5 mm. Construction: unit construction (no separate frame). The linkage is category I/II. The PTO runs at 540/1000 rpm. Around 12.442 units were built. The CM-Baureihe series covers 7 models. Rated output within it ranges from 26 to 74 hp; the 724 (A) sits at the top of that range with 67 hp. Its immediate neighbours are the 523 (A) below it with 48 hp and the 824 (A) above it with 74 hp. Unladen weight within it ranges from 1,876 to 3,925 kg; here the 724 (A) sits at the top of that range with 3,925 kg. 381 McCormick models across 40 series are on record.

McCormick CM series 323 to 824 – compact and mid-range tractors of the brand revived in 2001: three- and four-cylinder diesels, 19 to 54 kW, built by ARGO Tractors in Italy

The name McCormick goes back to Cyrus McCormick and his reaper company, which was absorbed into International Harvester in 1902 and served there as a tractor and harvester brand name into the 1980s. In 2001 the successor group, Case IH, sold the name rights to the Italian ARGO group (Landini, Valpadana), which has since run McCormick as an independent tractor brand headquartered in Fabbrico near Reggio Emilia. The CM series covers the compact and lower mid-range class; the type number orders the models from 323 to 824 by ascending power, and the suffix A marks an equipment variant of the larger 523, 724 and 824 models.

Read on 3 more paragraphs

The register lists here 7 versions with 19.1 to 54.4 kW (26 to 67 hp) from three- and four-cylinder diesel engines of 1,825 to 3,911 cm³, torque from 109 to 251 Nm at 1,900 to 2,300 rpm, unladen weights from 1,876 to 3,925 kg, lengths from 3,110 to 3,390 mm, widths from 1,504 to 1,990 mm and heights from 1,434 to 2,489 mm.

In this power segment the CM series targets smaller and medium-sized farms, fruit and wine growing, and municipal users, competing there with Same, Deutz-Fahr and the compact classes of Kubota and New Holland; production takes place at the Italian ARGO plants.

On used examples, what counts is operating hours and service history of the diesel engine, the condition of clutch and gearbox, the hydraulic system and PTO, and rust on wings and cab; parts run through the McCormick/ARGO dealer network, and the series shares some components technically with Landini.

Sources: SpecCodex register, model data: McCormick CM-Baureihe, McCormick (ARGO Tractors, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	67 hp (49.3 kW)correct
Rated speed	2,200 rpmcorrect
Torque	247 Nmcorrect
Cylinders	4correct
Displacement	3,911 cm³correct
Bore	98.4 mmcorrect
Stroke	128.5 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,337 mmcorrect
Width	1,990 mmcorrect
Height	2,489 mmcorrect
Wheelbase	2,120 mmcorrect
Ground clearance	453 mmcorrect
Unladen weight	3,925 kgcorrect

Drivetrain and chassis

Drive	8 V/4 R oder 12 V/4 Rcorrect
Front tyres	7.50-18 ASF (A: 10-24 AS)correct
Rear tyres	14-34 AScorrect
Top speed	25 km/hcorrect

Working data

Fuel tank capacity	70 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	12,442correct

Other data

Linkage category	Cat I/IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 12.6 kW/t (49 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the McCormick 724 (A) have?

The McCormick 724 (A) delivers 67 hp.

How much does the McCormick 724 (A) weigh?

The unladen weight is 3,925 kg.

What engine does the McCormick 724 (A) have?

4 cylinders, 3,911 cm³ displacement, Diesel.

How fast does the McCormick 724 (A) go?

Top speed is 25 km/h.

What are the dimensions of the McCormick 724 (A)?

3,337 mm × 1,990 mm × 2,489 mm.

When was the McCormick 724 (A) built?

Production years: 9/1969–4/1974.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
