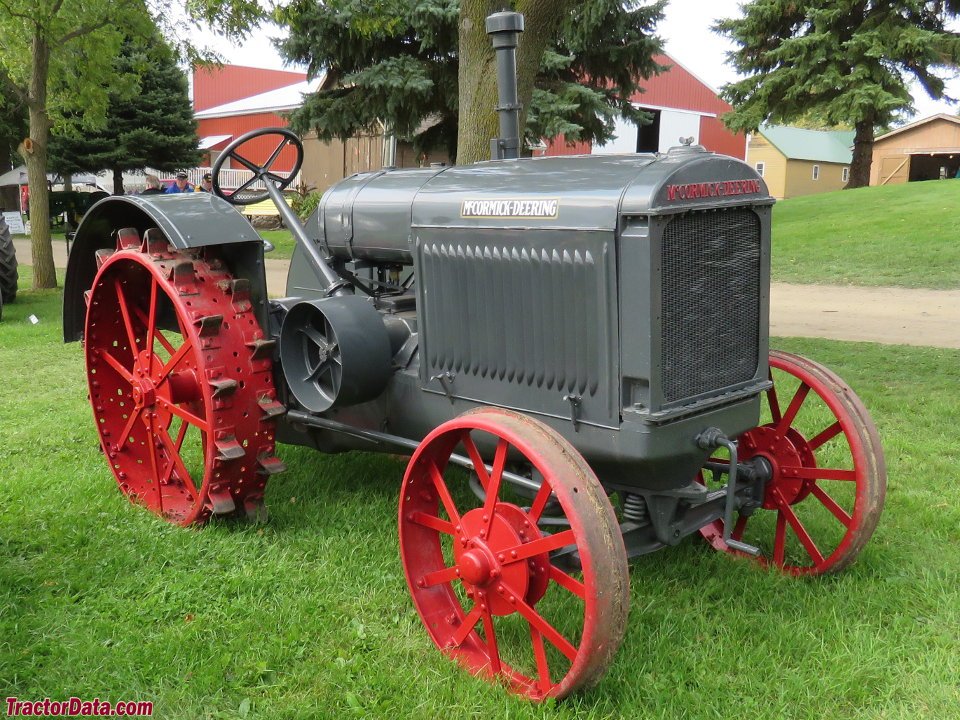

Mccormick Deering 15-30
Built: 1921-1934 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick-Deering – other models: from the 10-20 and 15-30 to International Harvester's W, O and I series, 17 to 50 hp, petrol, paraffin and diesel engines
This collective page gathers McCormick-Deering tractors outside the named series. McCormick-Deering was the tractor brand of the International Harvester Company (IHC), formed in 1902 from the merger of the McCormick Harvesting Machine Company and the Deering Harvester Company. The 10-20 (from 1923) and 15-30 (from 1921) were among the first mass-produced IHC tractors. Letter prefixes on later ranges denoted the application: W marked the standard version (W-30, W-40), O the low, shrouded orchard versions (O-12, O-14, OS-4, OS-6), I the industrial versions (I-12, IA-40, ID-40), and D denoted diesel power (WD-40, WD-9).
Read on 3 more paragraphs
The register lists 30 versions from 17 to 50 hp with four- and six-cylinder engines, overwhelmingly built by International, that is International Harvester, itself. Fuel choices included petrol, paraffin (kerosene) and diesel side by side, typical of American tractors from the 1920s to the 1940s, along with distillate fuel.
McCormick-Deering and the Farmall range that followed it made International Harvester the largest tractor maker in the United States during the 1920s and 1930s, ahead of John Deere and Ford. The W, O and I ranges each served their own market segment, from the standard farm through orchards to industrial use.
On these pre-war and early post-war tractors, the condition of the carburettor or paraffin pre-heating system, the cylinder head and the radiator matter most. On O models with their low bodywork, the shrouding is often damaged or missing entirely; on the industrial I versions, check the often non-standard tyres. Spares are supplied by an active network of American IHC specialists.
Sources: SpecCodex register, model data: Mccormick Deering (weitere Modelle)
Technical data
Engine
| Engine make | Internationalcorrect |
|---|---|
| Engine model | Unknowncorrect |
| Fuel | Kerosincorrect |
| Power | 32.9 hpcorrect |
| Cylinders | 4correct |
| Displacement | 382 cicorrect |
| Bore | 114.30 (4.5 in)correct |
| Stroke | 152.40 (6 in)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 137 in (3479.8 mm)correct |
|---|---|
| Width | 65 in (1,651 mm)correct |
| Height | (steering wheel) 70 in, (radiator) 64 in and (high air-cleaner intake pipe) 96 incorrect |
| Wheelbase | 85 in (2,159 mm)correct |
| Turning circle | 16 1/2 ftcorrect |
| Unladen weight | 5, 850 lbs (1921-28), 6, 540 lbs (1929-34)correct |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | sliding-gear transmissioncorrect |
| Gearbox make | Internationalcorrect |
| Forward gears | 3correct |
| Reverse gears | 1correct |
| Clutch | 'Spider' multi-plate typecorrect |
| Front tyres | Steel 34" (diameter) x 6" (face), 52" (tread)correct |
| Rear tyres | Steel 50" (diameter) x 12" (face), 53" (tread)correct |
Working data
| Fuel tank capacity | Fuel capacity: 19 gal (86.37 L), Aux. fuel: 3/4 gal (3.4 L)correct |
|---|
Origin and approval
| Plant | Milwaukee Works, Milwaukee, Wisconsin, USAcorrect |
|---|---|
| Units built | 157.366correct |
Other data
| List price when new | $1250 (1923), $1350 (1929) and $1050 (from 1930)correct |
|---|---|
| Predecessor | International 15-30 Gear Drivecorrect |
| Successor | The W-40 range (McCormick-Deering WA-40, McCormick-Deering WK-40 & McCormick-Deering WD-40)correct |
Frequently asked questions
How much power does the Mccormick Deering 15-30 have?
The Mccormick Deering 15-30 delivers 32.9 hp.
What engine does the Mccormick Deering 15-30 have?
4 cylinders, Kerosin.
When was the Mccormick Deering 15-30 built?
Production years: 1921-1934.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
