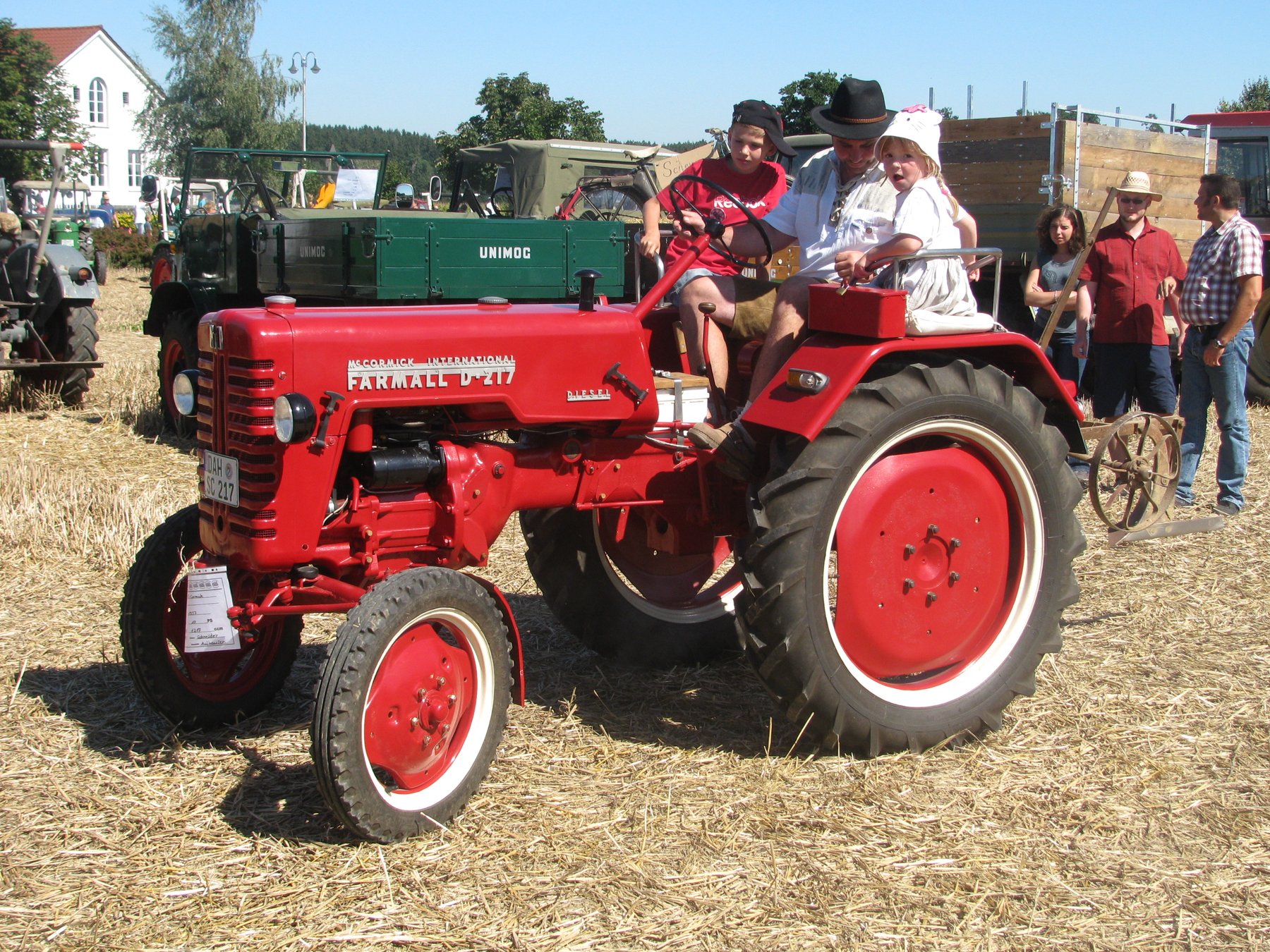

McCormick D 217 Farmall
Built: 1956–1960 · Series: D-Serie
More machines from model year 1956
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
McCormick D series – five tractors from the IH plant in Neuss from the 1950s, the D 217 Farmall to the D-326, two- and three-cylinder engines of 12.5 to 18 kW, 1,065 to 1,536 kg unladen weight
The McCormick D series was built in the 1950s at the International Harvester plant in Neuss and comprised both standard tractors and narrow-tread Farmall versions for row-crop work; the register lists here the D 217 Farmall, the D-217 Standard, the D-320 Farmall as well as the D-324 and D-326. The number in the type designation names the model size, the Farmall suffix the narrow build for row crops.
Read on 3 more paragraphs
The register lists here five versions with 12.5 to 18 kW, or 17 to 24.5 hp, from two- or three-cylinder engines of 1,217 to 1,825 cm³ displacement, torque from 86 to 99 Nm, unladen weights from 1,065 to 1,536 kg, lengths from 2,570 to 2,750 mm, widths from 1,581 to 1,640 mm and heights from 1,397 to 1,560 mm at a rated speed of 1,900 rpm.
As compact diesel tractors for smaller and medium farms, the D series competed with the small tractors from Deutz, Fendt and Eicher on the German and European market, marking the shift of many farms from horse teams to diesel tractors.
When buying used, the condition of the injection pump and cooling system, wear on clutch and gearbox and corrosion on sheet-metal parts and wings matter; spare parts for the Neuss-built IH engines are available through dealers specialising in historic farm machinery. On the older standard versions, steering geometry and the condition of the front axle also deserve attention.
Sources: SpecCodex register, model data: McCormick D-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 17 hp (12.5 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,217 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,700 mmcorrect |
|---|---|
| Width | 1,585 mmcorrect |
| Height | 1,560 mmcorrect |
| Wheelbase | 1,730 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 1,065 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/1 Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Front tyres | 4.50-16 ASFcorrect |
| Rear tyres | 8-24 AScorrect |
| Top speed | 18 km/hcorrect |
Working data
| Fuel tank capacity | 27 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 5,416correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 11.7 kW/t (12 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 5% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick D 217 Farmall have?
The McCormick D 217 Farmall delivers 17 hp.
How much does the McCormick D 217 Farmall weigh?
The unladen weight is 1,065 kg.
What engine does the McCormick D 217 Farmall have?
2 cylinders, 1,217 cm³ displacement, Diesel.
How fast does the McCormick D 217 Farmall go?
Top speed is 18 km/h.
What are the dimensions of the McCormick D 217 Farmall?
2,700 mm × 1,585 mm × 1,560 mm.
When was the McCormick D 217 Farmall built?
Production years: 1956–1960.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
