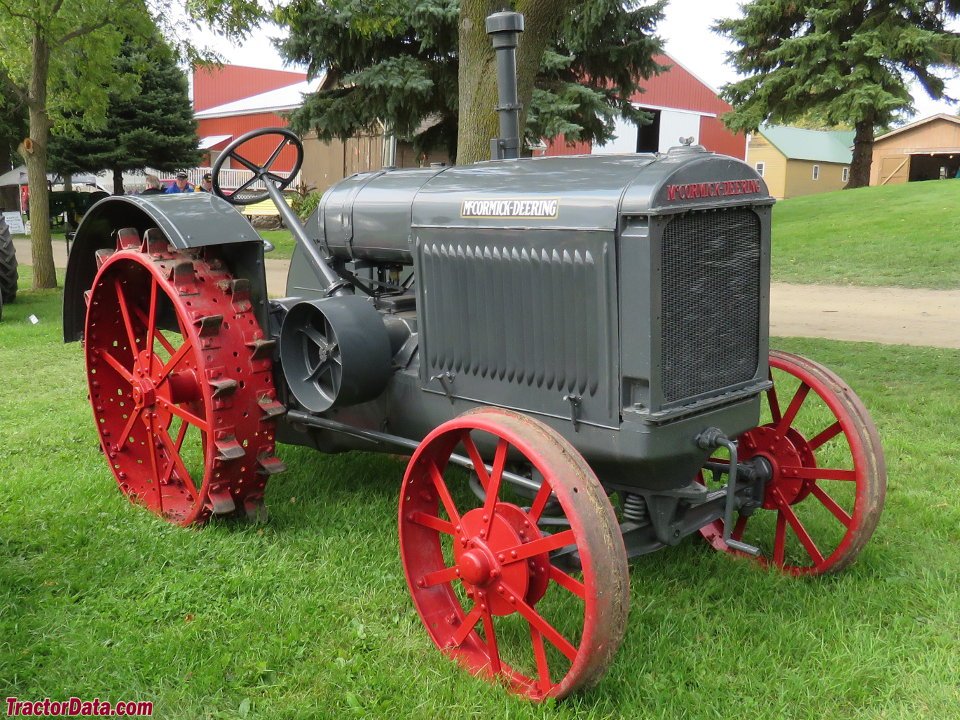

Mccormick Deering FS
Built: 1940–1949 · Series: F-Reihe
More machines from model year 1940
McCormick-Deering F series – early standard tractors from International Harvester: DF 25, FG, FG D-2 and FS with two- to four-cylinder engines, 15 to 18 kW and diesel or petrol/kerosene power
The McCormick-Deering F series denotes early standard tractors under the McCormick-Deering brand, under which International Harvester sold its agricultural machinery in the first half of the 20th century. International Harvester was formed in 1902 from the merger of the McCormick Harvesting Machine Company with the Deering Harvester Company and other farm equipment makers; the double name remained in use as a tractor and harvester brand for decades. The four models DF 25 (A/T), FG, FG D-2 and FS differ in engine and fuel type: two of the four versions run on diesel, two on kerosene or petrol, reflecting the era's common practice of offering the same tractor type with different engine variants.
Read on 3 more paragraphs
The register lists 4 versions with 14.6 to 18.3 kW from two- to four-cylinder engines with 2,043 to 2,356 cm³ displacement. Unladen weights range from 1,700 to 1,970 kg, lengths from 3,040 to 3,180 mm, widths from 1,640 to 2,000 mm, and heights from 1,470 to 1,720 mm.
As standard tractors with a rigid frame and equal track width, the F series targeted farms that primarily needed draft power for tillage and belt work, unlike the narrower row-crop tractors of the same era. The choice between a diesel and a kerosene/petrol engine let farms match the tractor to locally available fuel.
On these historic tractors, the condition of the cylinder head and cooling system, the tightness of the fuel system depending on engine variant, wear on steering and clutch, and the condition of sheet metal and paintwork all matter. Spare parts for this vintage today come mainly from specialist vintage-tractor parts dealers and reproduction parts.
Sources: SpecCodex register, model data: McCormick-Deering F-Reihe
Technical data
Engine
| Fuel | Petroleum/Benzincorrect |
|---|---|
| Power | 20 hp (14.6 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,043 cm³correct |
| Bore | 80 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,135 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Height | 1,700 mmcorrect |
| Wheelbase | 1,990 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 1,710 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Front tyres | 610 x 90correct |
| Rear tyres | 1.370 x 150correct |
| Top speed | 7 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 1,636correct |
Where this model stands
Power-to-weight ratio: 8.5 kW/t (15 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 7% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mccormick Deering FS have?
The Mccormick Deering FS delivers 20 hp.
How much does the Mccormick Deering FS weigh?
The unladen weight is 1,710 kg.
What engine does the Mccormick Deering FS have?
4 cylinders, 2,043 cm³ displacement, Petroleum/Benzin.
How fast does the Mccormick Deering FS go?
Top speed is 7 km/h.
What are the dimensions of the Mccormick Deering FS?
3,135 mm × 1,900 mm × 1,700 mm.
When was the Mccormick Deering FS built?
Production years: 1940–1949.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
