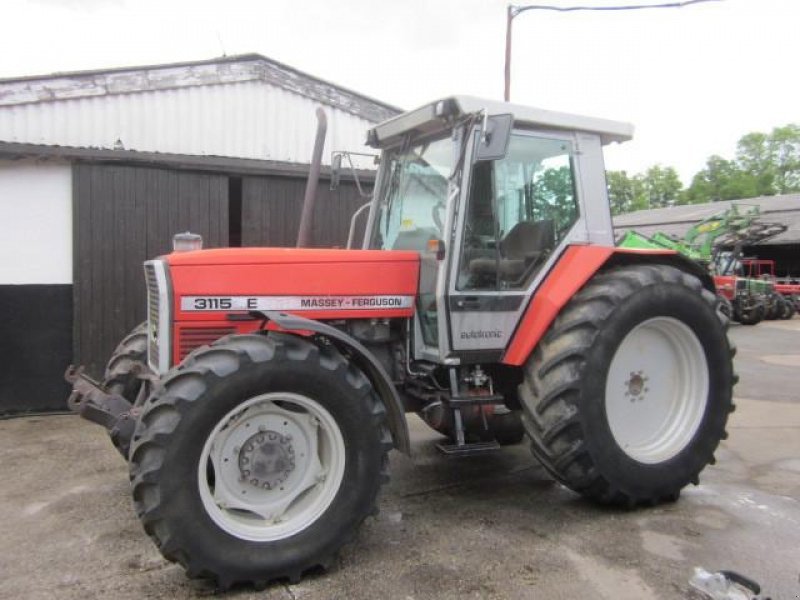

Massey Ferguson MF 3115 (A)

Built: 1990–1993 · Series: 3100er-Serie

More machines from model year 1990

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson MF 3115 (A) belongs to the 3100er series. Production: 1990–1993. The engine delivers 115 hp (84.6 kW), has 6 cylinders, with a displacement of 5,987 cm³. Torque is 413 Nm. Rated speed is 2,200 rpm. The machine is 4,323 mm long, 1,899 mm wide and 2,774 mm high. The unladen weight is 4,530 kg. The wheelbase measures 2,696 mm. Ground clearance is 457 mm. Top speed is 30 km/h. Transmission: 16V/16R or 32V/32R. The engine is water-cooled. Tyres: front 11.00-16 ASF (A: 13.6 R 28 AS), rear 18.4 R 38 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 127 mm. Maximum torque is reached at 1,098 rpm. Construction: unit construction (no separate frame). Injection pressure is 220 bar. The 3100er-Serie series covers 3 models. Rated output within it ranges from 115 to 126 hp; the MF 3115 (A) sits at the bottom of that range with 115 hp. Its immediate neighbours are the MF 3120 (A) above it with 125 hp. Unladen weight within it ranges from 4,530 to 4,805 kg; here the MF 3115 (A) sits at the bottom of that range with 4,530 kg. 1668 Massey Ferguson models across 56 series are on record.

Massey Ferguson 3100 series – the six-cylinder MF 3115 A to MF 3125 A tractors built at the French Beauvais plant with 84.6 to 92.7 kW, around 6 litres of displacement and 413 Nm of torque

The 3100 series was launched in the 1990s at the Massey Ferguson plant in Beauvais, northern France, and comprises the MF 3115 A, MF 3120 A and MF 3125 A models. The type number rises with engine output, while the A suffix marks the series as an updated version with a revised cab and hydraulics; all three models share the same six-cylinder engine at different output stages.

Read on 3 more paragraphs

The register lists 3 versions with 84.6 to 92.7 kW from six-cylinders of 5,985 to 5,987 cc displacement at a rated speed of 2,200 rpm. Maximum torque is 413 Nm. Operating weight ranges from 4,530 to 4,805 kg, length from 4,323 to 4,527 mm, width from 1,899 to 1,943 mm and height from 2,774 to 2,869 mm. All three models run on diesel.

With the 3100 series, Massey Ferguson positioned itself in the upper mid-range segment for mixed farming, between the more compact 3000 series and the larger 6100 series. The shared six-cylinder engine at three output stages allowed fine gradation without a separate engine development; the Beauvais plant built further ranges of the group alongside it, keeping development paths between the model stages short.

On a used purchase, points to check include the condition of the hydraulic pump and PTO, the tightness of the radiator and charge-air ducting, wear on the clutch and gearbox, and rust on the cab floor and mudguards. Spare parts remain well available through the AGCO network for Massey Ferguson.

Sources: SpecCodex register, model data: Massey Ferguson 3100er-Serie, Massey Ferguson (AGCO, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	115 hp (84.6 kW)correct
Rated speed	2,200 rpmcorrect
Torque	413 Nmcorrect
Speed at max. torque	1,098 rpmcorrect
Cylinders	6correct
Displacement	5,987 cm³correct
Bore	100 mmcorrect
Stroke	127 mmcorrect
Injection pressure	220 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,323 mmcorrect
Width	1,899 mmcorrect
Height	2,774 mmcorrect
Wheelbase	2,696 mmcorrect
Ground clearance	457 mmcorrect
Unladen weight	4,530 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	16V/16R or 32V/32Rcorrect
Front tyres	11.00-16 ASF (A: 13.6 R 28 AS)correct
Rear tyres	18.4 R 38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 18.7 kW/t (85 kW / 4.5 t)

Power class: Large (100–180 hp)

Stronger than 72% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF 3115 (A) have?

The Massey Ferguson MF 3115 (A) delivers 115 hp.

How much does the Massey Ferguson MF 3115 (A) weigh?

The unladen weight is 4,530 kg.

What engine does the Massey Ferguson MF 3115 (A) have?

6 cylinders, 5,987 cm³ displacement, Diesel.

How fast does the Massey Ferguson MF 3115 (A) go?

Top speed is 30 km/h.

What are the dimensions of the Massey Ferguson MF 3115 (A)?

4,323 mm × 1,899 mm × 2,774 mm.

When was the Massey Ferguson MF 3115 (A) built?

Production years: 1990–1993.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
