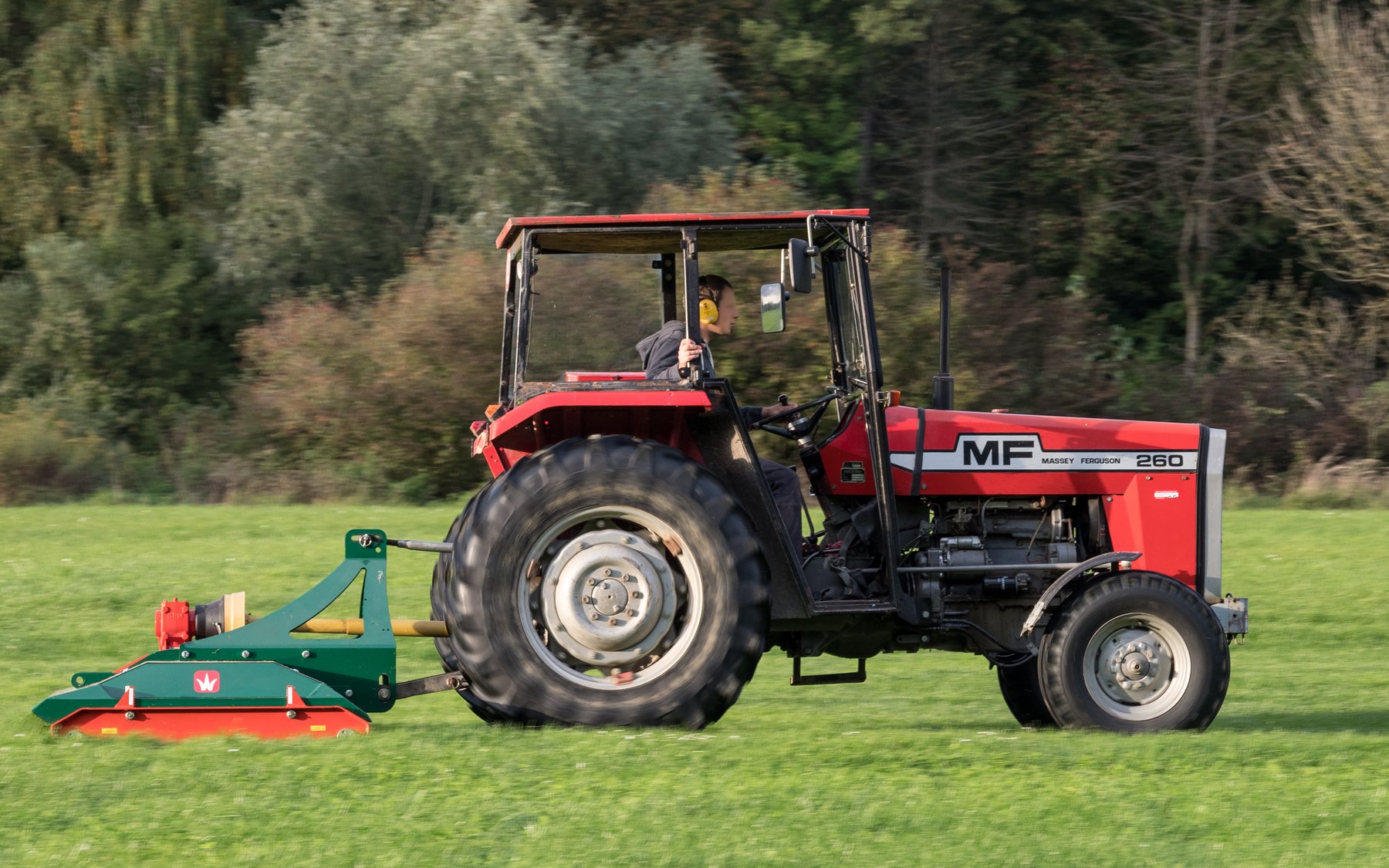

Massey Ferguson MF 260 (41.2 kW)
Built: 1976 · Series: 200er-Baureihe
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 200: the successor generation of the 1970s, 38 to 75 hp, three- and four-cylinder diesels, standard and four-wheel-drive versions, Ferguson System hydraulics
From the mid-1970s, the 200 series replaced the successful 100 generation, carrying its proven concept over to more contemporary cabs and engines without abandoning the underlying philosophy of a simple, rugged working tractor.
Read on 4 more paragraphs
The register lists 13 live models, from the MF 230 to the MF 290, built between 1975 and 1986. Output ranges from 28 to 64.7 kW, or 38 to 75 hp, weight from 1,730 to 3,190 kg, displacement from 2,500 to 5,222 cm3, across three- and four-cylinder engines.
As with the 100 series, the 200 range covered a wide power band and was offered in parallel as standard and four-wheel-drive versions, with the stronger models such as the MF 290 already edging into the subsequent 300 class.
For many mid-sized European farms, the MF 200 was, for decades, the embodiment of the solid all-purpose tractor.
When buying a used 200 series, clutch and mechanical gearbox condition, tightness of the Ferguson System hydraulics at the lift, and rust on panels and mudguards after decades of field use all matter; on four-wheel-drive versions, the condition of the front axle and its joints as well. PTO and three-point hitch follow ISO 730 Category I at 540 rpm, and parts for the widely used Perkins engines remain broadly available today; the hydraulic gear pump in particular wears after high operating hours and its output should be checked.
Sources: SpecCodex register, model data: Massey Ferguson 200er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56 hp (41.2 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 223 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,325 cm³correct |
| Bore | 91.44 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,710 mmcorrect |
|---|---|
| Width | 1,835 mmcorrect |
| Height | 2,330 mmcorrect |
| Wheelbase | 2,193 mmcorrect |
| Ground clearance | 370 mmcorrect |
| Unladen weight | 2,420 kgcorrect |
Drivetrain and chassis
| Drive | Hinterachsecorrect |
|---|---|
| Gearbox | 8V/2R or 12V/4Rcorrect |
| Front tyres | 7.50-16 ASFcorrect |
| Rear tyres | 14.9/13-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 80 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17 kW/t (41 kW / 2.4 t)
Power class: Universal (40–100 hp)
Stronger than 39% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 260 have?
The Massey Ferguson MF 260 delivers 56 hp.
How much does the Massey Ferguson MF 260 weigh?
The unladen weight is 2,420 kg.
What engine does the Massey Ferguson MF 260 have?
4 cylinders, 3,325 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 260 go?
Top speed is 25 km/h.
What are the dimensions of the Massey Ferguson MF 260?
3,710 mm × 1,835 mm × 2,330 mm.
When was the Massey Ferguson MF 260 built?
Production years: 1976.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Wikipedia (retrieved August 2026) · How we check the data
Tractor in 3D section
Turn the model, look inside and click an assembly — each one is explained.
