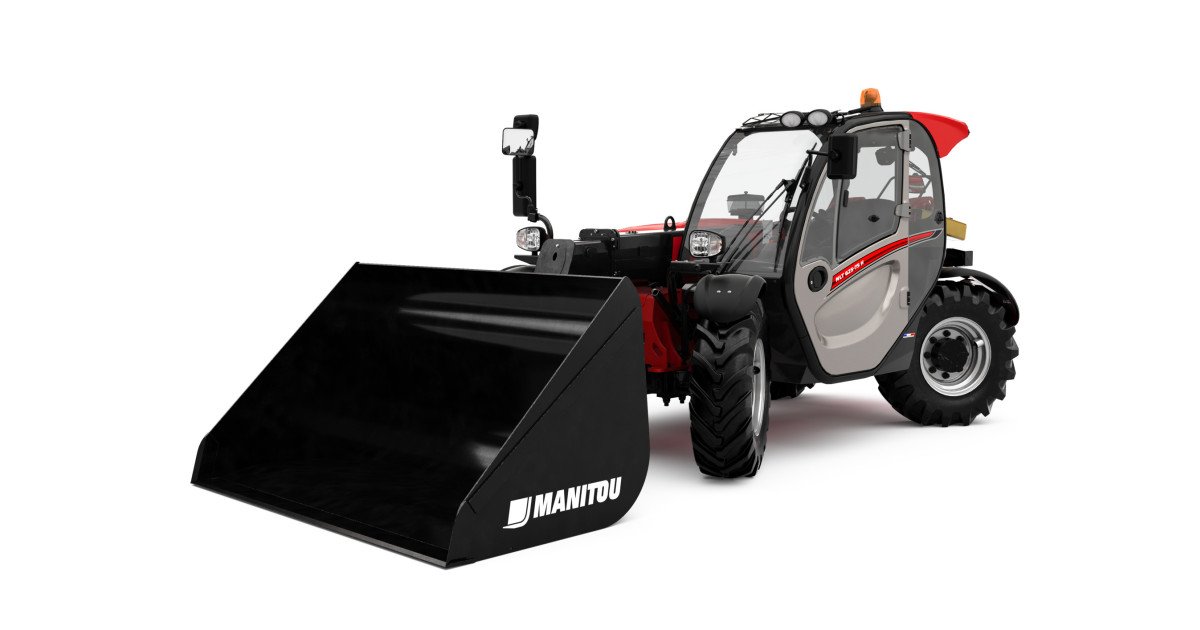

Manitou MLT 625-75 H

Series: Manitou Telescopic Forklift

Source: https://www.manitou.com/pl-PL/nasze-maszyny/ladowarki-telesk

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MLT 625-75 H from Manitou is part of the Manitou Telescopic Forklift series. The engine delivers 76 hp (55.9 kW), has 4 cylinders, with a displacement of 3,343 cm³. The engine comes from Kubota. Torque is 265.1 Nm. The machine is 2,040 mm high. The unladen weight is 4,922 kg. The wheelbase measures 2,347 mm. Ground clearance is 61 mm. Lifting capacity is 2,500 kg. The fuel is diesel. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 113.6 litres. Working pressure is 235 bar. Lift height is 5,900 mm. The engine fitted is the V3307-DI-T-E4B. The mast is a Teleskop type. The Manitou Telescopic Forklift series covers 111 models. Rated output within it ranges from 40.3 to 216.3 hp; the MLT 625-75 H sits in the lower part of that range with 76 hp. Its immediate neighbours are the MLT 523 T below it with 74.8 hp and the MT 1030 S above it with 83.6 hp. Unladen weight within it ranges from 1,154.4 to 28,350 kg; here the MLT 625-75 H sits at the bottom of that range with 4,922 kg. 731 Manitou models across 35 series are on record.

Manitou MT – how lift height and capacity hide inside the model number

Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.

Read on 3 more paragraphs

Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.

Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.

When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.

Sources: SpecCodex register, model data: Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m

Technical data

Engine

Engine makeKubotacorrect
Engine modelV3307-DI-T-E4Bcorrect
Fueldieselcorrect
Power76 hp (55.9 kW)correct
Torque265.1 Nmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,343 cm³correct

Dimensions and weights

Height2,040 mmcorrect
Wheelbase2,347 mmcorrect
Ground clearance61 mmcorrect
Unladen weight4,922 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect

Working data

Lifting capacity2,500 kgcorrect
Lift height5,900 mmcorrect
Mast typetelescopiccorrect
Hydraulic oil capacity113.6 lcorrect
Hydraulic pressure235 barcorrect

Where this model stands

Power-to-weight ratio: 11.4 kW/t (56 kW / 4.9 t)

Stronger than 14% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MLT 625-75 H have?

The Manitou MLT 625-75 H delivers 76 hp.

How much does the Manitou MLT 625-75 H weigh?

The unladen weight is 4,922 kg.

What engine does the Manitou MLT 625-75 H have?

4 cylinders, 3,343 cm³ displacement, Diesel.

What is the load capacity of the Manitou MLT 625-75 H?

Load capacity is 2,500 kg, lift height 5,900 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
