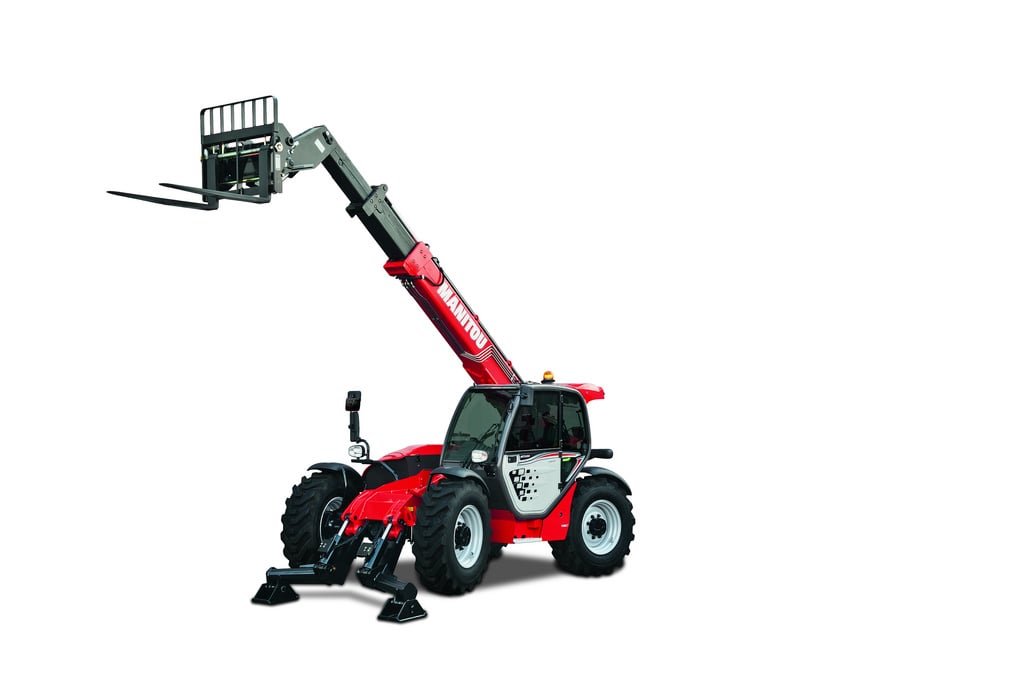

Manitou MT 1030 S

Series: Manitou Telescopic Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/telehandler

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the MT 1030 S, Manitou offers a model from the Manitou Telescopic Forklift series. The engine delivers 83.6 hp (61.5 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Torque is 302.1 Nm. Rated speed is 2,200 rpm. The machine is 2,550 mm high. The unladen weight is 7,470 kg. The wheelbase measures 2,691.4 mm. The tank holds 120.4 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The pump delivers 105.2 l/min. The hydraulic tank holds 125.3 litres. Working pressure is 250 bar. Lift height is 9,980 mm. The engine fitted is the 1104C-44. Tyre size: 400/80-24 156 A8 TL. The Manitou Telescopic Forklift series covers 111 models. Rated output within it ranges from 40.3 to 216.3 hp; the MT 1030 S sits in the lower part of that range with 83.6 hp. Its immediate neighbours are the MT 732 EASY below it with 76 hp and the MT 1436 R above it with 87.1 hp. Unladen weight within it ranges from 1,154.4 to 28,350 kg; here the MT 1030 S sits in the lower part of that range with 7,470 kg. 731 Manitou models across 35 series are on record.

Manitou MT – how lift height and capacity hide inside the model number

Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.

Read on 3 more paragraphs

Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.

Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.

When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.

Sources: SpecCodex register, model data: Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m

Technical data

Engine

Engine model1104C-44correct
Power83.6 hp (61.5 kW)correct
Rated speed2,200 rpmcorrect
Torque302.1 Nmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct

Dimensions and weights

Height2,550 mmcorrect
Wheelbase2,691.4 mmcorrect
Unladen weight7,470 kgcorrect

Drivetrain and chassis

Gearbox typetorque convertorcorrect
Forward gears4correct
Reverse gears4correct
Tyre size400/80-24 156 A8 TLcorrect

Working data

Lift height9,980 mmcorrect
Pump flow105.2 l/mincorrect
Hydraulic oil capacity125.3 lcorrect
Hydraulic pressure250 barcorrect
Fuel tank capacity120.4 lcorrect

More machines with this engine (Perkins 1104C-44, 74)

Where this model stands

Power-to-weight ratio: 8.2 kW/t (62 kW / 7.5 t)

Stronger than 23% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MT 1030 S have?

The Manitou MT 1030 S delivers 83.6 hp.

How much does the Manitou MT 1030 S weigh?

The unladen weight is 7,470 kg.

What engine does the Manitou MT 1030 S have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
