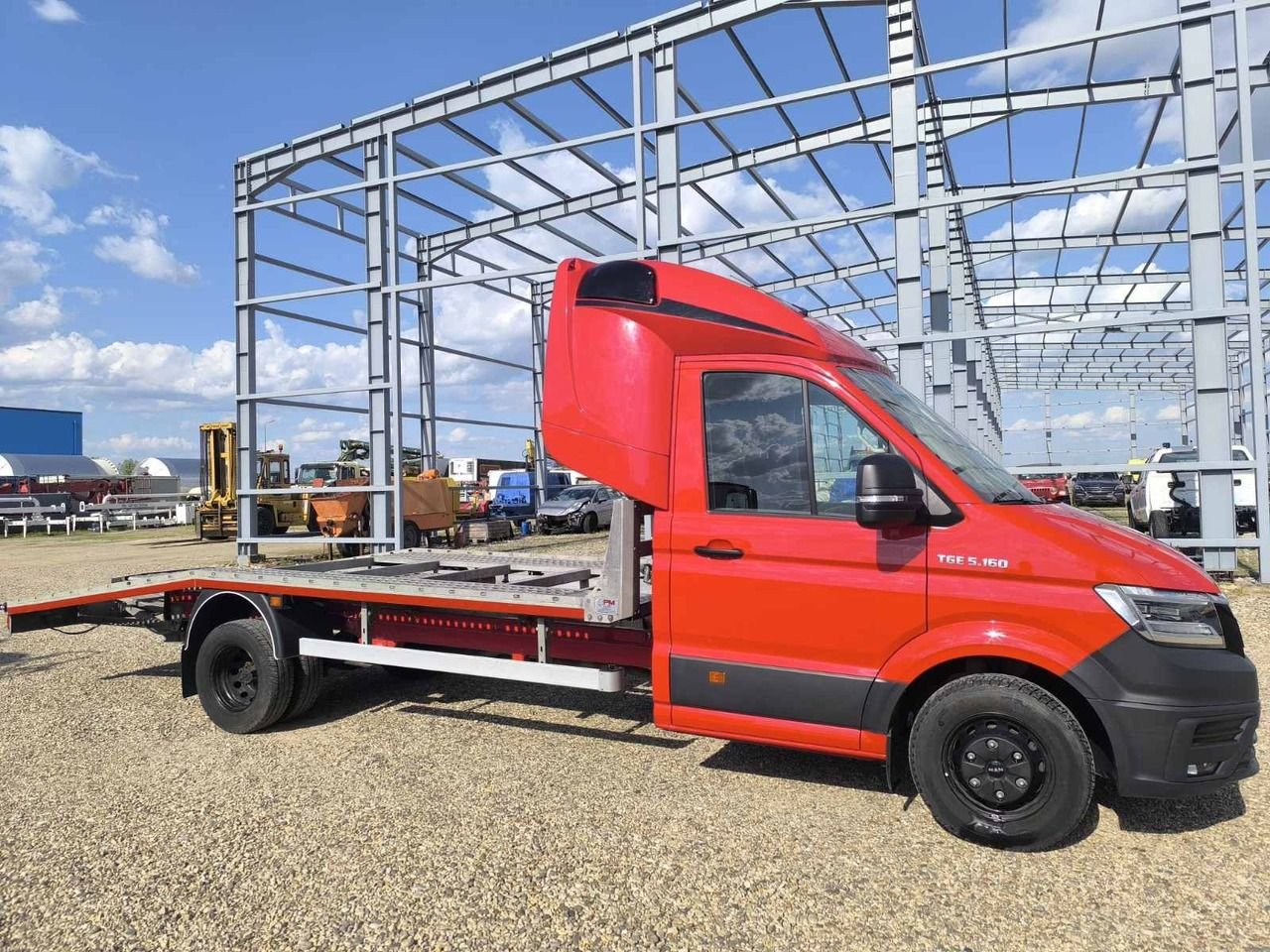

MAN TGE 5.160 – specifications

Built: 2024 · Series: TGE

Data for the version built 2024 · Data origin: Official register · sources

More machines from model year 2024

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TGE 5.160 from MAN is part of the TGE series. Production: 2024. The engine has 4 cylinders, with a displacement of 1,968 cm³. The vehicle is 5,760 mm long and 2,050 mm wide. The unladen weight is 2,647 kg. The wheelbase measures 3,800 mm. Top speed is 90 km/h. The gross vehicle weight is 3,500 kg. The vehicle runs on 6 wheels. The TGE series covers 9 models. Unladen weight within it ranges from 2,397 to 3,140 kg; the TGE 5.160 sits in the lower part of that range with 2,647 kg. Its immediate neighbours are the 4.180 4X4 SB below it with 2,399 kg and the 3,180 4x4 SB above it with 2,800 kg. Gross vehicle weight within it ranges from 3,500 to 4,000 kg; here the TGE 5.160 sits at the bottom of that range with 3,500 kg. 5237 MAN models across 68 series are on record.

MAN TGE – van series: based on the VW Crafter, 2.0-litre four-cylinder engine at 130 kW, variants from TGE 3.180 to TGE 5.180 plus 4x4 versions, gross weights from 3.5 to 4 tonnes

The MAN TGE has been MAN's answer in the van segment since 2017, built on the VW Crafter platform, with which it shares engines and body dimensions; it is manufactured at MAN's plant in Września, Poland. The naming logic follows the VW scheme: the first digit denotes the payload class, the following number the engine output in horsepower divided by ten, so the TGE 3.180 is the 3.0-tonne class with around 180 hp and the TGE 5.180 the 5.0-tonne class with the same output; L3H2 and L3H3 denote wheelbase and roof-height combinations, and SB refers to four-wheel-drive chassis.

Read on 3 more paragraphs

The register lists 9 variants here, all at 130 kW from four-cylinder engines displacing 1,968 cm³, kerb weights from 2,397 to 3,140 kg and gross weights from 3,500 to 4,000 kg. Lengths range from 5,760 to around 7,114 mm, widths from 2,040 to 2,100 mm.

The TGE competes against the Mercedes Sprinter, Ford Transit and its twin the VW Crafter, and in fleet business it benefits from the MAN service network already used by haulage firms running the brand's trucks.

When buying used, check the condition of the two-litre turbodiesel and its exhaust after-treatment, the mileage on the dual-clutch gearbox on suitably equipped vans, and, on the 4x4 variants, the transfer-case components; spare parts run through either MAN or VW commercial-vehicle dealers.

Sources: SpecCodex register, model data: MAN TGE, MAN Truck & Bus (manufacturer)

Technical data

Engine

Cylinders4correct
Displacement1,968 cm³correct

Dimensions and weights

Length5,760 mmcorrect
Width2,050 mmcorrect
Wheelbase3,800 mmcorrect
Unladen weight2,647 kg (example vehicle as registered, incl. body – not a model value)correct
Gross vehicle weight3,500 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Used listings – figures from public listings

Between June and October 2026, speccodex recorded 8 public used-machine listings for MAN TGE 5.160 on 2 platforms. Asking prices ranged from €41,924 to €99,840 (median €50,538), years of manufacture between 2000 and 2026.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 15 Nov 2026. Sellers usually do not state whether prices are net or gross.

Frequently asked questions

What is the gross vehicle weight of the MAN TGE 5.160?

3,500 kg.

What engine does the MAN TGE 5.160 have?

4 cylinders, 1,968 cm³ displacement.

How fast does the MAN TGE 5.160 go?

Top speed is 90 km/h.

What are the dimensions of the MAN TGE 5.160?

5,760 mm × 2,050 mm.

When was the MAN TGE 5.160 built?

Production years: 2024.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
