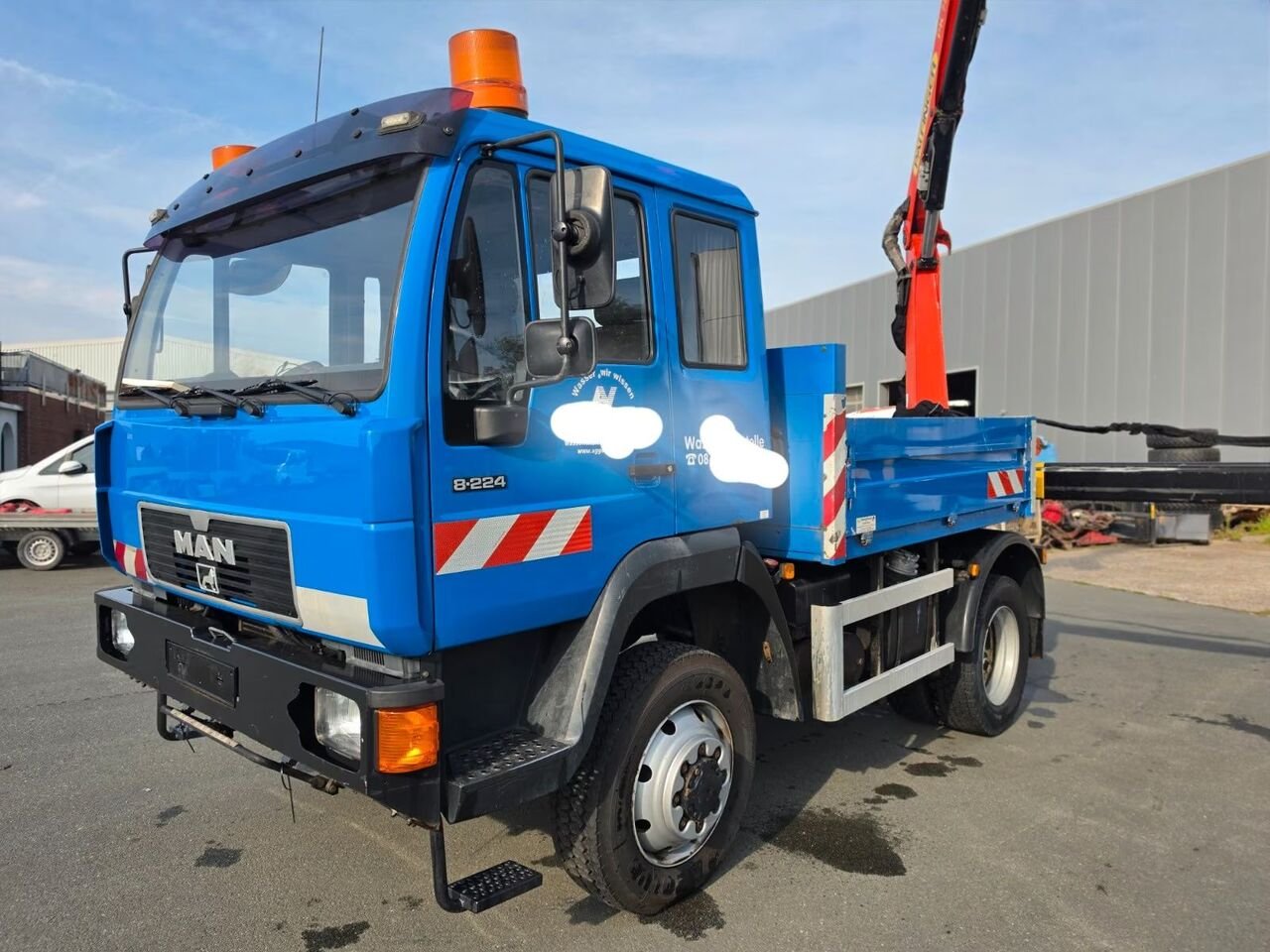

MAN 8.224 F/460
Built: 1997 · Series: 8.224
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The MAN 8.224 F/460 was built in 1997 and is thus one of the oldest vehicles of the 8.224 group. The record gives a width of 2,300 mm, a kerb weight of 5,200 kg and a permissible gross weight of 8,600 kg; no length is recorded. The six-cylinder diesel has a displacement of 6,870 cm³ and 162 kW, the 224 in the name stands for the PS figure and the 460 for the wheelbase in centimetres.
The large wheelbase is meant for long box bodies which, at a low gross weight, mainly take light, bulky goods. Furniture dealers, mattress makers and textile distributors were among the typical buyers. Thanks to the strong engine, trailer operation was also possible, which markedly widened a firm's transport capacity.
The width of 2,300 mm indicates a narrow version, which has advantages in city centres. Buyers of a vehicle of this age should pay special attention to rust on frame and body, to the brake system and to the age of the tires.
MAN 8.224 – classic distribution truck of the 8-tonne class with about 224 hp: 162 kW, six-cylinder of 6,870 cm³, gross vehicle weight 8,600 kg, lengths from 6,330 to 9,500 mm
The 8.224 stands in the same MAN type logic for the 8-tonne weight class with a notably strong engine of about 224 hp – a power-to-weight ratio that marks this version out for brisk distribution work and light construction-site use. The versions carried in the register range from the base F through the lighter FL version to chassis with a long wheelbase (L/490) and the version LLC/530.
Read on 3 more paragraphs
The register lists here 8 versions with power of throughout 162 kW, a displacement of 6,870 cm³ from six-cylinders, unladen weights from 4,610 to 7,180 kg at a gross vehicle weight of 8,600 kg, lengths from 6,330 to 9,500 mm and widths from 2,300 to 2,600 mm.
With the strong six-cylinder in the 8-tonne class, the 8.224 was suited to tasks where pulling power and payload both mattered, such as tipper and crane bodies in construction and municipal use, where the combination of engine power and comparatively low gross weight is still valued today.
On a used example of these older chassis, rust on the frame and brake lines counts, along with the condition of the clutch and gearbox, the seal of the engine and injection pump, and on tipper or crane versions the hydraulic system and its connections to the chassis; parts are now only available through specialist dealers for classic MAN commercial vehicles.
Sources: SpecCodex register, model data: MAN 8.224, MAN Truck & Bus (manufacturer)
Technical data
Engine
| Power | 162 kWcorrect |
|---|---|
| Displacement | 6,870 cm³correct |
Dimensions and weights
| Width | 2,300 mmcorrect |
|---|---|
| Unladen weight | 5,200 kgcorrect |
| Gross vehicle weight | 8,600 kgcorrect |
Where this model stands
Power-to-weight ratio: 31.2 kW/t (162 kW / 5.2 t)
Stronger than 20% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the MAN 8.224 F/460 have?
The MAN 8.224 F/460 delivers 162 kW.
How much does the MAN 8.224 F/460 weigh?
The unladen weight is 5,200 kg.
What is the gross vehicle weight of the MAN 8.224 F/460?
8,600 kg.
What engine does the MAN 8.224 F/460 have?
6,870 cm³ displacement.
When was the MAN 8.224 F/460 built?
Production years: 1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
