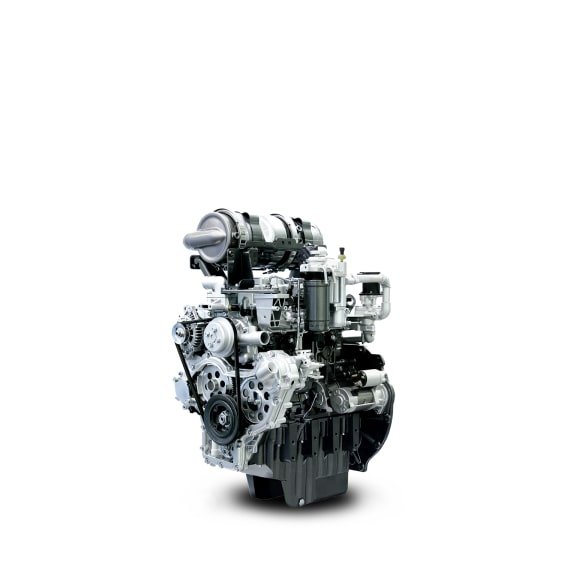

LS Mtron S4QL-D
Built: 2011-2012 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
LS Mtron – other nonroad diesel engines: the collective page of the L3 range outside the named models, South Korean maker from the LS Group, 22 to 54 kW from three- and four-cylinders, Tier 3 to Tier 4 Final
LS Mtron is a South Korean company within the LS Group, formed in 2005 from the split of the LG conglomerate; the company builds farm machinery, construction-machinery components and its own diesel engines, among others for the group's own LS tractors. This page gathers the engines the register could not assign to a named range; model designations such as L3C19-T5 or L3CRV-T10A combine cylinder count (L3 for three-cylinder, L4 for four-cylinder), a displacement figure (19 for 1.9 litres) and a code for the version, while the EPA engine-family codes such as NLGCL01.9L3C encode displacement in litres and cylinder count a second time.
Read on 3 more paragraphs
The register lists here 53 versions with 22 to 54 kW rated output at 2,300 to 2,600 rpm, from three- to four-cylinders with 88 to 90 mm bore and 95 to 105 mm stroke, torques from 102 to 276 Nm. Of the 42 turbocharged versions, all carry a waste-gate turbocharger, so the remainder are naturally aspirated; injection is direct on 48 of the 53 engines, indirect on 5. Among the emission stages, Tier 4 (Final or Phase-in) dominates with 50 ahead of Interim Tier 4 with 3 versions; model years run from 2011 to 2026, and the power categories up to 37 kW and 37 to 56 kW split the field almost evenly.
Engines of this size class drive mini excavators, small wheel loaders, tractors and stationary units; LS Mtron supplies both its own farm- and construction-machinery production and OEM customers in the lower to mid power segment.
On a used purchase, operating hours count, the condition of the turbocharger on the turbocharged versions, the injection system and its injectors or nozzles, the tightness of crankshaft seals and valve cover, and on the Tier 4 Final engines the exhaust aftertreatment; spares run through the LS Mtron dealer network.
Sources: Kennwerte der Modelle LS Mtron (weitere Nonroad-Dieselmotoren), LS Mtron (Hersteller)
Technical data
Engine
| Engine code | S4QL-Dcorrect |
|---|---|
| Engine family | CLGCL02.5S4Dcorrect |
| Engine families | CLGCL02.5S4D; BLGCL02.5S4Dcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 31 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 2,600 rpmcorrect |
| Maximum torque | 131.5 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 88 mmcorrect |
| Stroke | 103 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | S4QL-Dcorrect |
|---|---|
| Built from | 2011correct |
| Built to | 2012correct |
| Model year from | 2011correct |
| Model year to | 2012correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the LS Mtron S4QL-D have?
The LS Mtron S4QL-D delivers 31 kW.
When was the LS Mtron S4QL-D built?
Production years: 2011-2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
