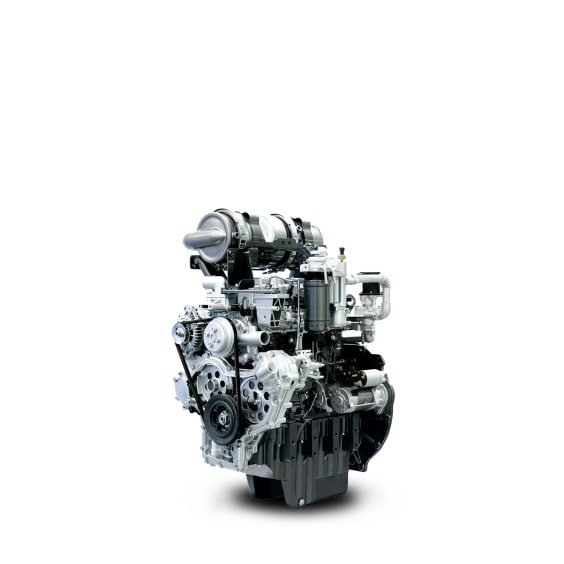

LS Mtron L3C19-D1

Built: 2018-2026 · Series: Other models

Source: https://www.lsmtron.com/kr/ko/business/tractor

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L3C19-D1 comes from LS Mtron. Production: 2018-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 28 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the LS Mtron range ranges from 22 to 54 kW; the L3C19-D1 sits in the lower part of that range with 28 kW. Its immediate neighbours are the S4QS below it with 26 kW and the L3C19-T4A above it with 30 kW. 53 LS Mtron models are on record. The model is listed under Non-road diesel engines. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine codeL3C19-D1correct
Engine familyPLGCL01.9L3Dcorrect
Engine familiesLLGCL01.9L3D; KLGCL01.9L3D; JLGCL01.9L3Dcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output28 kWcorrect
Power band19<=kW<37correct
Rated speed2,600 rpmcorrect
Maximum torque120 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore88 mmcorrect
Stroke103 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionL3C19-D1correct
Built from2018correct
Built to2020correct
Model year from2018correct
Model year to2026correct
Sales regionUSA excluding Californiacorrect

Frequently asked questions

How much power does the LS Mtron L3C19-D1 have?

The LS Mtron L3C19-D1 delivers 28 kW.

When was the LS Mtron L3C19-D1 built?

Production years: 2018-2026.
